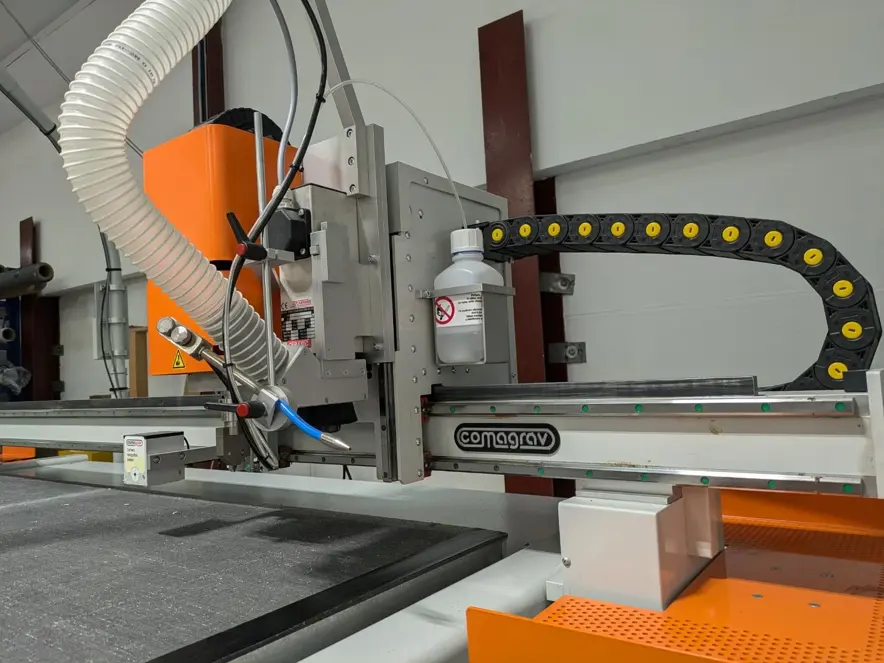

Digital Press
Table Size: 2120 x 3400 mm
PILOT A+, PC, camera system, vacuum /w 1 pump, Cut2DPro.
AC servo drives and planetary gearboxes
Zone Vacuum table and 1 vacuum blower (Becker)
Maximum speed: 1150 mm/s
Maximum acceleration: 3000 mm/s2
6 Zones Vacuum Bed
Recognition camera system for cutting of printed materials.
Sophisticated CNC controller PILOT Advanced for maximum dynamics and speed. Prepared for installation of oscillating knive heads, universal tangential heads, routing spindle and more. Automatic Z Sensor, PC included.
Additional Noise Reduction for Vacuum Pump
Spray cooling System Profi (SPRAY_PRO)
DIGI professional Spindle 730 W/24000 (RPM D_S_730W24T) with ramp and dust collector
Professional routing and engraving spindle for DIGI
3-phase spindle with ER20 tooling (up to 12 mm diameter).
Ceramic bearings for professional and reliable work up to 24,000 rpm, hardened and balanced shaft.
Dust collector with flexible hose and steel ramp to cover complete working area. Includes one
routing tool, 3 x collets (3,4,6mm). Dust collector Included
Tangential Module for Universal Tool U1 (Module A) - (MODA_U1) pneumatic parking, AC servo, tangential rotation, position for insert of U1 tools
Module for universal tools U1
AC servo tangentially controlled panel for insertion of U1 tools. High dynamic cutting.
Use Kiss-cut, V-cut and other U1 cutting devices.
Additional Becker vacuum pump for DIGI 5,5 kW, mid-range vacuum, incl. filter, hose
Additional mid-range vacuum pump, power 5,5 kW, max. flow rate 390 m3/h, maximum vacuum 315mbar rel.
Routing pad 2mm, size 1 x 1 m (RP20)
For table protection during Routing operation
Kiss-cut, Knife, Knife with pressure foot, Knife thin, Knife HSS, Pen
Set of 6 tools equipped with knives for U1 tooling system
Kiss-cut tool with knife
Knife tool with E10 knife
Knife tool with pressure foot with E11 knife
Knife tool thin with FN8 knife
Knife tool HSS with HSS knives 50pcs
Set of tools for plastics, aluminum and sandwiches
Set of microcarbide tools and routing pads for flatbed cutter
Router bits: A320, A330, A440, A660B, MP320, MP330, MP440, MP660B, B440, B660, D330, D440, D660
Ballnose tools: BN3, BN6
Engraving tools: G44506, G44515
Routing pad 1mm thickness - 1x6 meters
Routing pad 2mm thickness - 1x6 meters
