Machine Description
Brochure size up to 100 pages (80 g/m² paper).
Paper formats DIN A5, A4, A3, A3+, SRA3 (and any intermediate format).
Brochure formats DIN A4, A5, A6 (and any intermediate format).
Envelope cardboard up to approx. 300 g/m².
2 stapling heads 2 with magazine control.
No paper thickness adjustment required.
Stapling head positions in mm 30 x 50 x 80 x 50 x 30.
Clinchers (movable clinchers).
Clamp types ring clamps Ri 26/6.
Staples 26/6, 26/8, 26/8S.
Production capacity of up to 2,000 brochures/hour.
Electric shed delivery, stroke adjustable.
Block stapling online, up to 40 sheets.
Front cutter.
The pressing station before the trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure safe paper transport even of thick booklets, adjustable belt follow-up always ensures exact contact with the stop, even with booklets that come in at an angle, format change in 30 seconds..
.
Brochure size up to 100 pages (80 g/m² paper).
Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm.
Production capacity of up to 2,000 brochures/hour.
Connection 230 V, 50 Hz, 600 W...

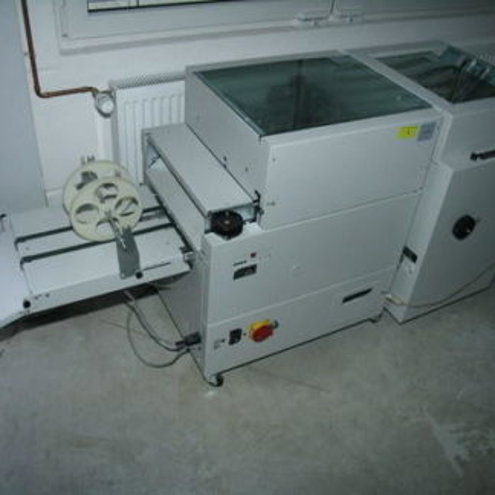

The Nagel Foldnak 8 is a high-performance booklet machine designed for efficient brochure production in commercial printing environments. Part of the Booklet machines category, this model excels in creating professional-quality booklets with precise stapling and trimming capabilities. Key features include automatic stapling, adjustable format settings, and high-speed production, making it ideal for producing catalogs, manuals, reports, and marketing materials. The Foldnak 8 offers reliable performance with minimal setup time, ensuring consistent output quality and operational efficiency for medium to large print runs.
Key Technical Aspects:
Dimensions and Specifications : The Foldnak 8 achieves a production capacity of up to 2,000 brochures per hour with a power connection of 230 V, 50 Hz, and 600 W. It supports brochure sizes up to 100 pages (80 g/m² paper) and handles paper formats including DIN A5, A4, A3, A3+, and SRA3, as well as any intermediate format. Brochure formats range from DIN A4 to A6, with a minimum size of 10 cm. The machine includes two stapling heads with magazine control and adjustable stapling head positions at 30, 50, and 80 mm. Format changes can be completed in 30 seconds.
Paper Handling : The Foldnak 8 processes paper weights from standard 80 g/m² up to 300 g/m² for envelope cardboard. It features movable clinchers, overhead conveyor belts for secure transport of thick booklets, and an adjustable belt follow-up system to ensure precise alignment. A pressing station before trimming guarantees flat brochures with sharp folds, while the front cutter and electric shed delivery with adjustable stroke enhance finishing precision.
| Model | Nagel-Foldnak 8 |
|---|---|
| Reference Number | 7093 |
| Manufacturer | Nagel |
| Year | 2008 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Bahnhofstraße 13, 16818 Dabergotz, Germany |
