Machine Description

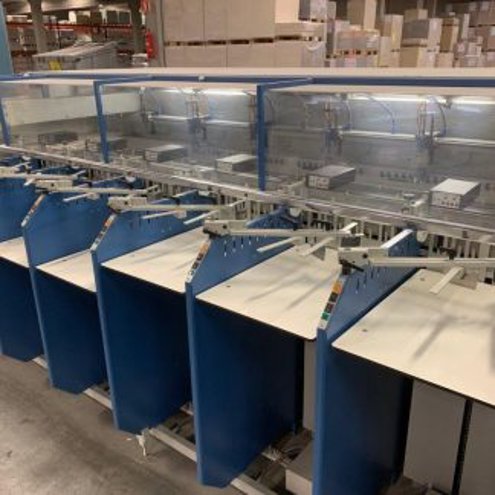

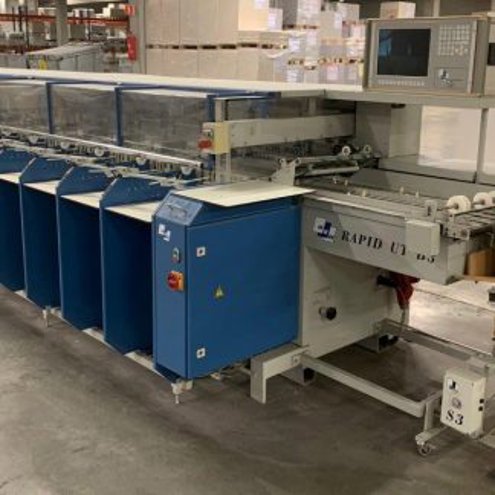

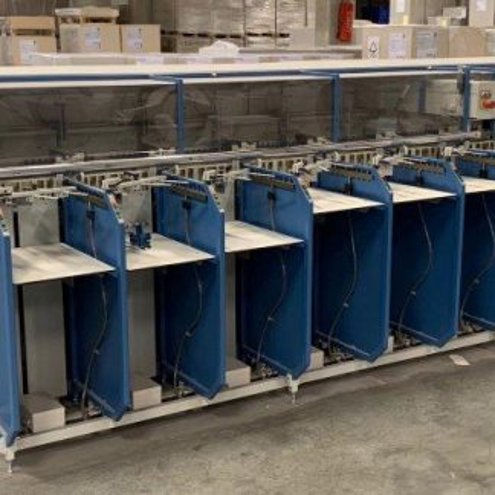

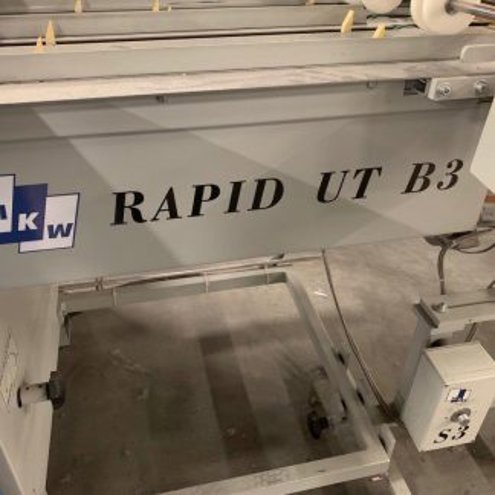

Collating machine / brochure production MKW Rapid UT 12/B3/GS + SFT 350.
Year of manufacture: 2008, Format: min. 10 x 14 cm, max. 35 x 50 cm.
.
Equipment: 12 stations gathering machine.
TFT touch operation.
Circulation toothed belt table with tandem function 1:1 and 2:1 timing.
Possibility of insertion at any station.
Carton change function at any station.
Adjustable tilting suction cups.
Side and front blowing air.
Max. stack height 700 mm.
Paper weight from 14 – 1000 g/m².
Self-measuring electronic double and missing sheet control.
.
Stitching-folding-cutting unit SFT 350.
Quick format adjustment.
Front trim with 6cm minimum trimming via upper and lower.
blades Blow-off air on the blade.
Adjustable pressing device.
2 stitching heads Hohner 48/S.
.
PC-controlled collating with the MKW RAPID® UT series.
The circulating table principle enables tandem production and guarantees.
safe and smooth paper transport..
.
Tandem Function:.
The tandem system is activated by a simple switch on the control panel..
The parallel use of two stations with the same pressure enables up to 75%.
higher production output..
.
Single function.
Standard collation in 1:1 operation.
with high page counts..
.
MKW RAPID UT · Control System.
The use of state-of-the-art industrial PC technology ensures precise.
system control, digitally monitors assembly.
, and allows you to connect to your company's production.
control system..
The operating system with a high-quality TFT display allows for.
straightforward machine operation. All settings are made.
using logically structured menus that.
are easily accessed on the display. Operator guidance and color-coded status indicators.
ensure optimal production processes..
.
Saving and retrieving job configurations in seconds.
Combinable production counters for exact print runs and separation.
Standard special functions programmable at any station.
Standard quality control through missing and double sheet monitoring at each station.
.
Automatic rejection of faulty sets for non-stop operation.
Dynamic station selection for shortest setup times during job changes...
The MKW Rapid UT-12 B3 GS is a high-performance booklet machine designed for efficient collating and brochure production. As a 12-station gathering machine, it excels in producing multi-page booklets with precision and speed, making it ideal for commercial printing, publishing, and finishing operations. Key features include a TFT touch operation interface, tandem function for increased productivity, and advanced quality control systems such as electronic double and missing sheet detection. The integrated SFT 350 stitching-folding-cutting unit ensures seamless finishing with quick format adjustments and reliable trimming. This machine is particularly suited for high-volume production environments requiring flexibility in paper weight, stack height, and job configurations.
Key Technical Aspects:
Dimensions and Specifications : The MKW Rapid UT-12 B3 GS, manufactured in 2008, supports a format range of min. 10 x 14 cm to max. 35 x 50 cm. It features a maximum stack height of 700 mm and accommodates paper weights from 14 to 1000 g/m². The machine includes 12 collating stations with a circulation toothed belt table, enabling tandem production with 1:1 and 2:1 timing for enhanced output. The SFT 350 unit provides front trimming with a minimum 6 cm trim via upper and lower blades, along with adjustable pressing and two Hohner 48/S stitching heads.
Paper Handling : The machine offers versatile paper handling capabilities, including adjustable tilting suction cups, side and front blowing air for smooth transport, and carton change functionality at any station. It supports insertion at any station and features self-measuring electronic double and missing sheet control for quality assurance. The tandem function allows parallel use of two stations, increasing production output by up to 75%. Dynamic station selection ensures minimal setup times during job changes.
| Model | MKW-Rapid UT-12 B3 GS |
|---|---|
| Reference Number | 7400 |
| Manufacturer | MKW |
| Year | 2008 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Bahnhofstraße 13, 16818 Dabergotz, Germany |
