Machine Description

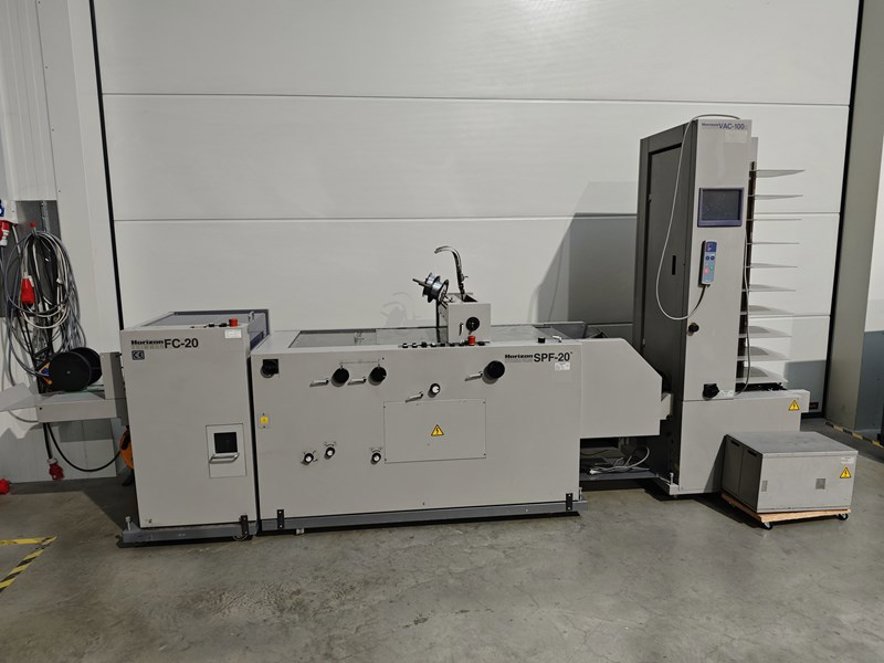

Horizon VAC-100a SPF-20 FC-20 Booklet Making System, used.
.
The Horizon VAC-100a SPF-20 FC-20 system is a powerful solution for professional booklet production, combining collating, stitching, folding, and front trimming in one efficient process..
.
.
Special features:.
- Number of collating stations: 10.

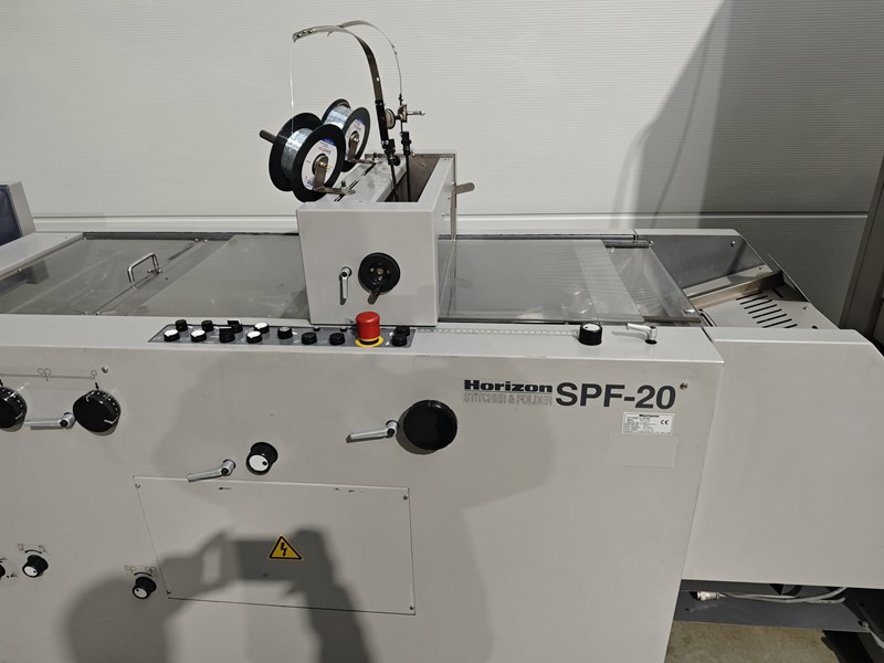

- Versatile stitching options: Saddle, corner, and side stitching possible.
- Expandable stitching heads: Upgradable from 2 to up to 4 stitching heads for increased flexibility.

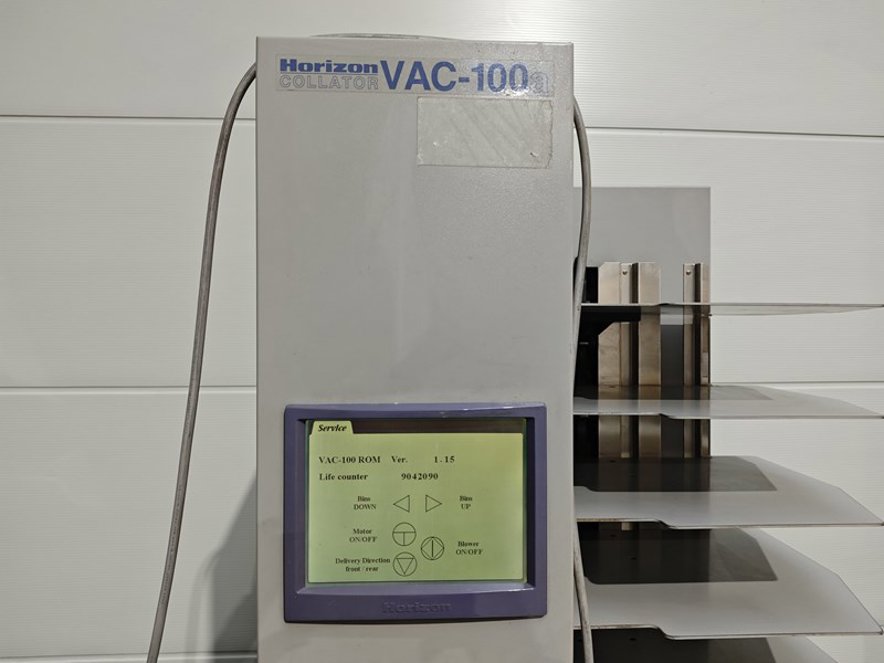

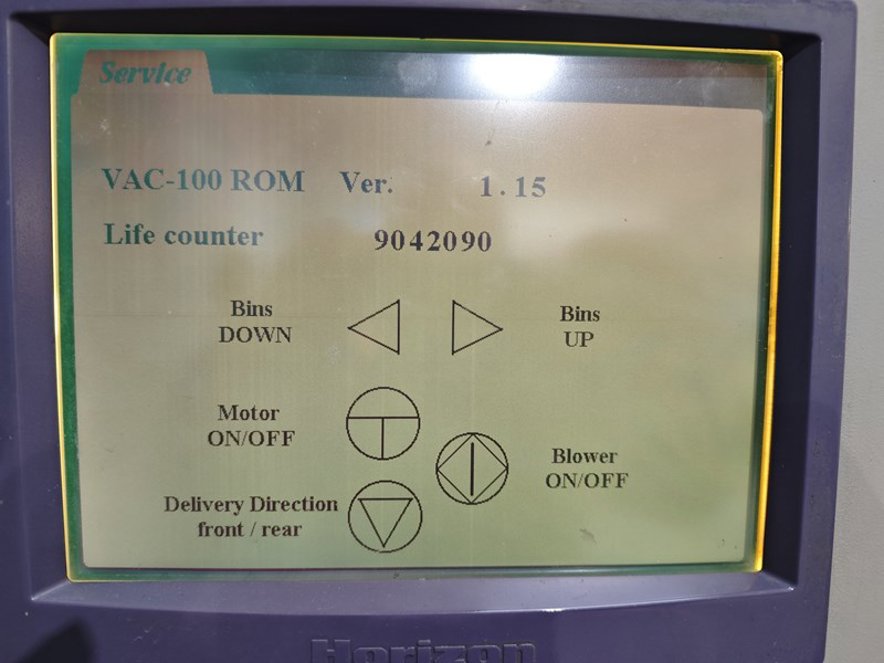

- Touch & Work: Intuitive operation thanks to user-friendly technology.
- Programmable memory: 9 memory slots for repeat jobs.
- Precise error control: Prevention of miss, double-feed, and jam problems.
.
.
Technical specifications:.
- Paper size: max. 500 x 350 mm; min. 148 x 120 mm.
- Booklet size: max. 230 x 320 mm; min. 85 x 98 mm.
- Paper weight: 40-250 g/m².
- Processing thickness: 2-20 sheets (80 g/m²).
- Trimming thickness: 4-80 pages (80 g/m²).

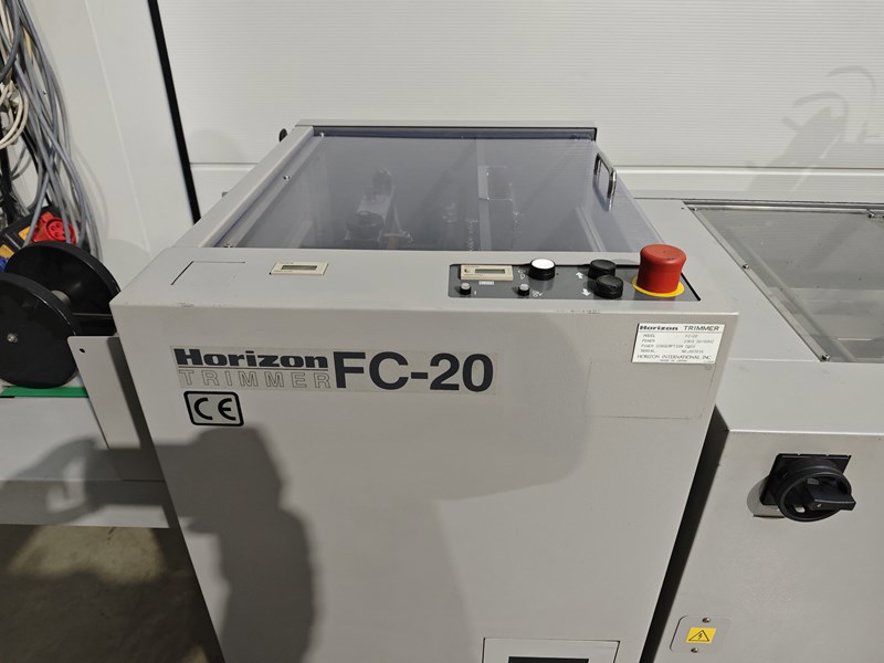

- Face trim: max. 15 mm.
- Production speed: max. 3,500 booklets/h.
- Collating performance: up to 9,500 sets/h.
- Loading capacity per station: 55 mm.
- Power supply: 230V; 50Hz.
- Total power consumption: approx. 1.86 kW...
The Horizon VAC-100a SPF-20 FC-20 is a professional booklet making system designed for high-efficiency production of booklets, combining collating, stitching, folding, and front trimming in a single integrated process. Belonging to the Booklet machines category, this machine offers versatile stitching options, including saddle, corner, and side stitching, along with expandable stitching heads for enhanced flexibility. Key features include intuitive Touch & Work operation, programmable memory for repeat jobs, and precise error control to prevent misfeeds and jams. Ideal for print shops, publishing houses, and commercial production environments, the VAC-100a delivers reliable performance with a maximum output of 3,500 booklets per hour, making it a robust solution for medium to high-volume booklet production.
Key Technical Aspects:
Dimensions and Specifications : The Horizon VAC-100a operates on a 230V, 50Hz power supply with a total power consumption of approximately 1.86 kW. It achieves a production speed of up to 3,500 booklets per hour and a collating performance of up to 9,500 sets per hour. The machine includes 10 collating stations, each with a loading capacity of 55 mm, and offers 9 programmable memory slots for repeat jobs.
Paper Handling : The system accommodates paper sizes ranging from 148 x 120 mm to a maximum of 500 x 350 mm, with booklet sizes spanning from 85 x 98 mm to 230 x 320 mm. It supports paper weights between 40-250 g/m² and can process thicknesses of 2-20 sheets (80 g/m²) for collating and 4-80 pages (80 g/m²) for trimming, with a maximum face trim of 15 mm.
| Model | Horizon- VAC-100a |
|---|---|
| Reference Number | 23079 |
| Manufacturer | Horizon |
| Year | 1998 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
