Machine Description

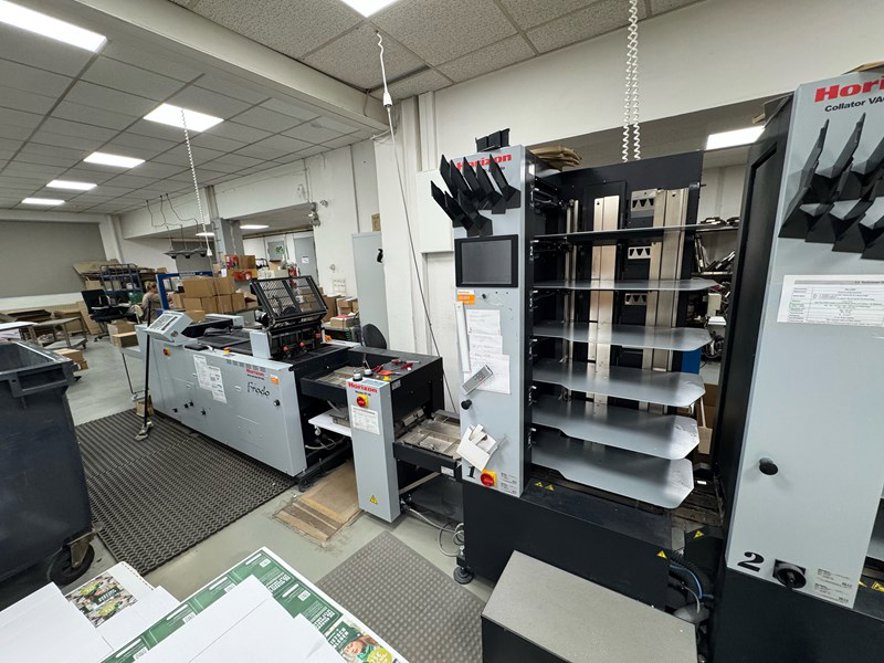

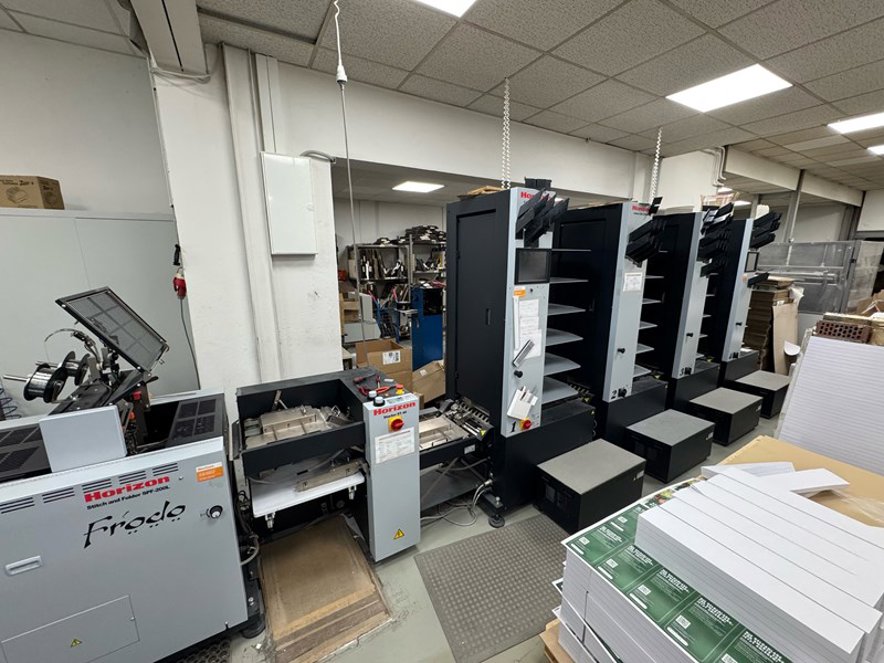

Horizon Booklet Production Line SPF-200L, FC-200L, VAC-600Ha, VAC-600Hm, VAC-600Hm, VAC-600Hc.
.
The Horizon booklet production line featuring the models SPF-200L, FC-200L, is a state-of-the-art, modular solution for the efficient production of saddle-stitched booklets – including A4 landscape format. The system is suitable for both offset and digital printing and is especially designed for small to medium print runs. Thanks to the combination of collating machines (VAC-600Ha, VAC-600Hm, VAC-600Hm, VAC-600Hc), booklet maker (SPF-200L), and front trimmer (FC-200L), the line offers maximum flexibility and productivity in post-press processing..
.
.
Special Features.
- Automated Settings: All format and production parameters are automatically set via a large, intuitive color touchscreen – including fold roller gap..
- A4 Landscape Capability: The SPF-200L enables the production of booklets in A4 landscape format, making it particularly versatile..
- Modular Expandability: The VAC-600 collating towers are modularly expandable from 6 up to 60 stations and allow non-stop operation through double-cycle and insert programs..
- High Speed: Up to 9,500 cycles/hour for collating and up to 4,000 booklets/hour for stitching (3,500 in landscape format)..
- Flexible Configuration: Can be combined with additional Horizon feeders and digital print feeders for hybrid production lines..
- Versatile Formats: Processes formats from at least 148 x 120 mm up to a maximum of 610 x 350 mm (SPF-200L)..
- Robust Wire Processing: Various stitching heads available for different wire gauges and loop stitching..
- Easy Operation: Large touchscreens on all main modules for rapid setup and error diagnosis..
.
.
Technical Specifications.
- SPF-200L Format Range (min-max): min. 180 x 105 mm, max. 610 x 350 mm.
- SPF-200L Speed: up to 4,000 cycles/h (3,500 cycles/h landscape).
- SPF-200L Features: A4 landscape, fully automatic.
- FC-200L Format Range (min-max): Front trimmer, integrated.
- FC-200L Features: Final trimming.
- VAC-600a/c Format Range (min-max): min. 148 x 120 mm, max. 500 x 350 mm.
- VAC-600a/c Speed: up to 9,500 cycles/h.
- VAC-600a/c Number of Stations: 6–60.
- VAC-600a/c Features: Modularly expandable, non-stop.
- Booklet Thickness: up to 100 pages (depending on paper).
- VAC-600 Loading Capacity: 55 mm per station.
- Weight SPF-200L with FC-200L: approx. 831 kg.
- Machine Dimensions SPF-200L with FC-200L: 4,271 x 810 x 1,250 mm (L x W x H).
- Power Supply: 230 V, 5.3 A; 1.0 kW (SPF-200L)...
The Horizon SPF-200L is a high-performance booklet production machine designed for efficient saddle-stitched booklet manufacturing, ideal for small to medium print runs. Part of Horizon's modular booklet production line, this system integrates seamlessly with the FC-200L front trimmer and VAC-600 collating towers (VAC-600Ha, VAC-600Hm, VAC-600Hc) to deliver exceptional flexibility and productivity in post-press processing. Suitable for both offset and digital printing, the SPF-200L excels in producing A4 landscape booklets with automated settings, high-speed operation, and robust wire stitching capabilities. Typical applications include brochures, catalogs, manuals, and marketing materials where precision and efficiency are critical.
Key Technical Aspects:
Dimensions and Specifications : The SPF-200L with FC-200L measures 4,271 x 810 x 1,250 mm (L x W x H) and weighs approximately 831 kg. It operates on a 230 V power supply with a 5.3 A current and 1.0 kW power consumption. The system supports a maximum speed of 4,000 cycles/hour (3,500 cycles/hour in landscape format) and can produce booklets up to 100 pages thick, depending on paper type.
Paper Handling : The SPF-200L processes formats ranging from 180 x 105 mm to 610 x 350 mm, while the VAC-600 collating towers handle sheets from 148 x 120 mm to 500 x 350 mm. The VAC-600 towers are modularly expandable from 6 to 60 stations, each with a loading capacity of 55 mm, enabling non-stop operation through double-cycle and insert programs. The system achieves collating speeds of up to 9,500 cycles/hour.
| Model | Horizon- SPF-200L |
|---|---|
| Reference Number | 70262 |
| Manufacturer | Horizon |
| Year | 2022 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
