Machine Description
Horizon VAC-100a VAC-100m SPF-20A FC-20A Booklet Making System, Used.
.
This Horizon booklet making system is a powerful solution for professional booklet production, combining collating, stitching, folding, and front trimming in an efficient process. It offers high productivity, versatile applications, and easy operation for efficient booklet production..
.
.
Key Features:.

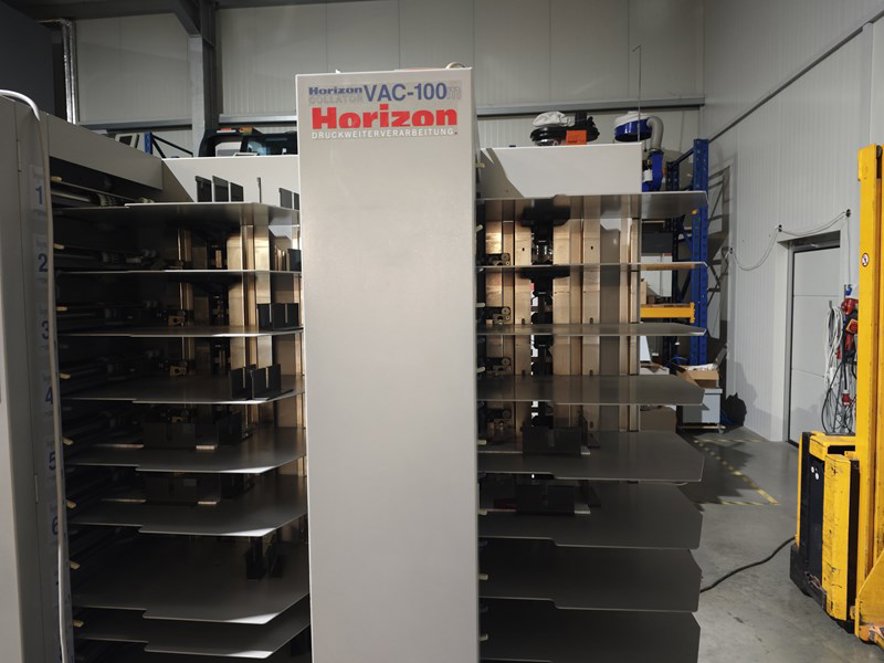

- Two collating towers: VAC-100a and VAC-100m with 10 stations each.
- Versatile stitching options: Saddle, corner, and side stitching possible.

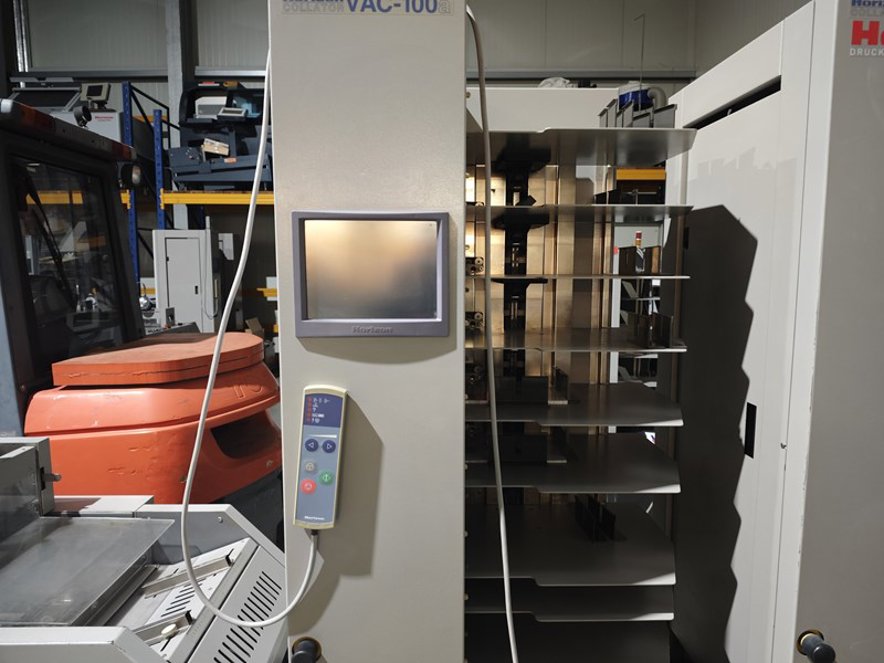

- Touch & Work: Intuitive operation thanks to user-friendly technology.
- 9 programmable memory locations for repeat jobs.
- Precise error control: Prevention of miss-feed, double-feed, and jam problems.
- Expandable configuration: Possibility to add more VAC-100 towers.
.
.
Technical Specifications:.
- Paper format: max. 350 x 500 mm; min. 148 x 120 mm.
- Booklet format: max. 250 x 350 mm; min. 85 x 120 mm.
- Paper weight: 40-300 g/m².
- Processing thickness: 2-22 sheets (80 g/m²).
- Trimming thickness: 4-50 sheets (80 g/m²).
- Front trim: max. 25 mm.
- Production speed: max. 3,600 booklets/h.
- Collating performance: up to 9,900 sets/h.
- Loading capacity per station: 55 mm.
- Power supply: 230V; 50/60Hz.
- Total power consumption: approx. 2.3 kW...
The Horizon SPF-20A is a professional-grade booklet making system designed for high-efficiency booklet production, falling under the category of booklet machines. This used system integrates collating, stitching, folding, and front trimming into a seamless workflow, making it ideal for print shops, publishing houses, and in-plant production facilities. Key features include dual collating towers (VAC-100a and VAC-100m) with 10 stations each, versatile stitching options (saddle, corner, and side stitching), and intuitive Touch & Work operation. With programmable memory for repeat jobs, precise error control, and expandable configuration, the SPF-20A delivers reliable performance, high productivity, and ease of use for producing professional booklets, brochures, catalogs, and other bound documents.
Key Technical Aspects:
Dimensions and Specifications : The Horizon SPF-20A operates on a 230V power supply (50/60Hz) with a total power consumption of approximately 2.3 kW. It achieves a maximum production speed of 3,600 booklets per hour and a collating performance of up to 9,900 sets per hour. The system includes 9 programmable memory locations for repeat jobs and features expandable configuration options with additional VAC-100 towers.
Paper Handling : The machine supports a maximum paper format of 350 x 500 mm and a minimum of 148 x 120 mm, with booklet formats ranging from 85 x 120 mm to 250 x 350 mm. It accommodates paper weights from 40-300 g/m² and processes thicknesses of 2-22 sheets (80 g/m²) for stitching and 4-50 sheets (80 g/m²) for trimming. Each collating station has a loading capacity of 55 mm, and the front trim can handle up to 25 mm.
| Model | Horizon-SPF 20 A |
|---|---|
| Reference Number | 23207 |
| Manufacturer | Horizon |
| Year | 2003 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
Horizon - SPF 20 A
