Machine Description

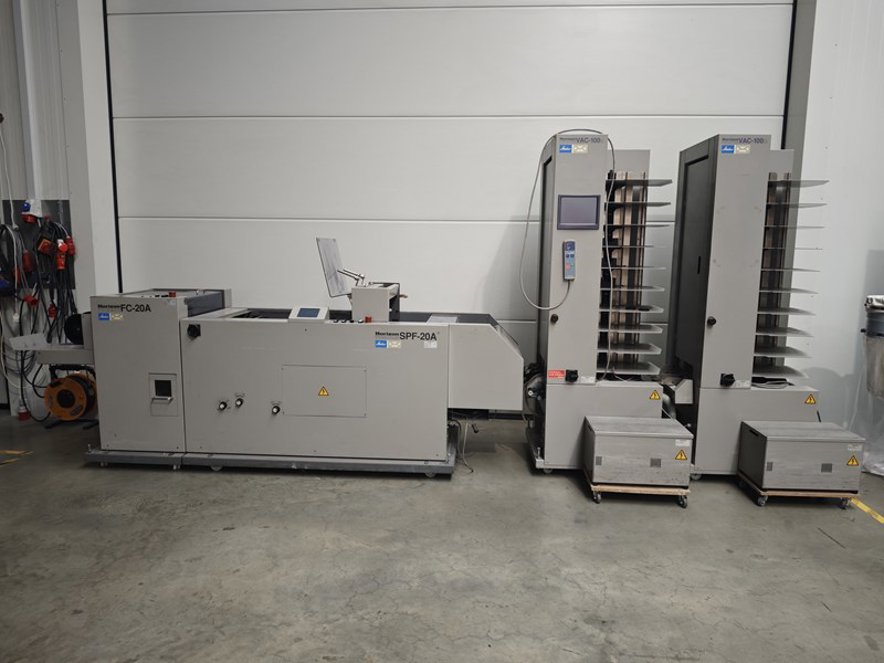

Horizon booklet maker VAC-100 a VAC-100 m SPF-20 A FC-20 A.
.
offer consists of:.
.
- air suction collator VAC-100a.
- air suction collator VAC-100m.
- stitching and folding SPF-20A.
- frontcutter FC-20A.
.
.

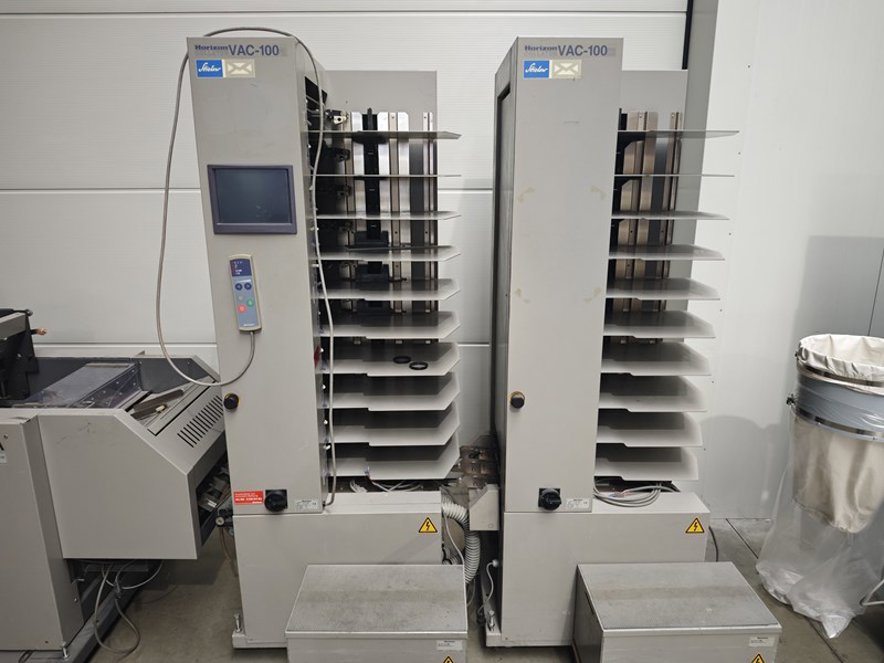

Horizon VAC-100a / Horizon VAC-100m.
air-suction collators.
.
- technology: touch & work.
- model: air-suction collator.
- bins: 10 each collator.
- error avoidance: misfeed-,doublefeed- and jamming control.
- saveable jobs: 9 memories for repeat orders.
- extensibility: up to 6 collators (60 bins).
.
.
programs:.
- doublecycle (nonstop-work).
- inject (simply and doubly).
- booklet making program.
- block program.
- selective collating.
.
- sheet size: max. 500x350mm; min. 148x120mm.
- paper weight: 40-250g/qm.
- loading height: 55mm/ bin.
.
- production speed: max. 9.500 cycles/h.
.
- power: 230V/50Hz - 1,86kW.
- dimensions: 842x652x1.961mm.
- weight: 310kg.
.
.

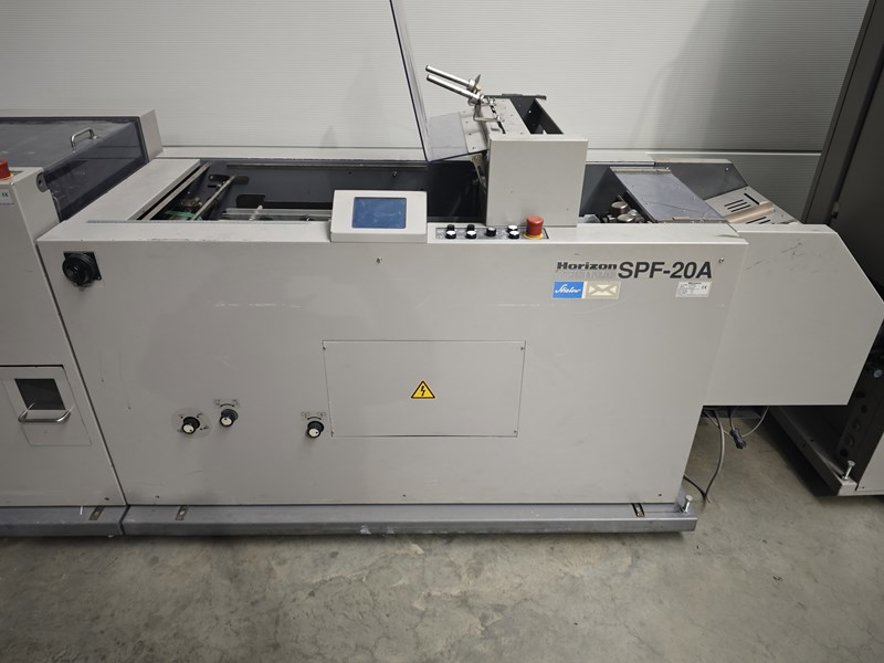

Horizon SPF-20A.
stitcher and folder:.
.
- format adjustment: fully automatic.
- DIN-size and standard fold types: preassigned.
- saveable jobs: 12 memories for special sheet sizes + all DIN sheet sizes.
- stitching heads: 2 - expandable up to 4 stitching heads.
- stapling options: top-, side-, cornerstitiching.
- ring eylete stitiching: with ring eyelet stitching heads possible.
.
- inlet format:.
max. 500x350mm;.
min. 180x120mm.
.
- processing strength:.
min. 2 pages; max. 22 pages (80g/sqm).
.
- clip distance: min. 73mm.
- stitching wire: 26 - 28.
- production speed: max. 3.600 cycles/h.
.
- power: 230V/50Hz - 0,45kW.
- dimensions: 2.710x810x1.070mm.
- weight: 490kg.
.
.
Horizon FC-20A.
fore-edge trimmer:.
.
- counter.
- faulty set ejection.
.
- booklet size:.
max. 250x20mm; min. 85mm.
- size front cut:.
max. 20mm.
- trimming thickness:.
min. 4 pages / max. 88 pages (80g/sqm).
.
- production speed: max. 3.400 cycles/h.
.
- power: 230V/50Hz - 0,2kW.
- dimensions: 610x810x1.070mm.
- weight: 240kg...
The Horizon SPF-20 A is a high-performance booklet making system designed for efficient production of professional booklets, brochures, and saddle-stitched documents. This comprehensive solution combines air-suction collation, stitching, folding, and trimming capabilities in a single workflow, making it ideal for print shops, in-plant operations, and commercial printers. Key features include high-speed processing, automated format adjustments, and versatile stitching options, ensuring precision and reliability for medium to high-volume production. Typical applications include marketing materials, manuals, catalogs, and educational booklets.
Key Technical Aspects:
Dimensions and Specifications : The Horizon SPF-20 A system comprises multiple units: VAC-100a/VAC-100m air-suction collators (842x652x1,961mm, 310kg each), SPF-20A stitcher and folder (2,710x810x1,070mm, 490kg), and FC-20A fore-edge trimmer (610x810x1,070mm, 240kg). Power requirements are 230V/50Hz, with a combined power consumption of 2.51kW. The system supports up to 6 collators (60 bins) for expanded capacity.
Paper Handling : The VAC-100a/VAC-100m collators handle sheet sizes from 148x120mm to 500x350mm with paper weights of 40-250gsm. Each bin accommodates a loading height of 55mm. The SPF-20A stitcher and folder processes documents from 180x120mm to 500x350mm, with a capacity of 2-22 pages (80gsm). The FC-20A trimmer handles booklets from 85mm to 250x20mm, trimming thicknesses of 4-88 pages (80gsm).
| Model | Horizon-SPF 20 A |
|---|---|
| Reference Number | 23200 |
| Manufacturer | Horizon |
| Year | 1999 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
