Horizon - SPF 20 A

Machine Description

We are pleased to offer:.
Used Horizon SPF -20A, FC -20A, Horizon VAC 100a, VAC 100c Year 2002.
Specification.
The Horizon SPF-20A is a reliable and versatile saddle-stitching and trimming system, designed for continuous, high-quality booklet production. This 2002 configuration is equipped with two VAC-100 towers (VAC-100a and VAC-100c), providing a total of 20 feeding stations with vacuum rotor feeding for stable and accurate sheet handling..
The complete line includes:.

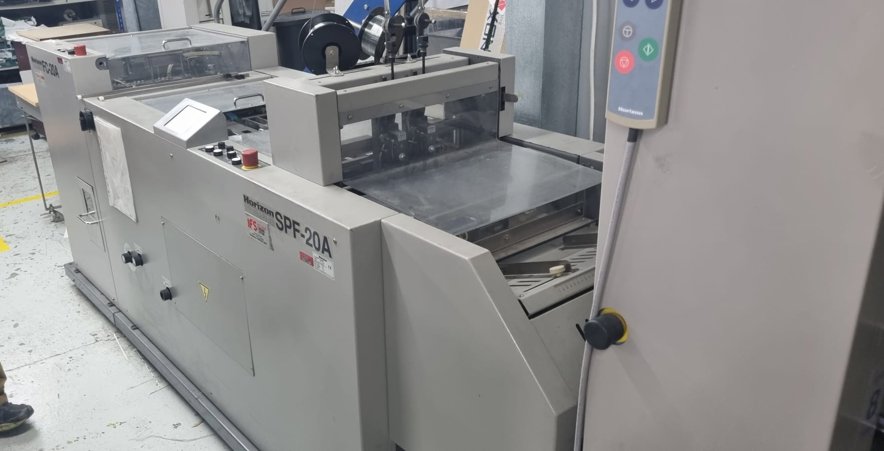

SPF-20A: Saddle-stitcher and folder unit..
FC-20A: Fore-edge trimmer for complete three-knife trimming in-line..
Integrated two-knife trimmer: For head and foot trimming within the SPF-20A..
VAC-100A and VAC-100C towers: Ten stations each, expandable up to six towers in total..
This fully in-line system enables: feeding, collating, stitching, folding, trimming (head, foot, and fore-edge) in one seamless operation. It is ideally suited for producing catalogues, magazines, booklets, and promotional material with a professional finish..
.
SPF-20(Series) Stitcher & Folder.
Sheet Size: Max. 350(W) x 500(L) mm (13.7" x 19.6") / Min. 120(W) x 180(L) mm (4.8" x 7.1").
Finish Size: Max. 250(W) x 350(L) mm (9.8" x 13.7") / Min. 90(W) x 120(L) mm (3.6" x 4.8").
Stitching Thickness: Max. 4 mm (0.15") (only for side stitch).
Stitching & Folding Thickness: Max. 2 mm (0.07") 20 sheets of 60 gsm.
Stitch Distance: 73 to 160 mm (2.9" to 6.2") Adjustable.
Stitching Wire: Standard: No. 25 (0.5 mm) (0.020") Option: No. 28 (0.4 mm) (0.016").
Production Speed: Max. 3,660 booklets/hr. (A4-Finish) Max. 4,050 booklets/hr. (A5-Finish).
Voltage / Frequency: Single Phase 200 V, 50 / 60 Hz Single Phase 220 V, 60 Hz Single Phase 230 V, 50 / 60 Hz.
Rated Current: Single Phase 200 V, 50 / 60 Hz, 3.7 / 2.9 A Single Phase 220 V, 60 Hz, 3.4 A Single Phase 230 V, 50 / 60 Hz, 2.2 / 2.0 A.
Power Consumption: Single Phase 200 V, 50 / 60 Hz, 460 / 400 W Single Phase 220 V, 60 Hz, 600 W Single Phase 230 V, 50 / 60 Hz, 520 / 500 W.
Heat Output: 620 kJ (150 kcal).
Motors: 200 W x 1, 100 W x 1, 60 W x 1, 15 W x 1.
Machine Weight: 1, 100 W x 1, 60 W x 1, 15 W x 1 470 kg (1,036.4 lbs.).
.
FC-20 (Series) Fore-edge Trimmer.
Book Size (Before Trim): Max. 250(W) x 350(L) mm (9.8" x 13.7") / Min. 90(W) x 120(L) mm (3.6" x 4.8").
Finish Size: Max. 250(W) x 350(L) mm (9.8" x 13.7") / Min. 85(W) x 120(L) mm (3.4" x 4.8").
Trimming Length: Max. 20 mm (0.78").
Trimming Thickness: Max. 4 mm (0.15") 50 sheets of 60 gsm.
Production Speed: 3,660 booklets/hr. (A4-Finish) 4,050 booklets/hr. (A5-Finish).
Voltage / Frequency: Single Phase 200 V, 50 / 60 Hz Single Phase 220 V, 50 / 60 Hz Single Phase 230 V, 50 / 50 Hz.
Rated Current: Single Phase 200 V, 50 / 60 Hz, 1.5 / 1.6 A Single Phase 220 V, 50 / 60 Hz, 1.4 / 1.0 A Single Phase 230 V, 50 / 60 Hz, 1.3 / 1.4 A.
Power Consumption: Single Phase 200 V, 50 / 60 Hz, 290 W Single Phase 220 V, 50 / 60 Hz, 280 / 220 W Single Phase 230 V, 50 / 60 Hz, 270 / 300 W.
Motors: 400 W x 1, 60 W x 1, 25 W x 1.
Machine Weight: 230 kg (507.2 lbs.).
.
VAC-100 (Series) Air-Suction Collator .
Number of Bin: 10 bins.
Sheet Feeding System: Suction Rotor Feeding System.
Expandability: Up to 6 towers (60 stations)..
Sheet Size: Max. 350(W) x 500(L) mm (13.77" x 19.68") / Min. 148(W) x 148(L) mm (5.83" x 5.83").
Sheet Weight Range: 52 gsm to 208 gsm.
Bin Pile Height: Max. 55 mm (2.2").
Sheet Overlap: 4 Steps.
Collating Interval: Automatic Setting and Variable Setting.
Production Speed: Max. 9,900 sets/hr. (A5LEF, Straight Receiving) / Max. 8,900 sets/hr.(A4LEF, Straight Receiving).
Program Collation: Double Cycle / Dual Cover Feed / Preset Tabbing .
Good working order.
Available immediately.
