Machine Description
Configuration: Saddle stitching and folding unit (booklet maker).
Brand: Horizon International Inc. (Kyoto, Japan).
Model: SPF-10II.
Format Adjustment: Manual.
Stitching Heads: 2 standard, expandable up to 4.
Stitching Options: Saddle stitch, block/side stapling, corner stapling, ring eyelet stitching (with optional heads).
Min Infeed Format: 148 × 148 mm.
Max Infeed Format: 330 × 305 mm.
Min Sheet Size (Stitching & Folding): 210 × 210 mm.
Max Sheet Size (Stitching & Folding): 330 × 470 mm.
Min Sheet Size (Top Stitching): 148 × 210 mm.
Max Sheet Size (Top Stitching): 330 × 364 mm.
Processing Thickness: Min. 2 sheets – Max. 4 mm.
Min Staple Spacing: 73 mm.
Stitching Wire Gauge: 26–28.
Stitching Wire Diameter: 0.52 mm.
Production Speed: Up to 2,800 booklets/hour.
Control System: Manual setup with motor on/off control.
Applications: Booklet making, brochure production, saddle-stitched documents, corner stapling.

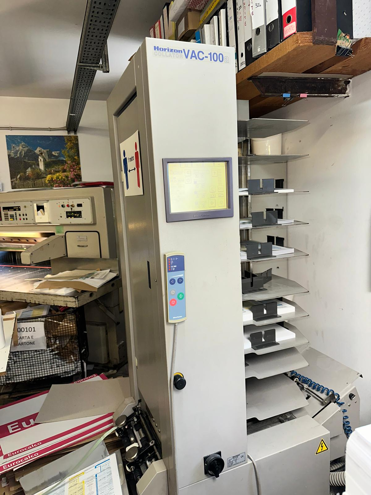

Compatible Modules: FC-10II front trimmer, MC-80 / VAC-100 collators, short conveyor.
Machine Dimensions (L × W × H): 2,130 × 610 × 850 mm.
Weight: 280 kg.
Power Supply: 230V, 50Hz, single phase.
Power Consumption: 0.5 kW...

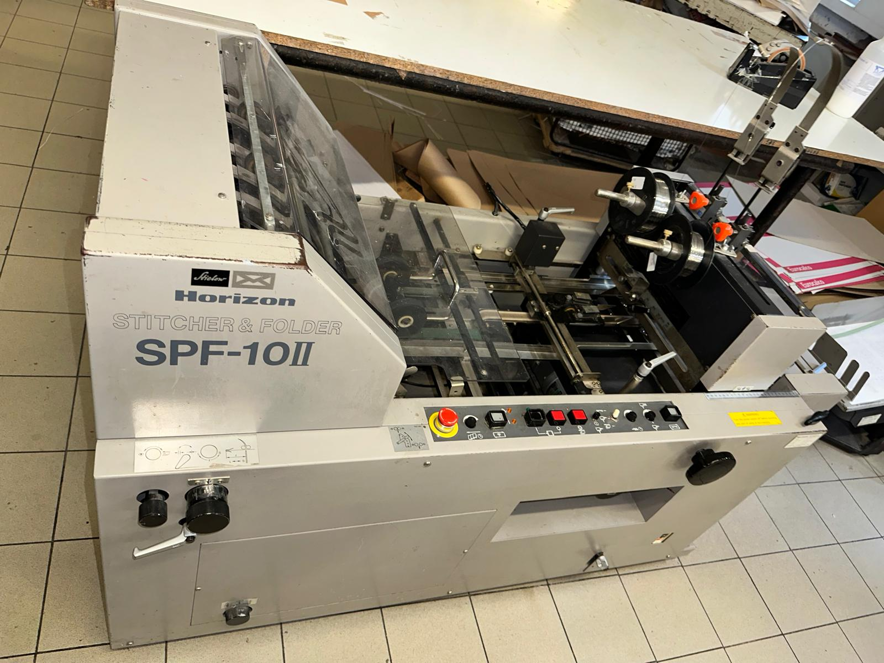

The Horizon SPF-10 II is a versatile booklet-making machine designed for saddle stitching and folding applications, ideal for producing professional-quality booklets, brochures, and saddle-stitched documents. As part of the Booklet machines category, this model from Horizon International Inc. offers manual format adjustment with expandable stitching capabilities, supporting up to four stitching heads for enhanced productivity. Key features include multiple stitching options such as saddle stitch, block/side stapling, corner stapling, and ring eyelet stitching (with optional heads), making it suitable for a wide range of finishing tasks. With a production speed of up to 2,800 booklets per hour, the SPF-10 II ensures efficiency while maintaining precision in document finishing. Its compact design, compatibility with optional modules like the FC-10II front trimmer, and manual setup with motor control make it a reliable choice for print shops, in-plant operations, and commercial finishing environments.
Key Technical Aspects:
Dimensions and Specifications : The Horizon SPF-10 II measures 2,130 × 610 × 850 mm (L × W × H) and weighs 280 kg. It operates on a 230V, 50Hz, single-phase power supply with a power consumption of 0.5 kW. The machine features a manual control system with motor on/off functionality and supports a production speed of up to 2,800 booklets per hour.
Paper Handling : The SPF-10 II accommodates a wide range of sheet sizes and thicknesses, with a minimum infeed format of 148 × 148 mm and a maximum of 330 × 305 mm. For stitching and folding, the minimum sheet size is 210 × 210 mm, while the maximum extends to 330 × 470 mm. Top stitching supports sheets from 148 × 210 mm to 330 × 364 mm. The machine processes thicknesses from a minimum of 2 sheets up to 4 mm, with a minimum staple spacing of 73 mm and stitching wire gauges of 26–28 (0.52 mm diameter).
| Model | Horizon-SPF-10 II |
|---|---|
| Manufacturer | Horizon |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | 2500.00 EUR |
| Location | 103 Rue des Écoles, 38121 Reventin-Vaugris, France |
Special Features
- 2–4 Stitching Heads
Horizon - SPF-10 II
