Horizon - SPF 10 FC10

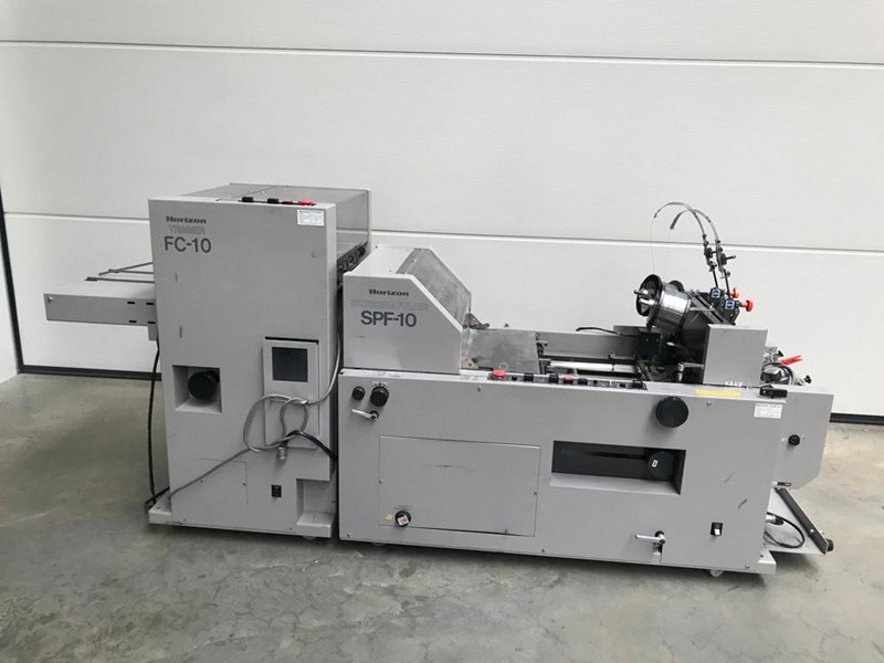

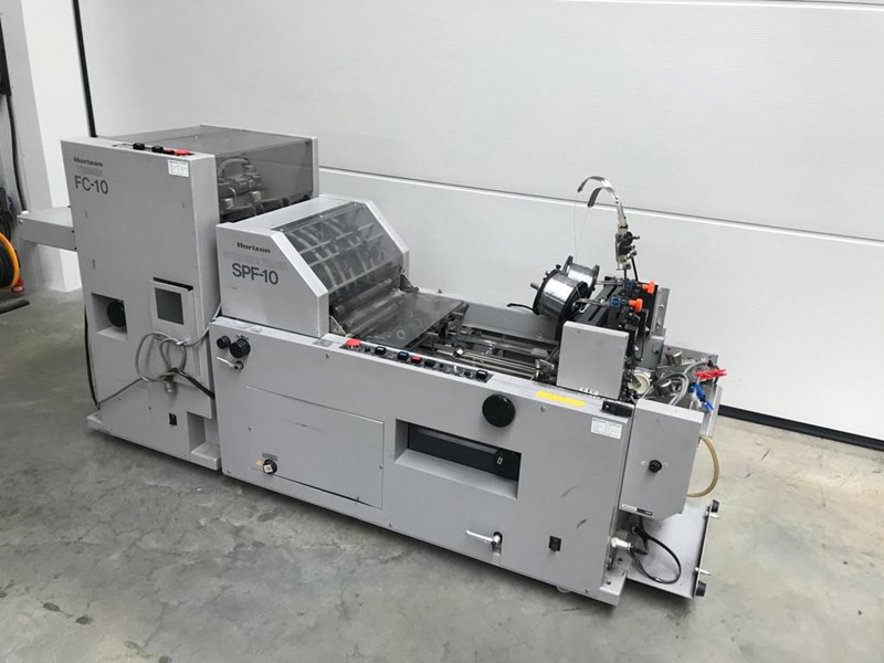

Booklet machines Horizon SPF 10 FC10
Booklet machines Horizon SPF 10 FC10
Booklet machines Horizon SPF 10 FC10

Machine Description

offer consists of:.
.
- stitching and folding SPF-10.
- frontcutter FC-10.
.
.
Horizon SPF-10.
stitching- and folding:.
.
- format adjustment: manually.
- stitching heads: 2 expandable up to 4 stitching heads.
- stapling options: top-, side-, cornerstitiching.
- ring eylete stitiching: with ring eyelet stitching heads possible.
.
- inlet format:.
max. 330x305mm;.
min. 148x148mm.
.
- processing strength:.
min. 2 pages; max. 4mm.
.
- clip distance: min. 73mm.
- stitching wire: 26 - 28.
.
- production speed: max. 2.800 booklets/h.
.
.
- power: 230V; 50Hz - 0,5kW.
- dimensions: 2.130x610x850mm.
- weight: 280kg.
.
.
Horizon FC-10.
frontcutter:.
.
- counter.
- faulty set ejection.
.
- booklet size:.
max. 225x20mm; min. 99x2mm.
- size front cut:.
max. 20mm.
- trimming thickness:.
min. 4 pages / max. 88 pages (80g/sqm).
.
- production speed: max. 2.800 booklets/h.
.
- power: 230V; 50Hz - 0,25kW.
- dimensions: 570x610x1.040mm.
- weight: 170kg.

ModelHorizon-SPF 10 FC10
ManufacturerHorizon
Year1991
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationGermany

About Horizon - SPF 10 FC10

The Horizon SPF-10 FC10 is a high-performance, floor-model folder designed for commercial printing and finishing applications. This machine is ideal for printing businesses, in-plant operations, and binderies that require efficient and precise folding of various paper sizes and types. The SPF-10 FC10 offers advanced features, high-speed production, and exceptional folding accuracy, making it an excellent choice for demanding print finishing environments.

Key Technical Aspects:

Dimensions and Specifications : The Horizon SPF-10 FC10 measures 123.6 inches (314 cm) in length, 43.3 inches (110 cm) in width, and 67.3 inches (171 cm) in height. It weighs approximately 2,646 pounds (1,200 kg) and has a maximum power consumption of 3.0 kW. The machine has a folding capacity of up to 10,000 sheets per hour.

Paper Handling : The SPF-10 FC10 features a high-capacity feed tray that can hold up to 2,000 sheets of paper, with a maximum sheet size of 14.33 inches x 20.47 inches (364 mm x 520 mm) and a minimum sheet size of 5.51 inches x 7.87 inches (140 mm x 200 mm). The machine is equipped with a dual-stream feeder, allowing for simultaneous feeding of two different paper sizes. It also features a batch counter and a sheet counter.

Folding Unit : The SPF-10 FC10 is equipped with a high-speed folding unit that can produce up to 10,000 folds per hour. It features a buckle plate folding system with a maximum folding length of 23.62 inches (600 mm) and a minimum folding length of 2.76 inches (70 mm). The machine can perform various fold types, including letter folds, accordion folds, and gate folds.

Control System : The SPF-10 FC10 features a user-friendly touchscreen control panel with a 10.4-inch color display. The control system allows for easy setup and operation, with features such as automatic fold setup, batch counting, and sheet counting.

Optional Features : The SPF-10 FC10 offers various optional features, including a scoring unit, a perforating unit, and a creasing unit. These features can be added to enhance the machine's capabilities and provide additional finishing options.
