Machine Description

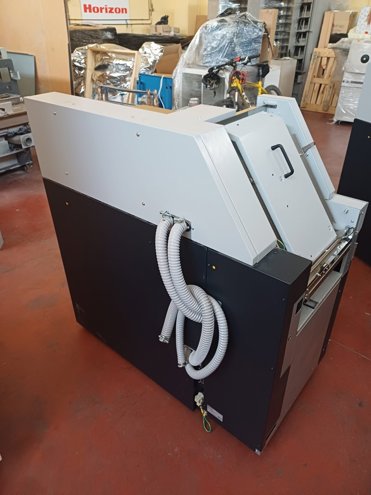

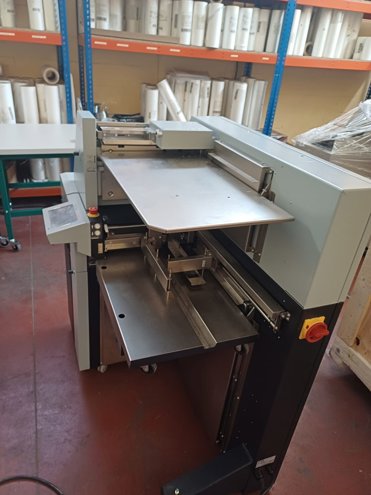

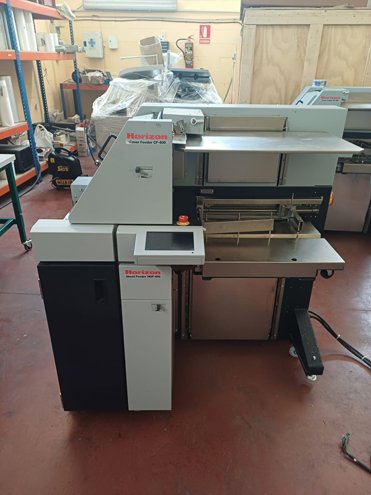

Horizon HOF-400, fully automatic feeder, used..
.
This robust, fully automatic feeder was specially developed for the offline production of digitally printed booklets in conjunction with the SPF-200A, SPF-200L booklet making units, the StitchLiner 5500 and other optional additional devices. The sheets are removed sheet by sheet, checked, grouped and fed to the downstream unit in a block. Mark reading ensures reliable grouping and the production of brochures in different sizes..
.
.
Special features:.
- Maximum flexibility at an extremely attractive price-performance ratio.
- Reliable paper feed thanks to suction belt feed.
- Extremely short set-up times thanks to fully automatic format adjustment.
- Extremely easy operation and set-up in seconds thanks to TOUCH&WORK technology.
- Economical processing of small and medium volumes in top quality.
.
.
Technical specifications:.
- Infeed format 4-sided sheets min. 203 x 203 mm, max. 610 x 356 mm (depending on downstream unit).
- Paper thickness 50 - 160 g/sqm for normal paper / 70 - 160 g/sqm for coated paper.
- Loading capacity max. 620 mm.
- Speed A3 format max. 25,000 sheets/h.
- A4 format speed max. 35,000 sheets/h / max. 45,000 sheets/h (landscape).
- Weight 782 kg (with front cutter FC-200A).
- Machine dimensions 960 mm x 1,050 mm x 936 mm (LxWxH).
- Power supply 400 V 1.8 A, 1.0 kW...
The Horizon HOF-400 is a fully automatic feeder designed for the offline production of digitally printed booklets, categorized under booklet machines. This robust and efficient machine works in conjunction with Horizon's SPF-200A, SPF-200L booklet making units, and the StitchLiner 5500, ensuring reliable sheet handling, grouping, and feeding to downstream units. Key features include suction belt feed for dependable paper handling, fully automatic format adjustment for minimal setup times, and TOUCH&WORK technology for effortless operation. Ideal for small to medium print volumes, the HOF-400 delivers high-quality results with maximum flexibility and an attractive price-performance ratio, making it suitable for commercial printing, publishing, and in-plant production environments.
Key Technical Aspects:
Dimensions and Specifications : The Horizon HOF-400 has a machine weight of 782 kg (with front cutter FC-200A) and dimensions of 960 mm (L) x 1,050 mm (W) x 936 mm (H). It operates on a 400 V power supply with a 1.0 kW rating and 1.8 A current draw. The maximum loading capacity is 620 mm.
Paper Handling : The HOF-400 supports 4-sided sheets with an infeed format ranging from 203 x 203 mm to 610 x 356 mm, depending on the downstream unit. It accommodates paper thickness of 50 - 160 g/sqm for normal paper and 70 - 160 g/sqm for coated paper. The machine achieves speeds of up to 25,000 sheets/hour for A3 format, 35,000 sheets/hour for A4 format, and 45,000 sheets/hour for A4 landscape orientation. Mark reading ensures accurate grouping and handling of various brochure sizes.
| Model | Horizon-HOF-400 |
|---|---|
| Reference Number | 70219 |
| Manufacturer | Horizon |
| Year | 2022 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
