Machine Description
Horizon VAC-100a / Horizon VAC-100m.
air-suction collators.
.
- technology: touch & work.
- model: air-suction collator.
- bins: 10 each collator.
- error avoidance: misfeed-,doublefeed- and jamming control.
- saveable jobs: 9 memories for repeat orders.
- extensibility: up to 6 collators (60 bins).
.
.
programs:.
- doublecycle (nonstop-work).
- inject (simply and doubly).
- booklet making program.
- block program.
- selective collating.
.
- sheet size: max. 500x350mm; min. 148x120mm.
- paper weight: 40-250g/qm.
- loading height: 55mm/ bin.
.
- production speed: max. 9.500 cycles/h.
.
- power: 230V/50Hz - 1,86kW.
- dimensions: 842x652x1.961mm.
- weight: 310kg.
.
.
Horizon ST-40 incl. ST-CV.
Stapelabsenktisch mit Fehlblattauslage + Übergabebrücke.
.
- Nutzen: ermöglicht trotz Fehl- und Doppelblattkontrolle den Non-Stop-Betrieb.
.
- Abmessungen: 1.300x700x950mm.
- Gewicht: 126kg.
.
.
Horizon SPF-20A.
stitcher and folder:.
.
- format adjustment: fully automatic.
- DIN-size and standard fold types: preassigned.
- saveable jobs: 12 memories for special sheet sizes + all DIN sheet sizes.
- stitching heads: 2 - expandable up to 4 stitching heads.
- stapling options: top-, side-, cornerstitiching.
- ring eylete stitiching: with ring eyelet stitching heads possible.
.
- inlet format:.
max. 500x350mm;.
min. 180x120mm.
.
- processing strength:.
min. 2 pages; max. 22 pages (80g/sqm).
.
- clip distance: min. 73mm.
- stitching wire: 26 - 28.
- production speed: max. 3.600 cycles/h.
.
- power: 230V/50Hz - 0,45kW.
- dimensions: 2.710x810x1.070mm.
- weight: 490kg.
.
.
Horizon FC-20A.
fore-edge trimmer:.
.
- counter.
- faulty set ejection.
.
- booklet size:.
max. 250x20mm; min. 85mm.
- size front cut:.
max. 20mm.
- trimming thickness:.
min. 4 pages / max. 88 pages (80g/sqm).
.
- production speed: max. 3.400 cycles/h.
.
- power: 230V/50Hz - 0,2kW.
- dimensions: 610x810x1.070mm.
- weight: 240kg

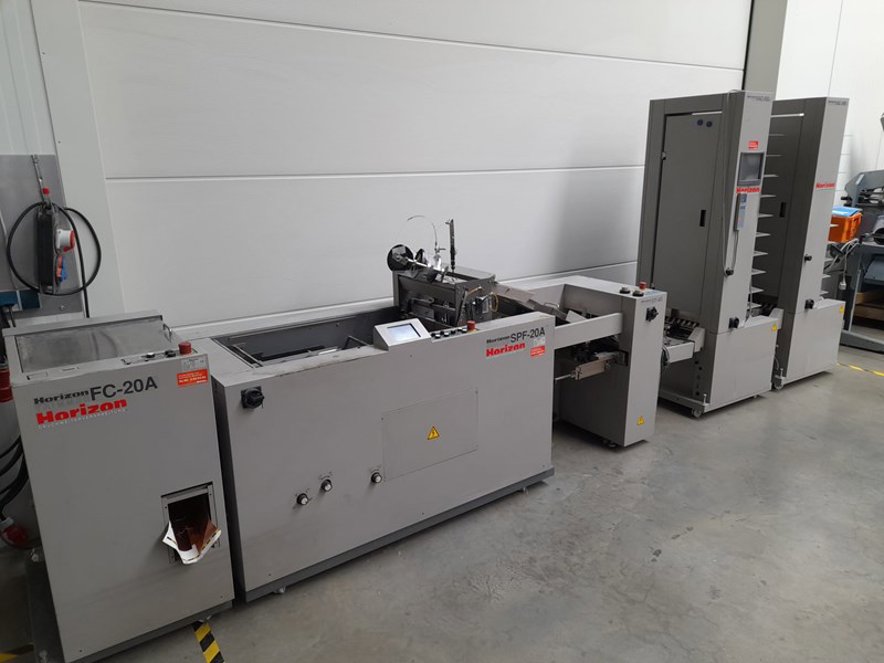

Model | Horizon-VAC-100a VAC-100m ST-40 SPF-20A FC-20A |
---|---|
Manufacturer | Horizon |
Year | 1999 |
Machine Availability | Immediately from stock |
Machine Condition | In Stock |
Price | On Request |
Location | Germany |
