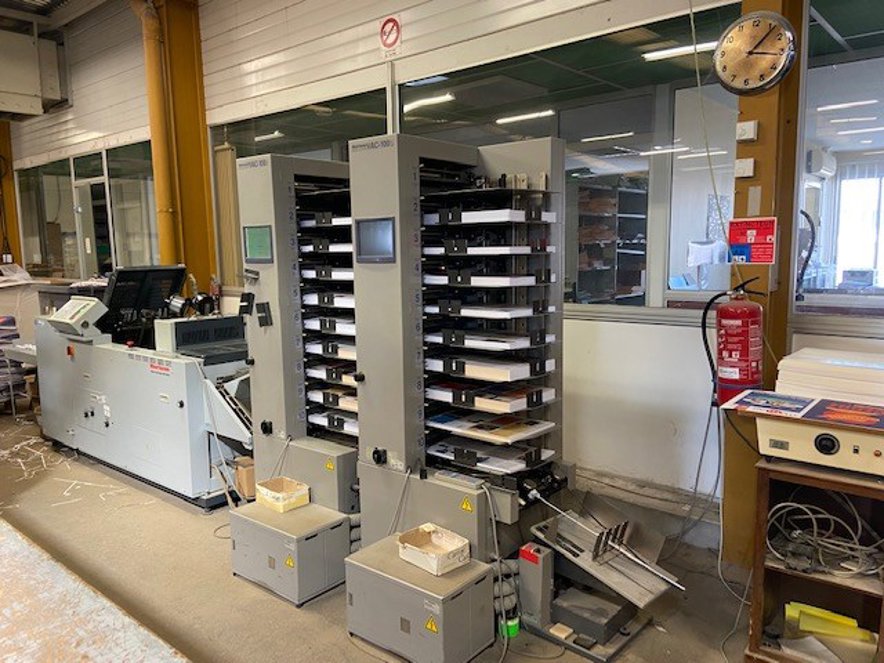

Horizon - VAC-100a VAC-100c SPF-200A FC-200A

Machine Description

- air suction collator VAC-100a (YOM: 2004).
- air suction collator VAC-100c (YOM: 2004).
- stitching and folding SPF-200A (YOM: 2012).
- frontcutter FC-200A (YOM: 2012).
- jogger PJ-77R.
.
.
Horizon VAC-100a/ VAC-100c.
air-suction collators.
.
- technology: touch & work.
- model: air-suction collator.
- bins: 10 each collator; total 20 bins.
- error avoidance: misfeed-,doublefeed- and jamming control.
- saveable jobs: 9 memories for repeat orders.
- extensibility: up to 6 collators (60 bins).
.
programs:.
- doublecycle (nonstop-work).
- inject (simply and doubly).
- booklet making program.
- block program.
- selective collating.
.
- sheet size: max. 500x350mm; min. 148x120mm.
- paper weight: 40-250g/qm.
- loading height: 55mm/ bin.
.
- production speed: max. 9.500 cycles/h.
.
- power: 230V/50Hz - 1,86kW.
- dimensions: 842x652x1.961mm.
- weight: 310kg.
.
.
Horizon SPF-200A.
stitcher and folder:.
.
- format adjustment: fully automatic.
- DIN-size and standard fold types: preassigned.
- saveable jobs: 200 memories for repeat orders.
- stitching heads: 2 - expandable up to 4 stitching heads.
- stapling options: topstitching, (side-, cornerstitiching optional equipment).
- ring eylete stitiching: with ring eyelet stitching heads possible.
.
- inlet format:.
max. 508x356mm;.
min. 180x105mm.
.
- processing strength:.
max. 25 pages (80g/sqm).
.
- clip distance: min. 73mm.
- stitching wire: 26 - 28.
- production speed: max. 4.800 booklets/h.
.
- power: 230V / 50Hz - 0,68kW.
- dimensions: 1.625x810x1.070mm.
- weight: 500kg.
.
.
.
Horizon FC-200A.
fore-edge trimmer:.
.
- faulty set ejection.
.
- booklet size:.
max. 250x20mm.
min. 85mm.
.
- trimming thickness:.
max. 100 pages (80 g/sqm).
min. 4 pages.
.
- production speed: max. 4000 booklets/h.
.
- power: 230V / 50Hz - 0,55kW.
- dimensions: 655x810x1.070mm.
- weight: 245kg
