Machine Description

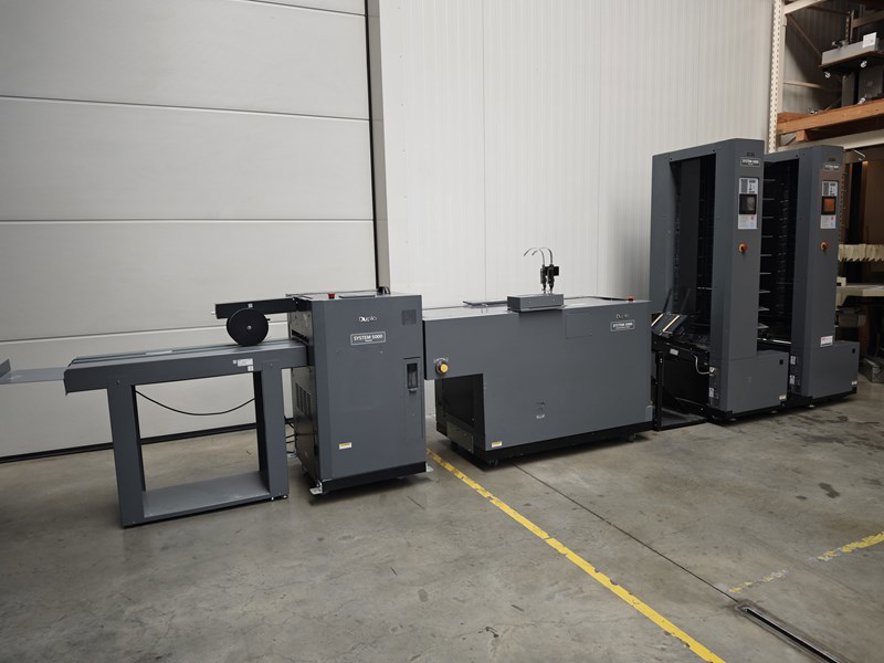

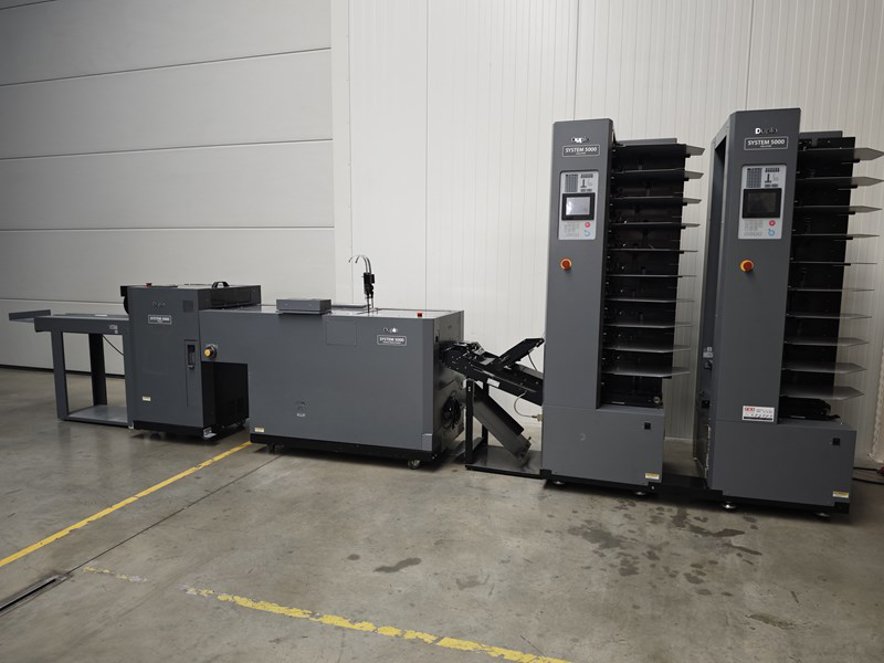

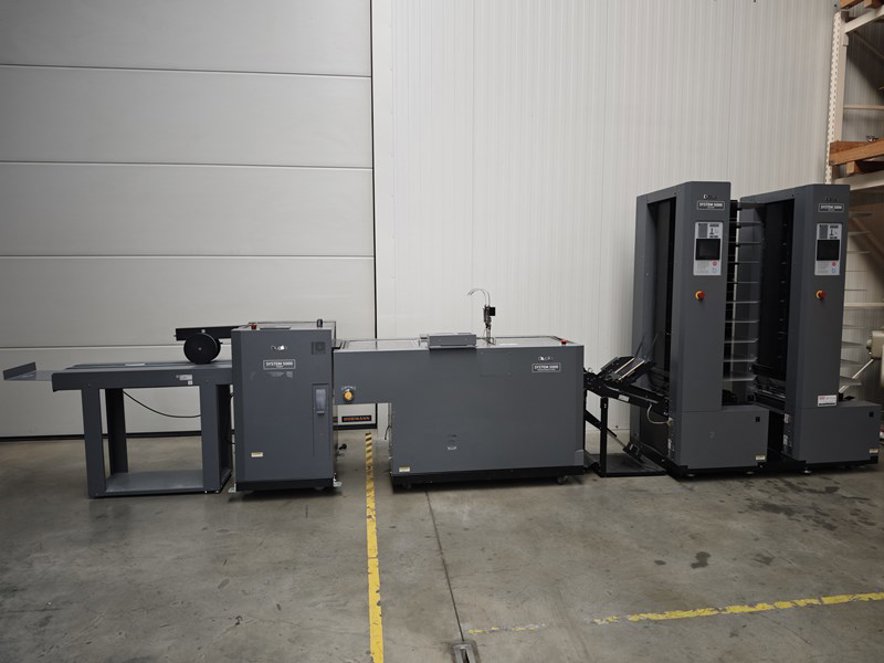

Duplo booklet maker System 5000.
.
offer consists of:.
.
- 2x collators DC-10/60.
- lifting unit LUL-HM.
- bookletmaker DBM-500.
- trimmer DBM-500T.
- preset kicker DBM-K.
- conveyor DBM-400LS.
.
Duplo System 5000.
booklet maker.
.
.

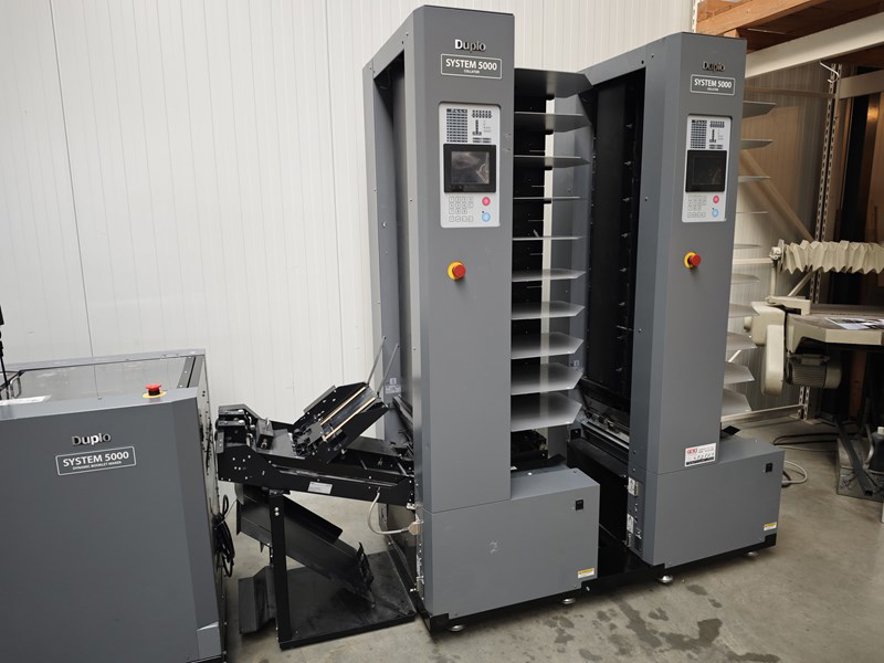

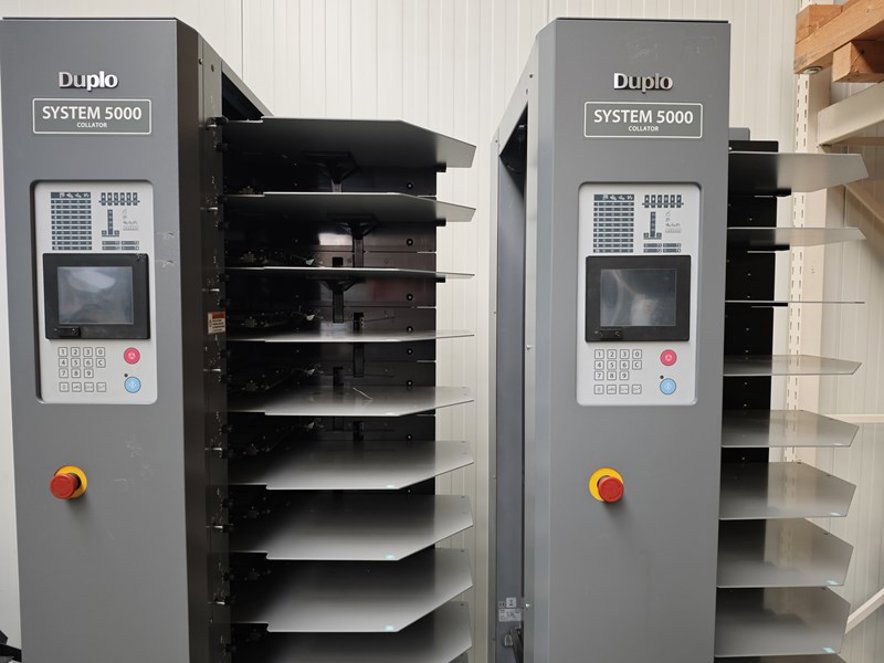

2xDC-10/60: collator.
- number of bins: 20.
- paper size:.
width: min. 120mm, max. 350mm.
length: min. 148mm, max. 500mm.
- paper weight: 0-300g/sqm.
- loading volume: 60mm.
- feeding system: belt suction feed system.
- conveyance system: roller belt conveyance system.
- power supply: 120 to 240 V 50/60 Hz.
- power consumption: 9.5A (120 V 60 Hz), 4.5A(220-240V, 50Hz).
.
DBM-500: stitcher folder.
- paper size: min. 120x170mm; max. 350x500mm.
- process speed:.
>5000 pcs/h, A5.
>4600 pcs/h, A4.
>4000 pcs/h, A3.
- No. of stitches 0 to 2.
- stitch thickness within 5mm.
- wire diameter #25 to #27.
- folding capacity: below 25 sheets.
- dimensions: 2,230 (W) x 865 (D) x 1300 (H).
- ratings: 120 to 240 V 50/60Hz 6.5-3.8A.
- weight: 412kg.
.

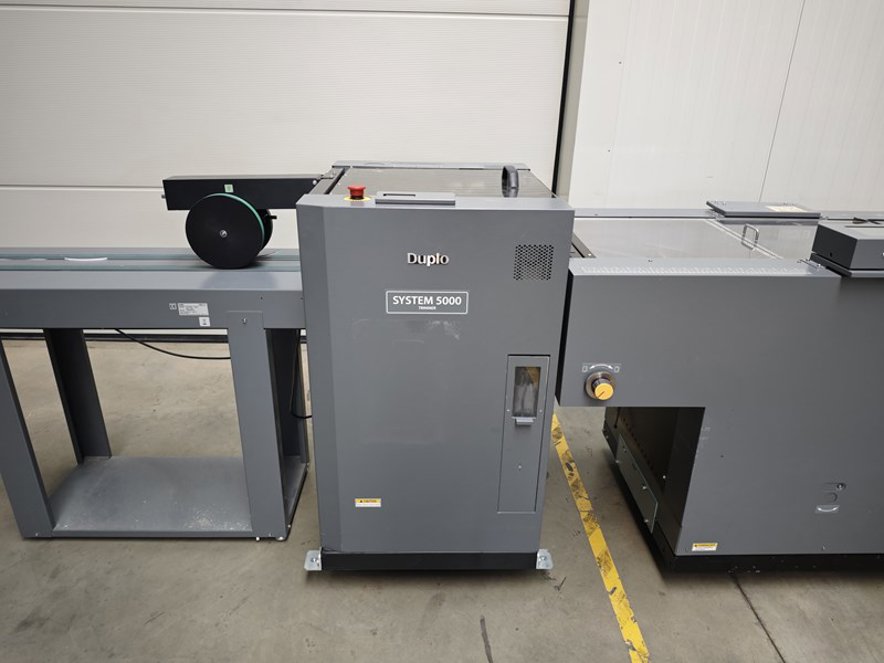

DBM-500T: Trimmer.
- booklet size: min. 85x120mm; max. 250x356mm.
- trimmed booklet size: min. 75x120mm.
- speed: ut to 5000 sets per hour.
- power consumption: 120V 690Hz 10A.
- dimensions: 700mm x 635mm x 1094mm.
- weight: 532 lbs (241kg)...
The Duplo System 5000 is a high-performance booklet-making solution designed for efficient production of professional-quality booklets, brochures, and multi-page documents. Part of the Booklet Machines category, this system integrates collation, stitching, folding, and trimming into a seamless workflow, ideal for print shops, in-plant operations, and commercial printers. Key features include high-speed processing, versatile paper handling, and precision finishing, ensuring consistent output with minimal manual intervention. The System 5000 is particularly suited for applications requiring short to medium runs of saddle-stitched booklets, such as marketing materials, manuals, catalogs, and educational publications.
Key Technical Aspects:
Dimensions and Specifications : The Duplo System 5000 comprises multiple integrated units: two DC-10/60 collators (20 bins each), a LUL-HM lifting unit, a DBM-500 stitcher-folder, a DBM-500T trimmer, a DBM-K preset kicker, and a DBM-400LS conveyor. The DBM-500 stitcher-folder measures 2,230mm (W) x 865mm (D) x 1,300mm (H) and weighs 412kg, while the DBM-500T trimmer dimensions are 700mm x 635mm x 1,094mm with a weight of 241kg. The system operates on 120 to 240V, 50/60Hz power supply, with power consumption varying by component (e.g., 9.5A for collators, 10A for the trimmer).
Paper Handling : The System 5000 supports a wide range of paper sizes and weights, accommodating sheets from 120mm to 350mm in width and 148mm to 500mm in length. Paper weight ranges from 0 to 300gsm, with a bin loading volume of 60mm per collator. The DBM-500 stitcher-folder processes booklets up to 5mm thick, handling up to 25 sheets per fold. The trimmer accepts booklets from 85x120mm to 250x356mm, with a trimmed output size as small as 75x120mm. Feeding and conveyance are managed via belt suction and roller belt systems, ensuring reliable paper transport at speeds up to 5,000 sets per hour (A5 format).
| Model | Duplo-System 5000 |
|---|---|
| Reference Number | 23220 |
| Manufacturer | Duplo |
| Year | 2010 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
