Machine Description

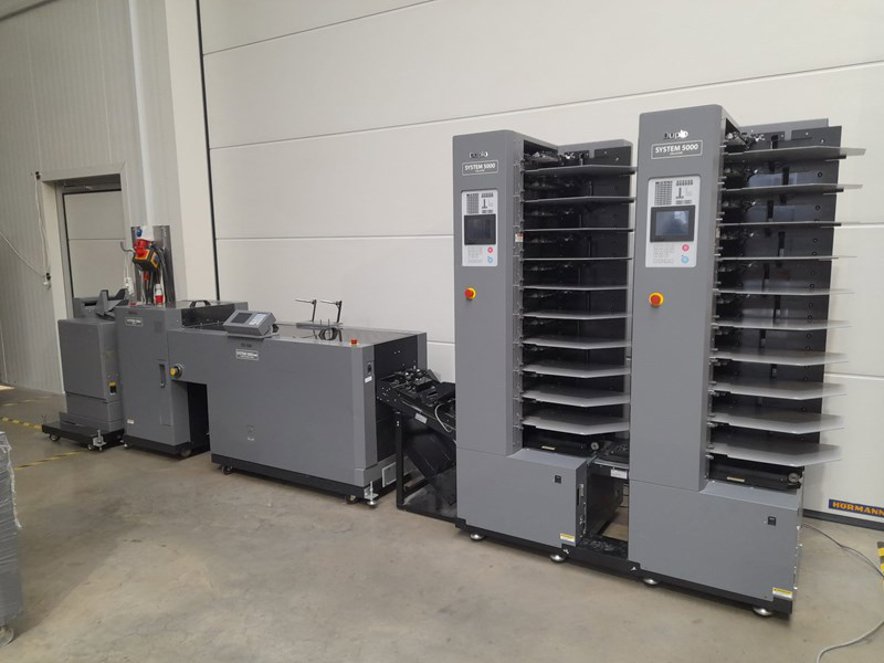

Duplo booklet maker System 5000.
.
offer consists of:.
.
- 2x collators DC-10/60.
- lifting unit LUL-HM.
- bookletmaker DBM-500.
- trimmer DBM-500T.
- preset kicker DBM-K.
- conveyor DBM-400LS.
- Watkiss Auto SpineMaster: Turns stapled brochures into professional SquareBack brochures..
.
Duplo System 5000.
booklet maker.
.
.

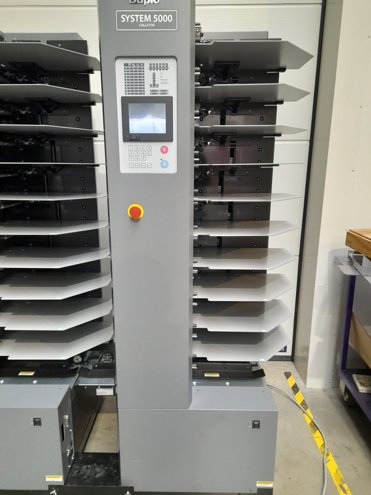

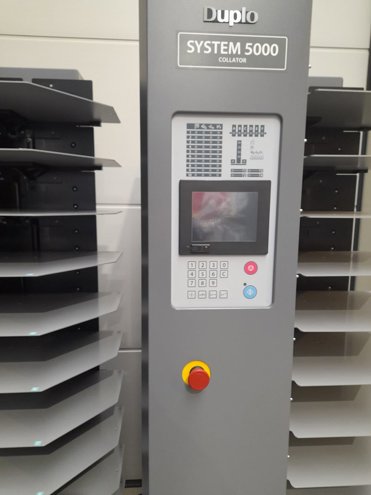

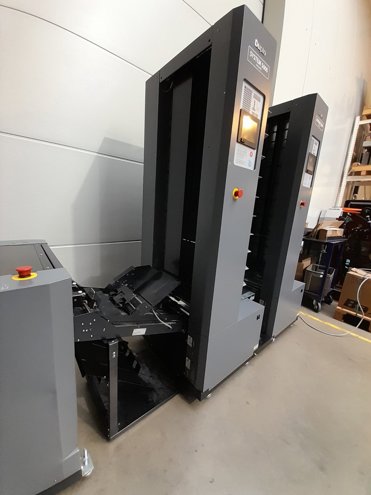

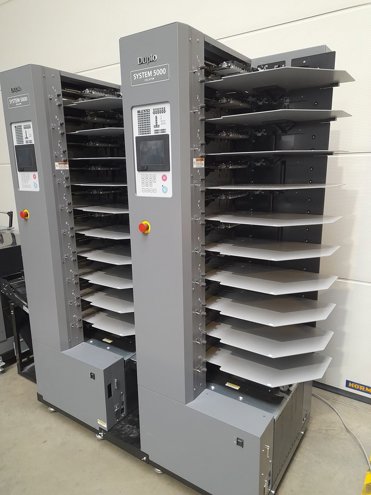

2xDC-10/60: collator.
- number of bins: 20.
- paper size:.
width: min. 120mm, max. 350mm.
length: min. 148mm, max. 500mm.
- paper weight: 0-300g/sqm.
- loading volume: 60mm.
- feeding system: belt suction feed system.
- conveyance system: roller belt conveyance system.
- power supply: 120 to 240 V 50/60 Hz.
- power consumption: 9.5A (120 V 60 Hz), 4.5A(220-240V, 50Hz).

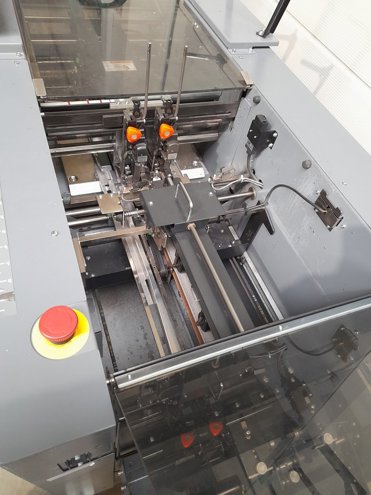

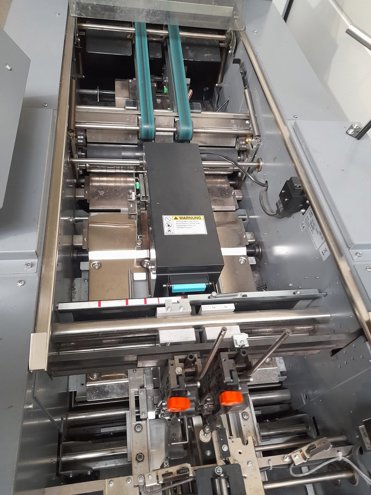

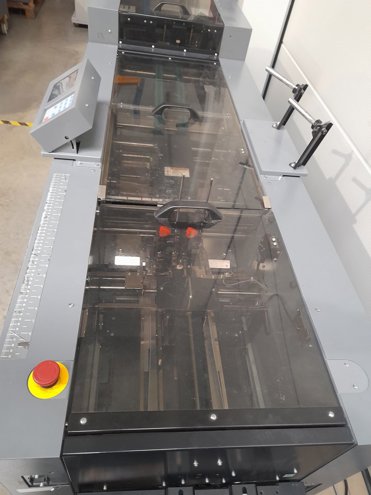

DBM-500: stitcher folder.
- paper size: min. 120x170mm; max. 350x500mm.
- process speed:.
>5000 pcs/h, A5.
>4600 pcs/h, A4.
>4000 pcs/h, A3.
- No. of stitches 0 to 2.
- stitch thickness within 5mm.
- wire diameter #25 to #27.
- folding capacity: below 25 sheets.
- dimensions: 2,230 (W) x 865 (D) x 1300 (H).
- ratings: 120 to 240 V 50/60Hz 6.5-3.8A.
- weight: 412kg.
.
DBM-500T: Trimmer.
- booklet size: min. 85x120mm; max. 250x356mm.
- trimmed booklet size: min. 75x120mm.
- speed: ut to 5000 sets per hour.
- power consumption: 120V 690Hz 10A.
- dimensions: 700mm x 635mm x 1094mm.
- weight: 532 lbs (241kg)...
The Duplo System 5000 is a high-performance booklet-making solution designed for professional print finishing applications. This advanced system integrates multiple components, including two DC-10/60 collators, a DBM-500 stitcher folder, a DBM-500T trimmer, and a Watkiss Auto SpineMaster for square-back brochure production. Ideal for commercial printers, in-plant print shops, and publishing houses, the System 5000 delivers efficient, high-quality booklet production with exceptional speed and precision. Key features include versatile paper handling, automated stitching and folding, and professional trimming capabilities, making it suitable for producing brochures, manuals, catalogs, and other saddle-stitched documents.
Key Technical Aspects:
Dimensions and Specifications : The Duplo System 5000 comprises multiple integrated units with varying dimensions. The DBM-500 stitcher folder measures 2,230mm (W) x 865mm (D) x 1,300mm (H) and weighs 412kg. The DBM-500T trimmer has dimensions of 700mm x 635mm x 1,094mm and weighs 241kg. The system operates on a power supply of 120 to 240V, 50/60Hz, with power consumption varying by component (e.g., 6.5-3.8A for the DBM-500). The machine was manufactured in 2014.
Paper Handling : The System 5000 offers versatile paper handling capabilities. The DC-10/60 collators support paper sizes ranging from 120mm to 350mm in width and 148mm to 500mm in length, with a paper weight capacity of 0-300gsm. Each collator has 20 bins with a loading volume of 60mm. The DBM-500 stitcher folder processes sheets from 120x170mm to 350x500mm, while the DBM-500T trimmer handles booklets from 85x120mm to 250x356mm, with a trimmed output size as small as 75x120mm.
| Model | Duplo-System 5000 | 2x DC-10/60 |
|---|---|
| Reference Number | 23221 |
| Manufacturer | Duplo |
| Year | 2014 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
