Machine Description
We are pleased to offer:.

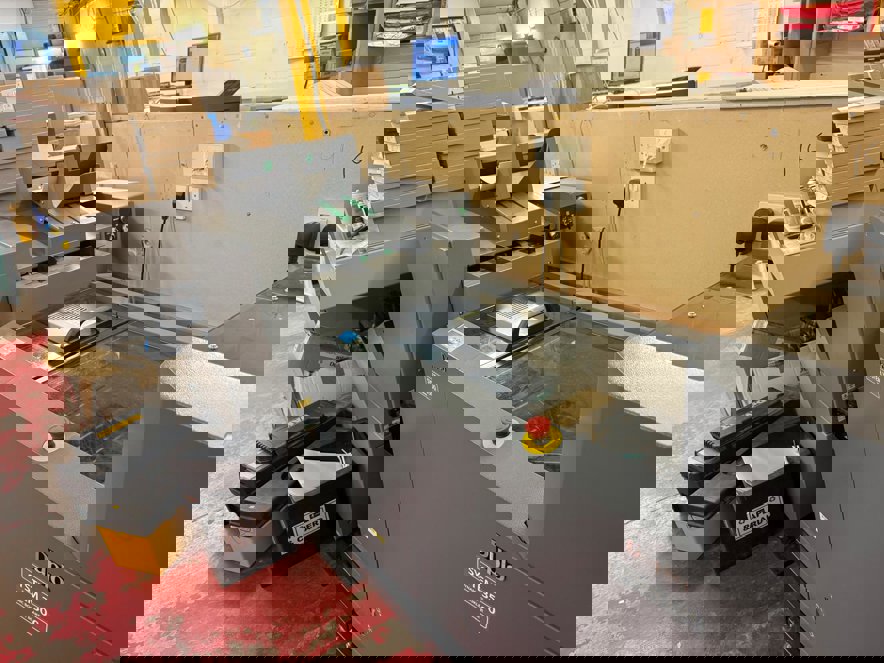

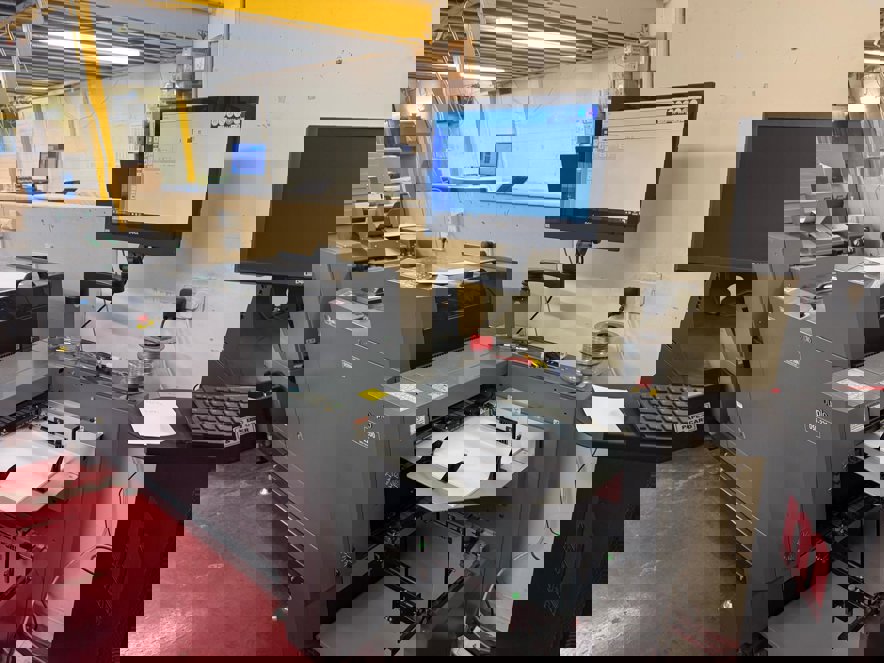

Used Duplo System 3500 Dynamic Booklet Maker Year 2013.
Specification.
The Duplo System 3500 Dynamic Booklet Maker is an automated solution for producing booklets, brochures, and bound printed materials, ideal for digital printers and medium-volume production. It combines several finishing processes in a single line:.
Automated sheet feeding from digital printer output..
Staple binding and folding of booklets..
Front trimming for professional edge finishing..
The system is composed of multiple integrated modules:.

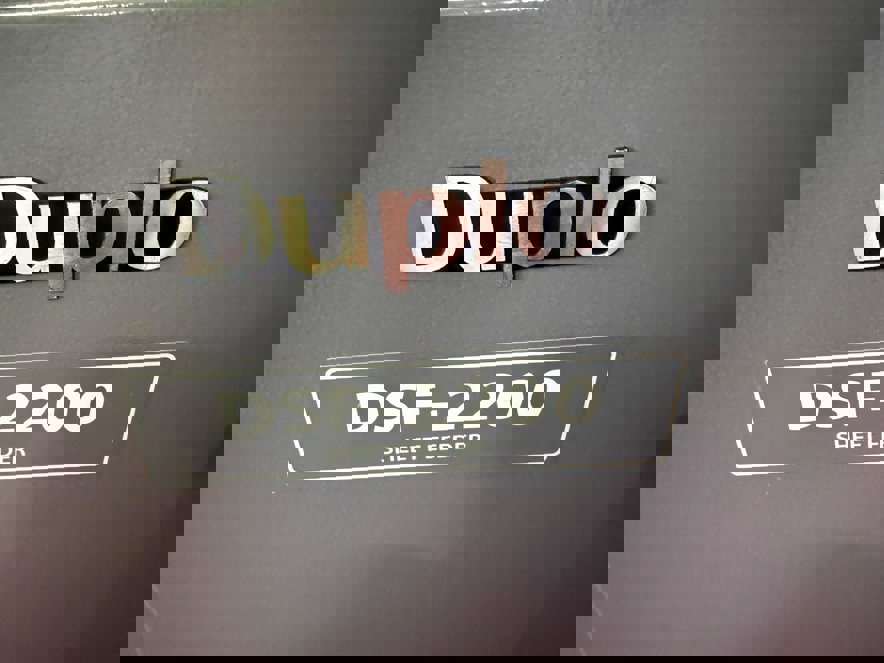

DSF‑2200 Sheet Feeder – Feeds sheets or signatures from printers, collated or uncollated..
DBM‑3500 Booklet Maker – Main machine that staples, folds, and assembles the booklets..
DBM‑3500 Trimmer – Integrated front trimmer for uniform, professional finishing..
This combination offers a semi-automatic to fully automatic workflow, streamlining the finishing process and reducing manual intervention..
Production speed: Up to 3,000 booklets per hour (typical for A5 size)..
Feeding capacity (DSF‑2200):.
Upper tray: ~65 mm.
Lower tray: ~200 mm.
Feeding speed: up to ~200 sheets per minute.
Paper Sizes and Weights.
Paper size range: approximately 105 × 148 mm up to 320 × 460 mm depending on configuration..
Paper Capacity: 20 sheets [Cover x 1(300gsm) 19 sheets (81.4 gsm) equivalent.
Stitch heads: 2.
Compatible paper weight: approximately 52 – 300 gsm..
Maximum sheets per booklet: about 20 sheets plus cover in standard configuration..
Dimensions and Power: Overall dimensions (with DSF‑2200 and trimmer): ~4.48 m long × 0.75 m wide × 1.03 m high.
Combined weight: ~395 kg.
Power supply: 230 V, 50 Hz.
Good working order.
Available immediately...
The Duplo System 3500 Dynamic Booklet Maker is a high-performance, automated finishing solution designed for producing professional booklets, brochures, and bound printed materials. Ideal for digital printers and medium-volume production environments, this 2013 model integrates sheet feeding, staple binding, folding, and front trimming into a single streamlined workflow. With a production speed of up to 3,000 booklets per hour (A5 size), it significantly reduces manual intervention while ensuring consistent, high-quality results. The system is particularly suited for commercial print shops, in-plant printing departments, and businesses requiring efficient, on-demand booklet production.
Key Technical Aspects:
Dimensions and Specifications : The Duplo System 3500, including the DSF-2200 Sheet Feeder and DBM-3500 Trimmer, measures approximately 4.48 meters in length, 0.75 meters in width, and 1.03 meters in height, with a combined weight of 395 kg. It operates on a 230V, 50Hz power supply and is designed for semi-automatic to fully automatic workflows, ensuring efficient integration into existing production lines.
Paper Handling : The system accommodates a wide range of paper sizes, from 105 × 148 mm to 320 × 460 mm, and supports paper weights between 52 gsm and 300 gsm. The DSF-2200 Sheet Feeder features an upper tray with a capacity of ~65 mm and a lower tray with ~200 mm, feeding sheets at speeds up to 200 sheets per minute. The DBM-3500 Booklet Maker can handle up to 20 sheets (plus cover) per booklet, with two stitch heads for secure binding and folding.
| Model | Duplo-System 3500 |
|---|---|
| Manufacturer | Duplo |
| Year | 2013 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | 46 Christchurch Rd, Ringwood BH24 1DW, UK |
