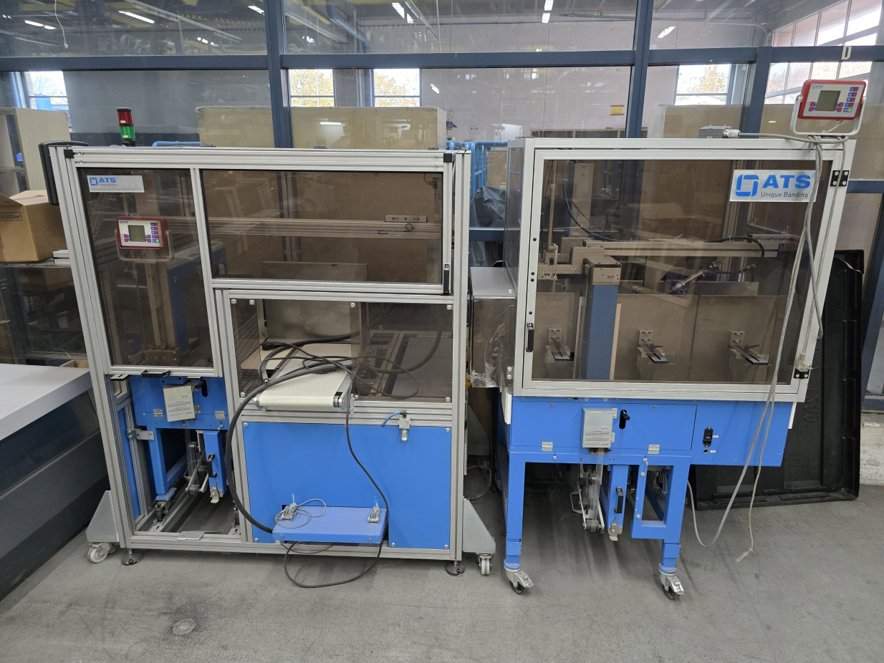

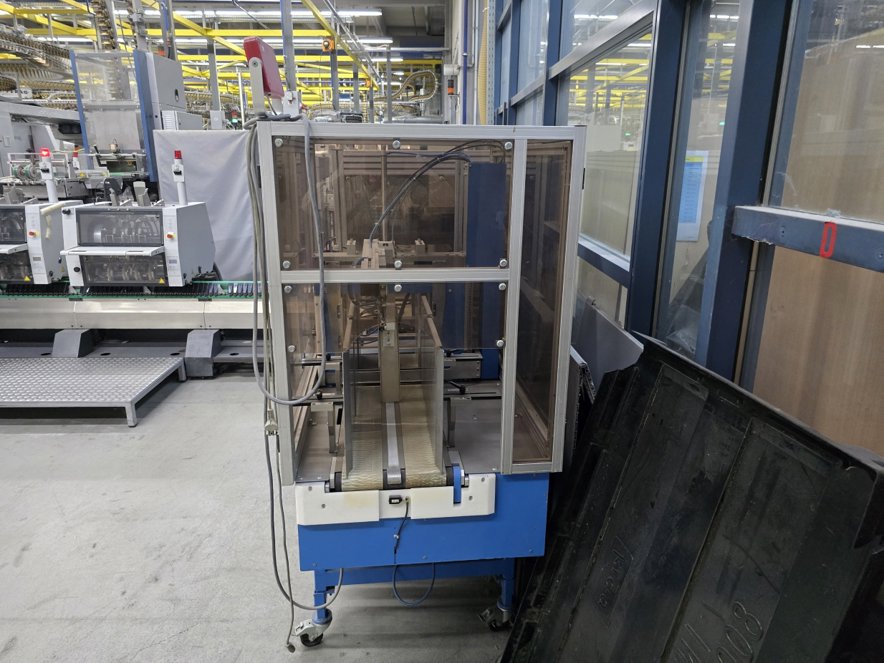

TRS-L-CL - ATS

Key Technical Aspects:

Dimensions and Specifications : The TRS-L-CL ATS has a compact footprint of 4,500 mm in length, 1,500 mm in width, and 1,800 mm in height. It weighs approximately 2,500 kg and has a maximum production capacity of 100 meters per minute.

Paper Handling : The machine features a high-capacity unwind unit that can accommodate rolls up to 1,000 mm in diameter and 500 mm in width. The rewind unit has a maximum diameter of 800 mm and a width of 500 mm. The paper handling system is equipped with advanced features such as automatic tension control, web guiding, and edge detection.

Printing Unit : The TRS-L-CL ATS is equipped with a high-precision flexographic printing unit that offers a maximum print width of 420 mm and a repeat length of up to 800 mm. The printing unit features 6 colors and has a maximum print speed of 100 meters per minute at a resolution of 1,200 dpi.

Ink System : The machine uses a water-based flexographic ink system with a capacity of 10 liters per color. The ink system features advanced features such as automatic ink circulation, ink level monitoring, and ink temperature control.

Plate Cylinder : The plate cylinder has a diameter of 300 mm and a repeat length of up to 800 mm. It is designed for high-precision printing and features advanced features such as automatic plate mounting and demounting, and plate cleaning.
