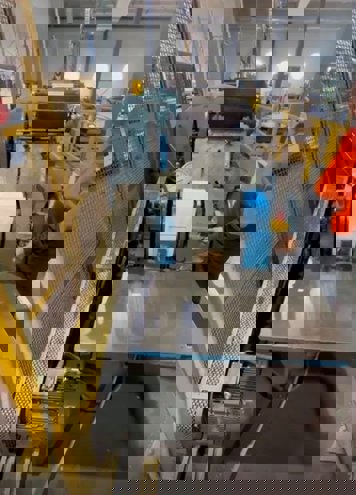

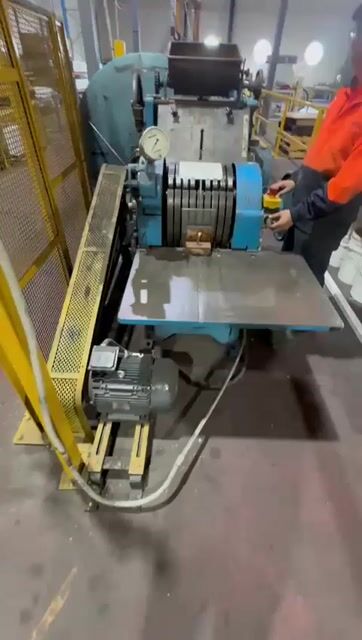

Windmoeller & Hoelscher - Truimph 3

Machine Description

Manufactured by Windmoeller & Hoelscher, is a versatile, high-performance paper bag production line capable of running at speeds up to 65 metres per minute. It accommodates bag widths from 70–310 mm and paper widths from 250–750 mm, processing lightweight papers between 35–70 gsm. Equipped with three printing units and supporting roll diameters up to 1,000 mm, the machine offers a wide range of print cylinder repeats (230–630) for flexible branding and design requirements. Gusset capabilities from 30–90 mm across multiple bag widths (125–300 mm) enable efficient production of retail, takeaway, and industrial paper bags with consistent quality and reliable throughput..
.
Running Speed 65 metres per minute.
Minimum width bag size 70 mm.
Maximum width bag size 310 mm.
Minimum paper width 250 mm.
Maximum Paper width 750 mm.
Minimum Paper gsm 35 gsm.
Maximum Paper gsm 70 gsm.
Printing units 3.
Maximum Roll O/D 1,000 mm.
Print Cylinders 230, 260, 300, 310, 320, 340, 360, 380, 390, 400, 430, 470, 530, 630 Repeats .
Gussett sizes 30 - 90 mm on the following width bags: 125, 160, 175, 200, 220, 240, 260, 275, and 300 mm wide...
