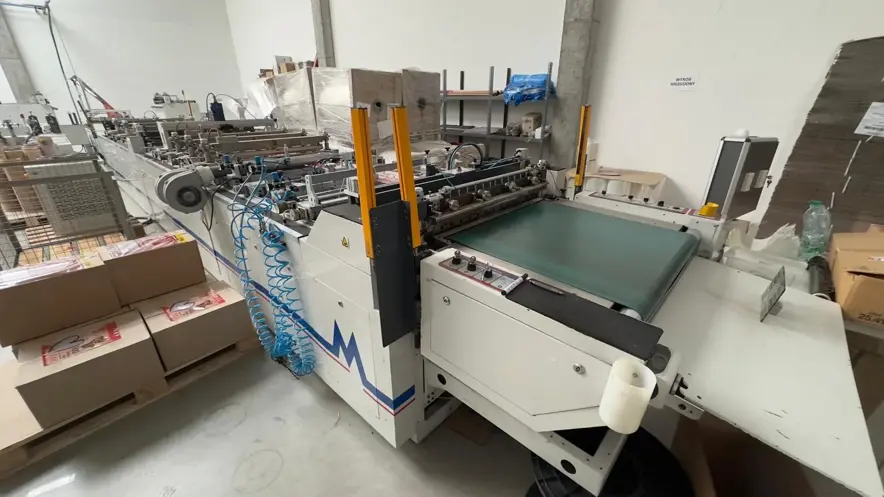

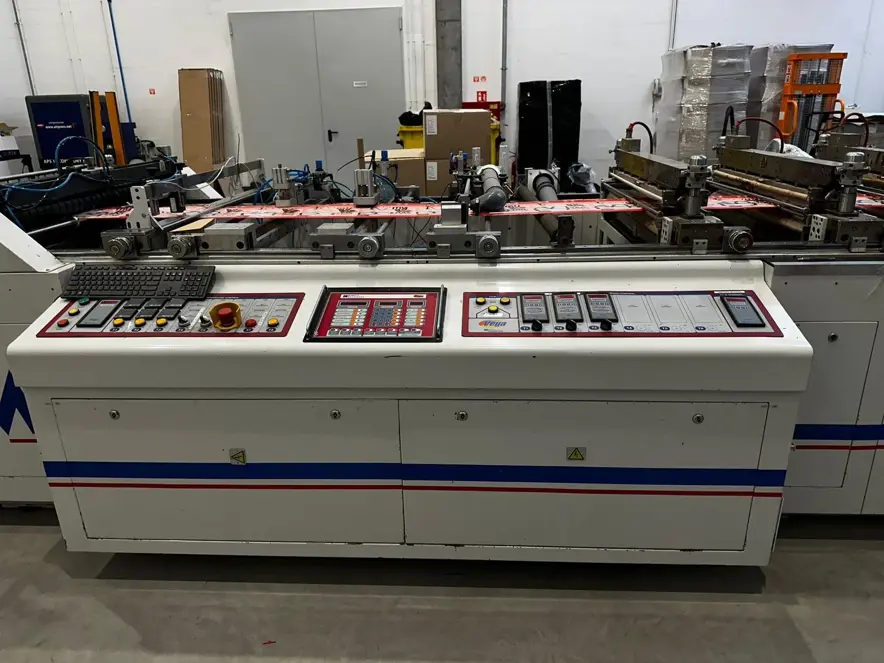

Mamata - Vega 820

Machine Description

Designed for the production of zipper doypack pouches, sachets, as well as Stabilo-type pouches (without zipper)..
.
Packaging type: Zipper doypack, sachet, Stabilo.
.
15,000 operating hours.
.
Included:.
.
Water cooler (chiller) for seal cooling.
.
PEARL punching tool for creating round holes in doypacks.
.
Die-cutting sets for: Euro-holes, Easy-open features, Rounded corners, Pencil notches.
.
Two parallel zipper preheating stations (for increased performance).
.
Capability to seal three webs simultaneously.
.
Possibility to produce Stabilo-type pouches (without zipper).
.
Functional Capabilities:.
.
Production of Doypacks, 3-side seal bags, and Stabilo pouches (no zipper).
.
Three-web operation (top/bottom webs + middle insert for gussets or ZIP).
.
Double preheating ZIP stations for higher throughput.
.
Transverse and longitudinal sealing (metal/metal and metal/rubber, up to 40 mm seal width).
.
Full servo-drive system: index, seal, cut, tension, ZIP.
.
Die-cut modules: Euro-hole, V-notch, easy-open, rounded corners.
.
Mechanical speed: up to 210 cycles/minute.
.
Film width: up to 1520 mm.
.
Pouch width: up to 820 mm.
.
Draw length: up to 610 mm (or up to 1220 mm in skip mode).
.
Suitable for mono-materials and multi-layer laminated films
