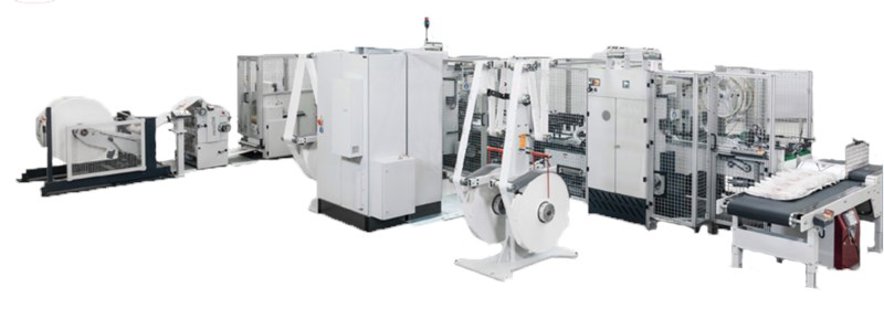

Machine Description
Paper bag width 180-350mm.
Paper width 600-1040mm.
Paper length 340-600mm.
Bag bottom width 80-150mm.
Paper thickness 120-200g/m2.
Bag mouth fold width 40-60mm.
Max. speed 40-75pcs/min.
Twisted handle diameter ø4-6mm.
Handle patch length 152mm.
Handle patch width 40-55mm.
Handle Height(with sheet) 170-185mm.
Patch paper thickness 120-150g/m2.
Patch paper roll width 80-110mm.
Power 22KW, 380V/50HZ.
Weight 20000KGS.
Dimension L15000*W5500*H3100mm.
Power 3 phases, 380V±10%, 50 Hz.
Compressed Air pressure: 0.6 MPa.
oil and humidity: ?8 mg/m3.
Installation Height Max. altitude: 1500 m.
Ambient Requirement relative moisture: Max. 65% when 40 ?.
temperature range: 10~40 ?
Model | Gutenberg-Master Bag SFT 350 |
---|---|
Manufacturer | Gutenberg |
Year | 2022 |
Machine Availability | Immediately from stock |
Machine Condition | In Stock |
Price | On Request |
Location | Netherlands |
About Gutenberg - Master Bag SFT 350
The Gutenberg Master Bag SFT 350 is a high-performance flexographic printing machine designed for printing on flexible packaging materials, such as plastic bags, pouches, and wrappers. This machine is ideal for medium to large-scale packaging converters and printers who require high-quality prints at fast production speeds. Key features of the Master Bag SFT 350 include its advanced servo-driven technology, high-precision registration, and efficient drying system, making it an excellent choice for printing complex designs and vibrant colors on a wide range of substrates. Typical applications include printing on plastic bags, stand-up pouches, and flexible packaging materials for the food, pharmaceutical, and cosmetic industries.
Key Technical Aspects:
Dimensions and Specifications : The Gutenberg Master Bag SFT 350 has a machine length of 12,000 mm, a machine width of 2,500 mm, and a machine height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing width of 1,350 mm.
Paper Handling : The Master Bag SFT 350 features a high-capacity unwinder with a maximum diameter of 1,200 mm and a maximum weight of 2,000 kg. The machine is equipped with a servo-driven rewind unit with a maximum diameter of 1,200 mm and a maximum weight of 1,500 kg. The paper handling system also includes a web guide system with automatic tension control and a dancer roller system for precise web alignment.
Printing Unit : The printing unit of the Master Bag SFT 350 features 8-10 colors and a maximum printing speed of 300 m/min. The machine uses a flexographic printing process with a resolution of 1,200 dpi and a repeat length of 300-1,000 mm. The printing unit is equipped with a high-precision registration system and an advanced drying system with hot air blowers and UV lamps.
Ink System : The Master Bag SFT 350 uses a water-based flexographic ink system with a maximum ink capacity of 20 liters per color. The ink system features a closed-loop ink circulation system with automatic ink level control and an ink temperature control system.
Plate Cylinder : The plate cylinder of the Master Bag SFT 350 has a diameter of 450 mm and a maximum plate thickness of 6 mm. The plate cylinder is equipped with a pneumatic clamping system and a quick-change plate system for efficient plate changing.
