Gutenberg - Master Bag 550 TL

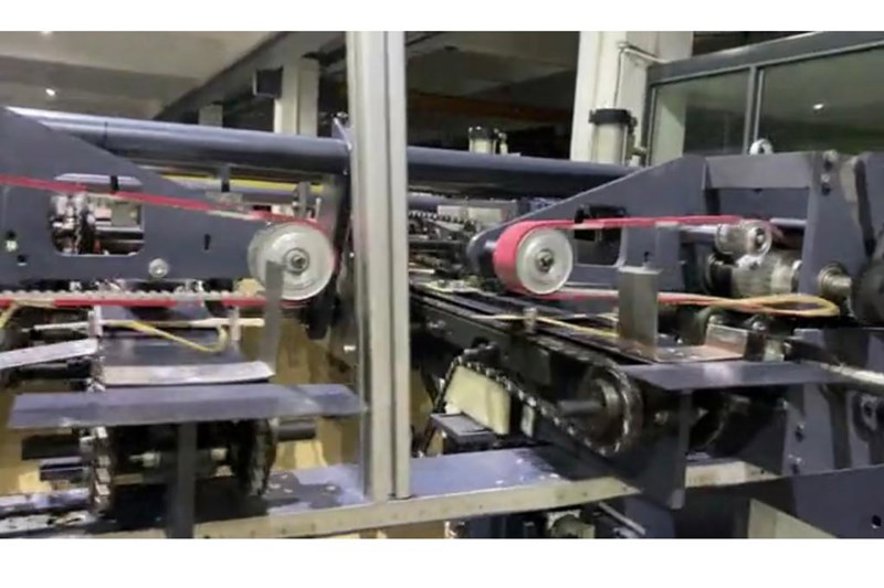

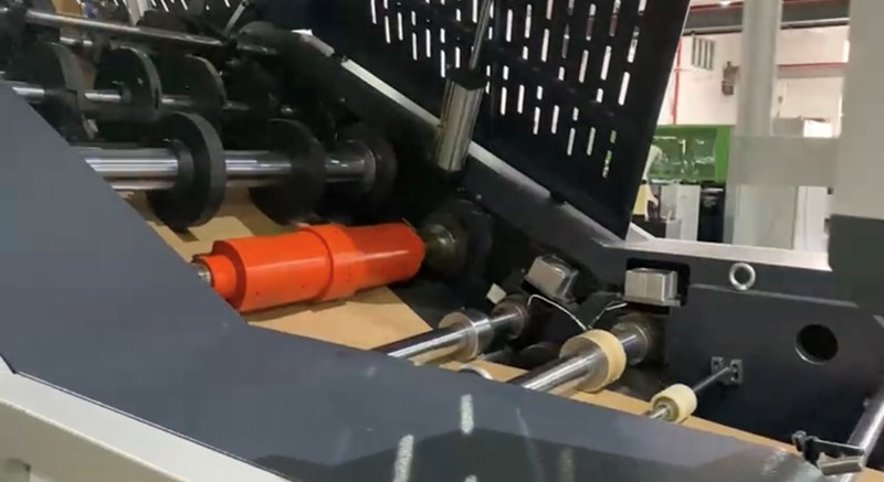

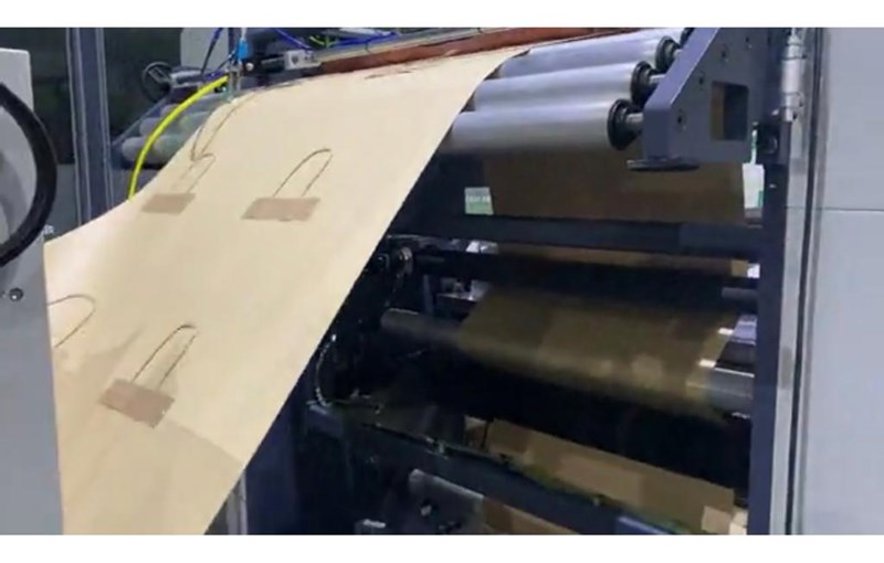

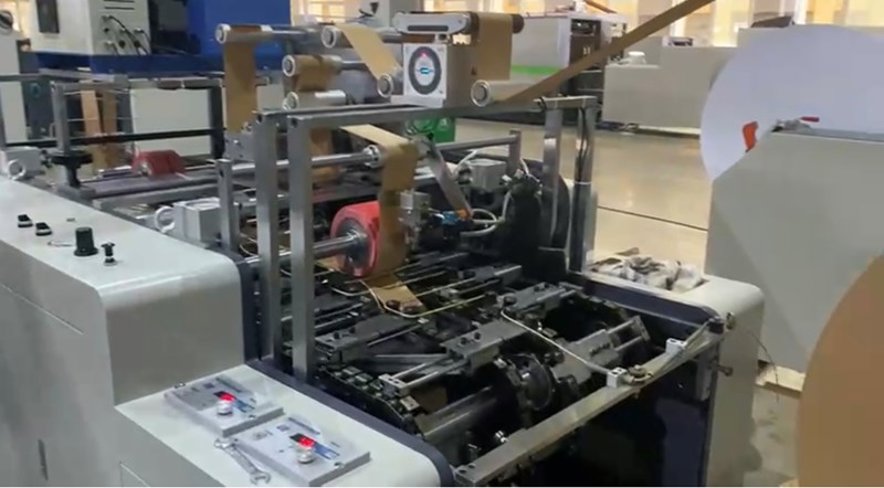

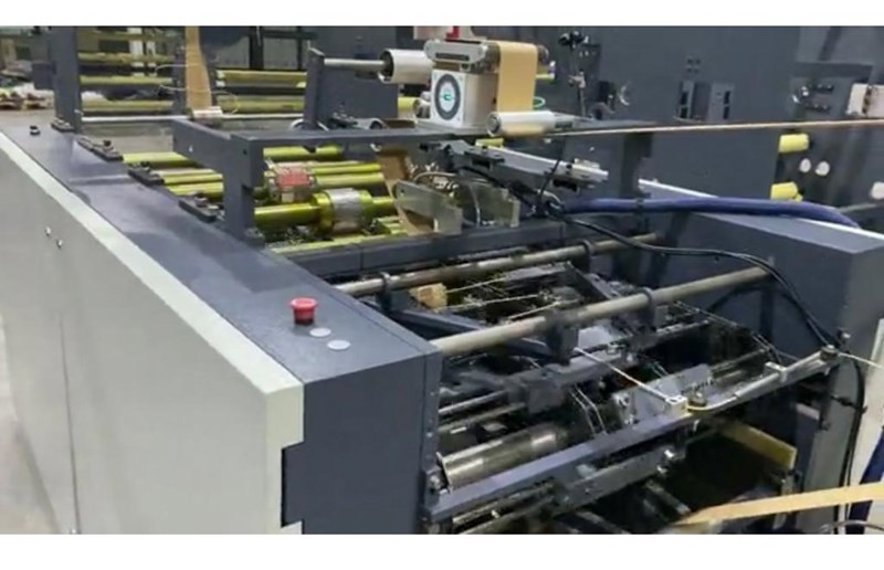

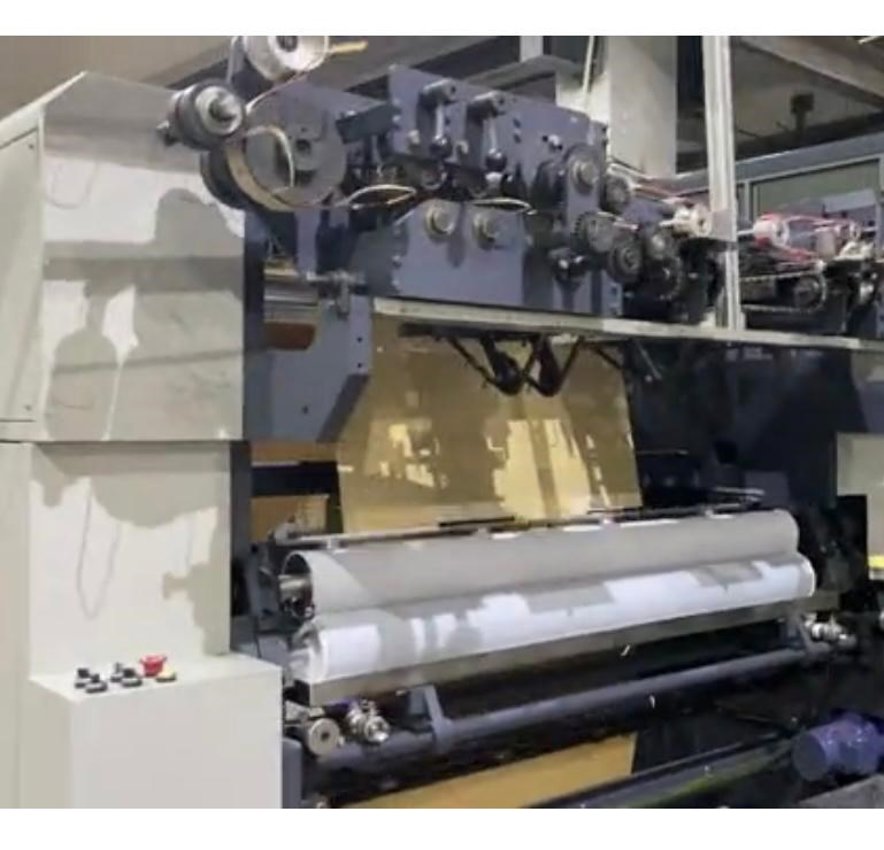

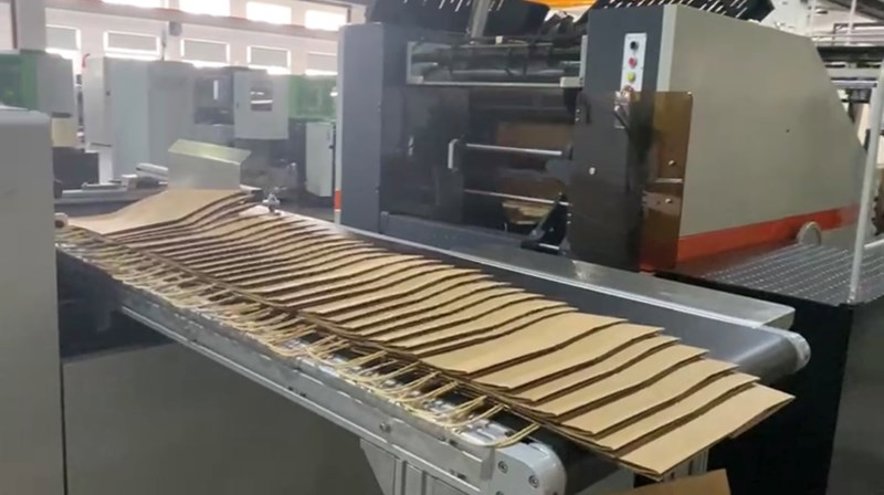

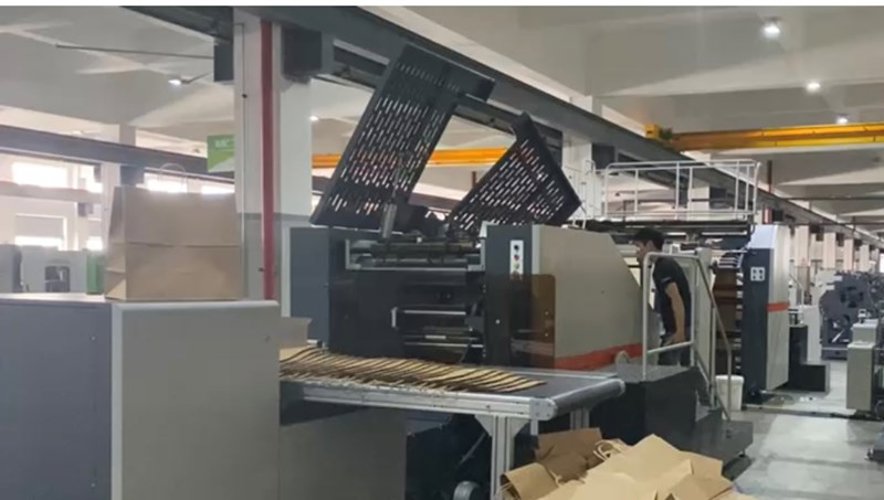

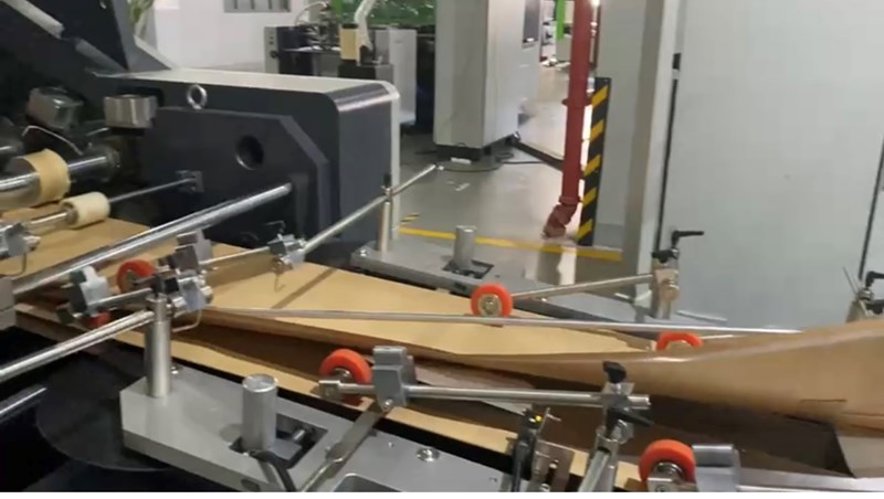

Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL
Bag making Gutenberg Master Bag 550 TL

Machine Description

Paper bag cutting length (C) 380-650mm.
(380-770mm).
Paper bag width (W) 220-540mm.
Paper bag bottom width (H) 80-250 mm.
Paper thickness 90-170g/m2.
Max. Paper bag speed 120pcs/min.

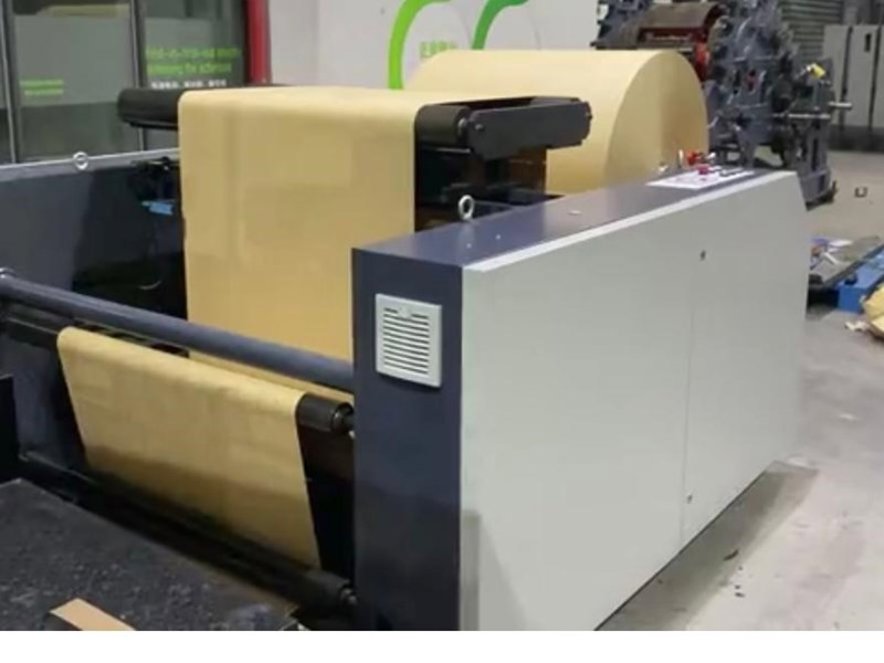

Paper roll width 630-1510mm.
Paper roll diameter Dia1200mm.
The inner diameter of the paper roll Dia is 76mm.
Handle rope height 110-120mm.
Handle rope diameter Dia4-6mm.
Handle sheet length 190.5mm.
Handle sheet width 80-100mm.
Machine supply 380V, 50Hz, three-phase, four wires.
Power 39KW.
Weight 20000 KGS.
Dimension L14000*W6000*H3100mm.
PLC Yaskawa Japan.
Servo Motor Yaskawa Japan.
Servo Driver Yaskawa Japan.
Cylinder AirTac Taiwan.
Low Voltage Electrical Apparatus Schneider Germany.
Normal Button Schneider Germany.
Emergency Button Schneider Germany.
Bearing NSK Japan.
Solenoid valve AirTac Taiwan.
Photoelectric Eye Color Code Tracking SICK Germany.
.
a turnkey solution for your Paper bag business.
.
Shipping.
Providing you with a professional container logistic service worldwide.
.
Insurance.
covers damages for cargo. Risks covered. Loss or damage during end-to-end transportation.
.
Installation:.
10 days installation, running-in and training..
.
Support.
a global team of service technicians.
provides dedicated 24/7 support, primarily based.
on remote software access in real-time, meaning.
they can support operators while the machine.
is running. If required, Gutenberg can also provide.
On-Site Support..
.
Warranty.
12-month warranty/2000 operating hours..
Warranty on units, OEM products and spare.
parts (not consumables)..
.
International.
Production Standards.
Master bag designs machines with a clear focus.
on automation through Industry 4.0, cloud.
computing, and the Internet of Things (loT). This.
allows for real-time monitoring, full remote.
control through, and consolidation of machine.
and job data in the cloud.

ModelGutenberg-Master Bag 550 TL
ManufacturerGutenberg
Year2023
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Gutenberg - Master Bag 550 TL

The Gutenberg Master Bag 550 TL is a high-performance sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is ideal for printing large quantities of high-quality materials, such as packaging, labels, and commercial prints. Key features of the Master Bag 550 TL include its advanced paper handling system, high-speed printing capabilities, and precise ink control. The benefits of this machine include increased productivity, reduced waste, and exceptional print quality. Typical applications of the Master Bag 550 TL include printing for the packaging, label, and commercial industries.

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg Master Bag 550 TL has a length of 7,500 mm, a width of 2,500 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour.

Paper Handling : The Master Bag 550 TL features a advanced paper handling system with a maximum sheet size of 550 x 750 mm and a minimum sheet size of 350 x 500 mm. It has a 3,000-sheet feeder capacity and a 2,000-sheet delivery capacity. The machine is also equipped with an automatic sheet alignment system and a precision sheet registration system.

Printing Unit : The printing unit of the Master Bag 550 TL features a maximum printing speed of 15,000 sheets per hour and a maximum printing resolution of 250 lpi. It uses a conventional offset printing technology with a 7-color printing capability.

Ink System : The Master Bag 550 TL uses a high-precision ink system with a maximum ink capacity of 20 kg per color. It features an automatic ink supply system and an ink temperature control system to ensure consistent ink flow and optimal print quality.

Plate Cylinder : The plate cylinder of the Master Bag 550 TL has a diameter of 550 mm and a circumference of 1,750 mm. It features a precision plate registration system and an automatic plate changing system to ensure fast and efficient plate changes.
