Gutenberg - Master Bag 550

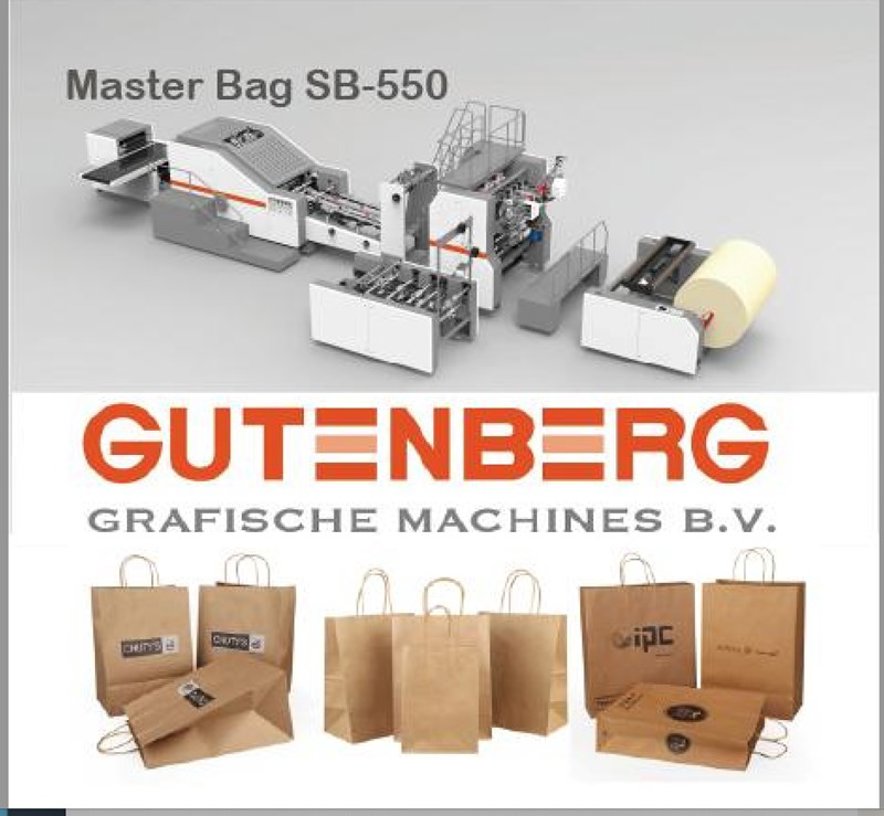

Bag making Gutenberg Master Bag 550

Machine Description

Block bottom MASTER BAG 550 Carrier Bag Machine .
working from the roll, In-line twisted loop handle attachment unit, For twisted paper handles.
Paper bag cutting length (C) 380-650mm.
(380-770mm) .
Paper bag width (W) 220-540mm .
Paper bag bottom width (H) 80-250 mm .
Paper thickness 90-170g/m2 .
Max. Paper bag speed 120pcs/min.
Paper roll width 630-1510mm.
Paper roll diameter Dia1200mm.
Inner diameter of the paper roll Dia 76mm.
Handle rope height 110-120mm.
Handle rope diameter Dia4-6mm.
Handle sheet length 190.5mm.
Handle sheet width 80-100mm.
Machine supply 380V, 50Hz, three-phase, four wires.
Power 39KW.
Weight 20000 KGS.
Dimension L14000*W6000*H3100mm.
PLC Yaskawa Japan.
Servo Motor Yaskawa Japan.
Servo Driver Yaskawa Japan.
Cylinder AirTac Taiwan.
Low Voltage Electrical Apparatus Schneider Germany.
Normal Button Schneider Germany.
Emergency Button Schneider Germany.
Bearing NSK Japan.
Solenoid valve AirTac Taiwan.
Photoelectric Eye Color Code Tracking SICK Germany

ModelGutenberg-Master Bag 550
ManufacturerGutenberg
Year2022
Machine AvailabilityImmediately
Machine ConditionIn Stock
Price400000.00 EURO
LocationNetherlands

About Gutenberg - Master Bag 550

The Gutenberg Master Bag 550 is a high-performance bag printing machine designed for the packaging industry. This machine is categorized as a flexographic printing press, specifically designed for printing on bags and other flexible packaging materials. The Master Bag 550 is engineered to provide high-quality prints at fast production speeds, making it an ideal solution for businesses that require large quantities of custom-printed bags. Key features of this machine include its advanced printing technology, precise registration, and efficient drying system, which enable it to produce high-quality prints with vibrant colors and precise details. The Master Bag 550 is commonly used in various industries, including food, pharmaceutical, and cosmetic packaging.

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg Master Bag 550 has a footprint of 13,780 mm (542 in) in length, 2,500 mm (98 in) in width, and 2,200 mm (87 in) in height. It weighs approximately 6,500 kg (14,330 lbs) and has a maximum printing width of 550 mm (22 in). The machine's maximum printing speed is 250 meters per minute (820 ft/min).

Paper Handling : The Master Bag 550 features a high-capacity unwinder with a maximum diameter of 1,200 mm (47 in) and a maximum weight of 1,500 kg (3,300 lbs). The machine is equipped with a precision registration system, ensuring accurate print registration and minimizing waste. The output conveyor has a length of 2,000 mm (79 in) and a width of 600 mm (24 in), allowing for efficient and organized bag collection.

Printing Unit : The Gutenberg Master Bag 550 utilizes a flexographic printing technology with a maximum of 8 colors. The printing unit features a print repeat length of 350-800 mm (14-32 in) and a print resolution of 175-300 lines per inch. The machine's printing speed can be adjusted between 100-250 meters per minute (328-820 ft/min) depending on the application.

Ink System : The Master Bag 550 uses a water-based flexographic ink system with a maximum ink capacity of 20 liters (5.3 gal) per color. The machine features an advanced ink circulation system, ensuring consistent ink flow and minimizing ink waste.

Plate Cylinder : The plate cylinder has a diameter of 350 mm (14 in) and a length of 550 mm (22 in). It features a precision-engraved ceramic coating, ensuring high-quality print reproduction and minimizing plate wear. The plate cylinder is designed for easy mounting and demounting, allowing for quick job changes and minimizing downtime.
