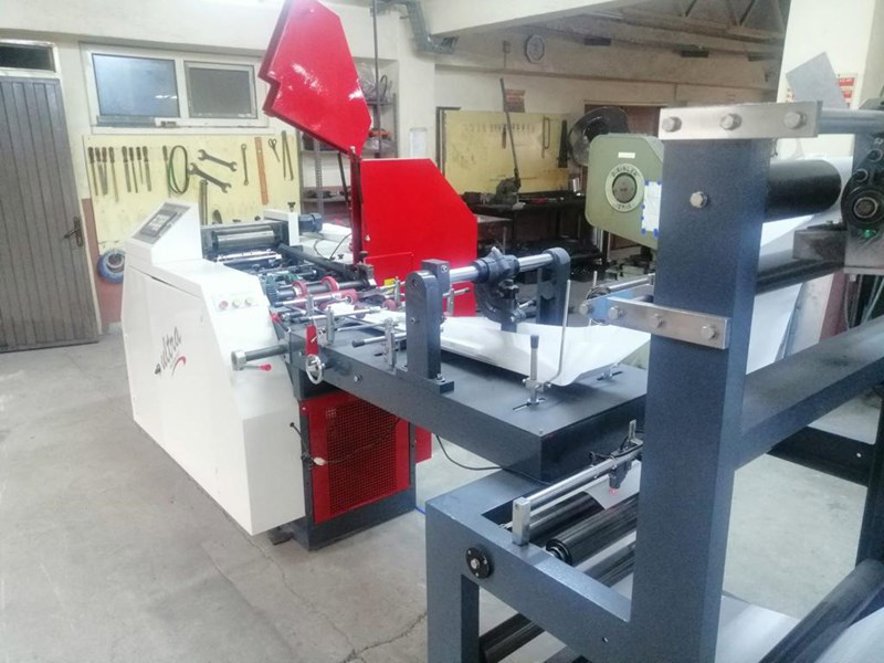

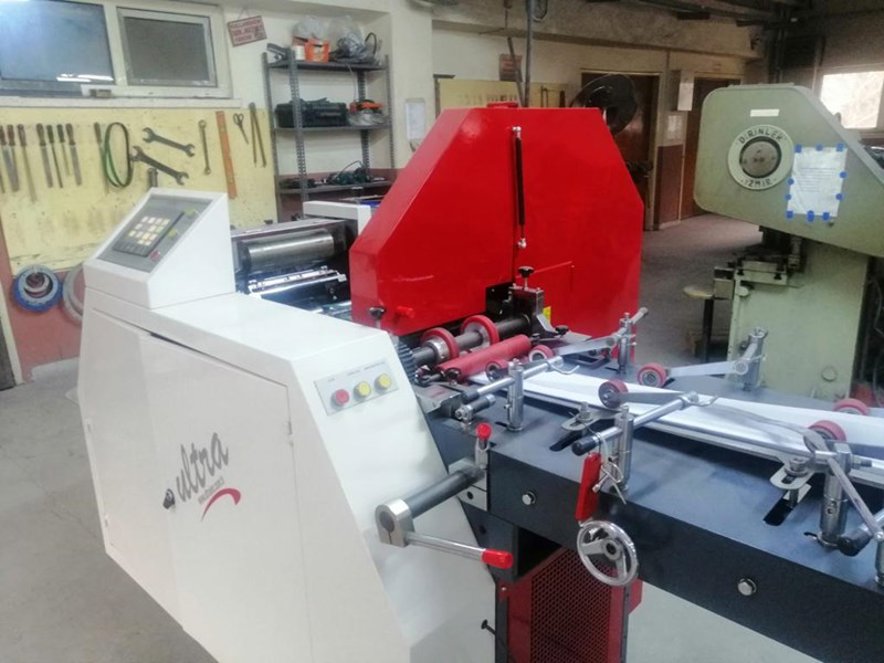

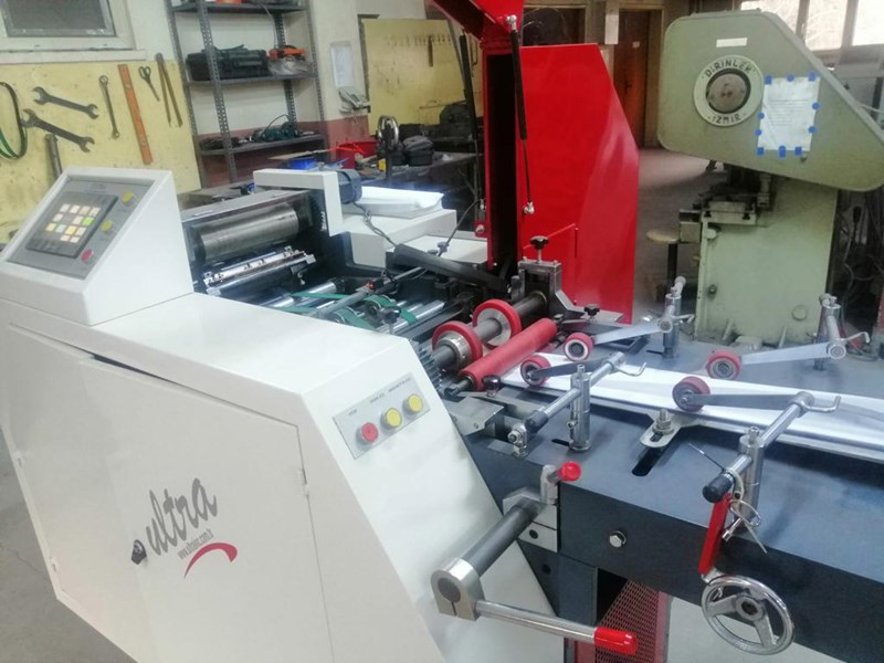

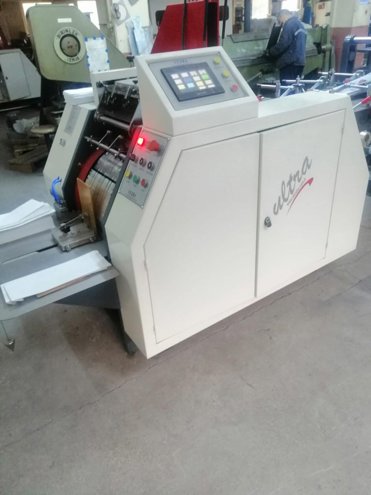

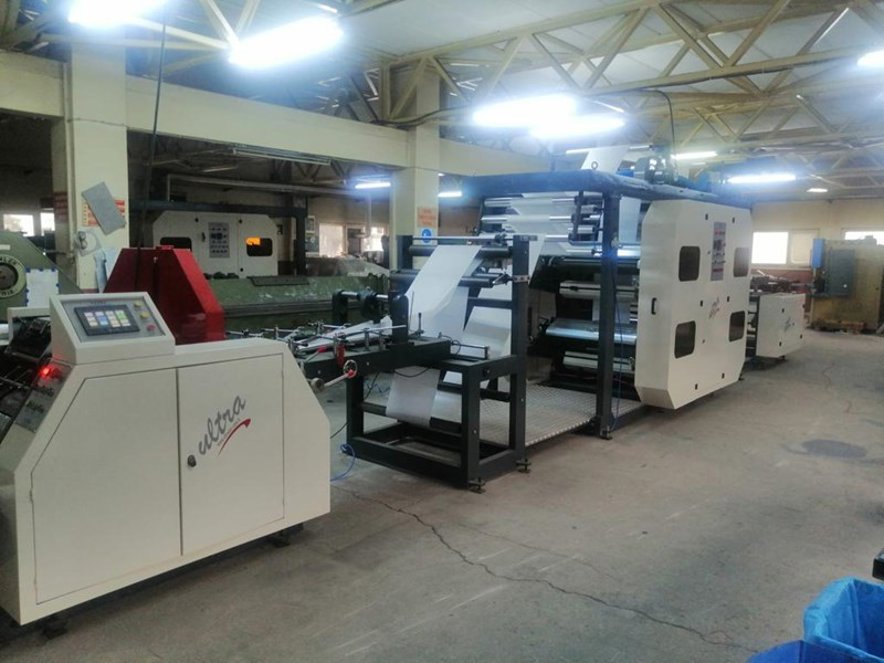

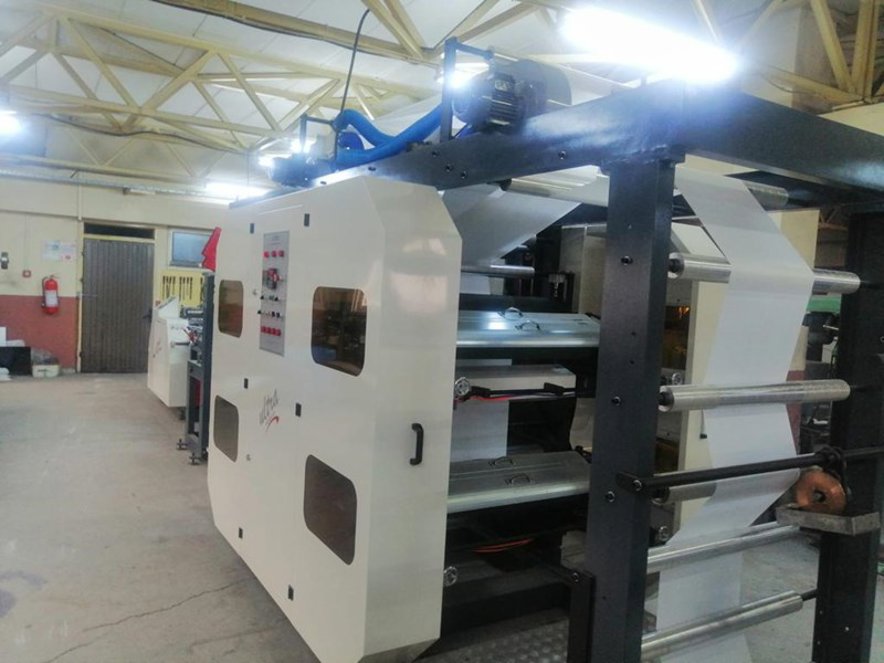

Machine Description

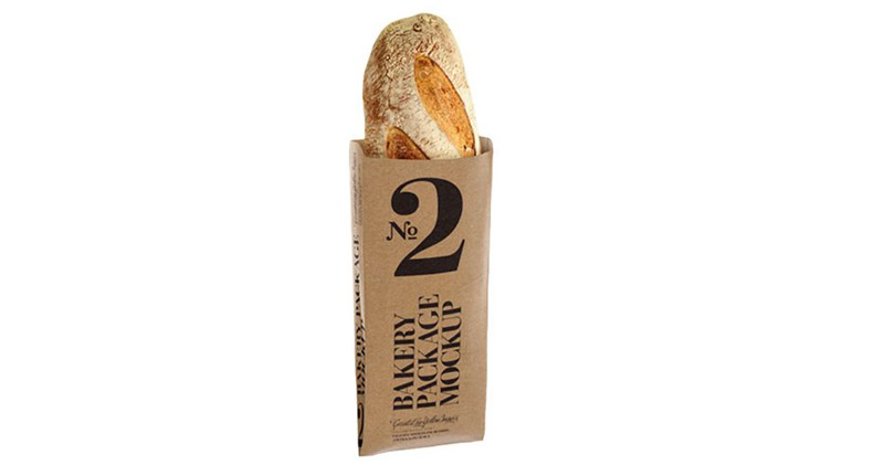

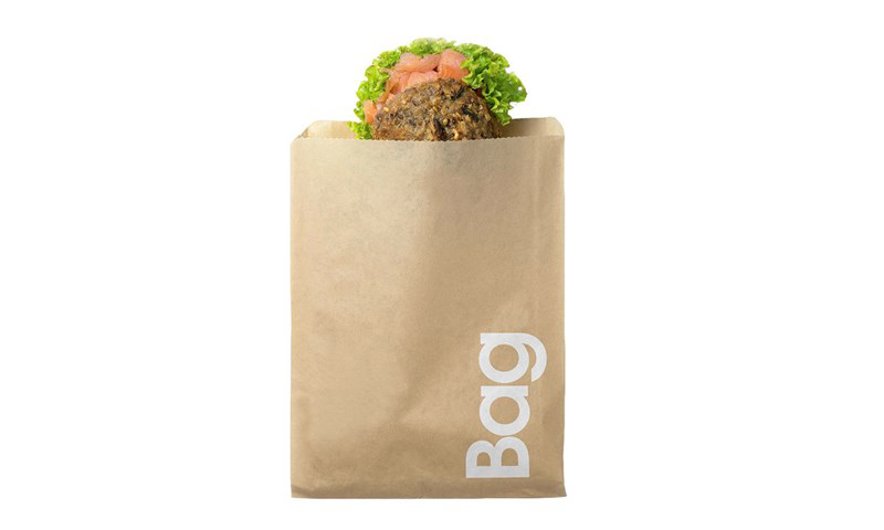

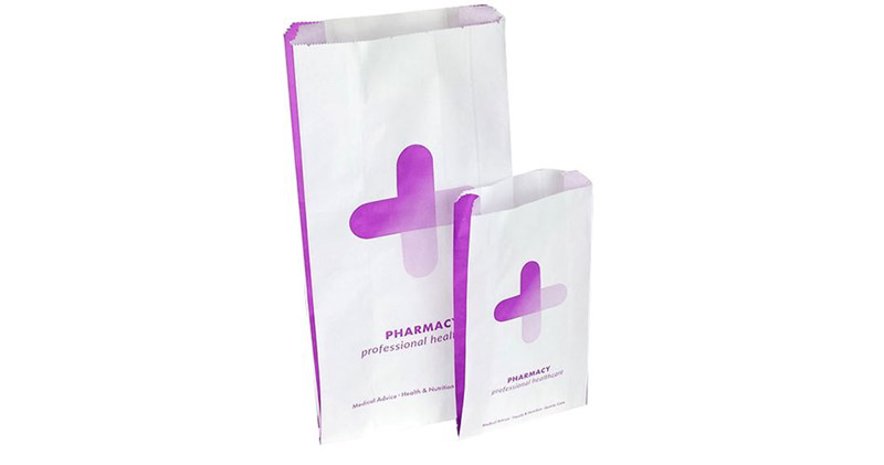

Ideal for producing a variety of daily eco-friendly paper bags widely used in bakeries, pharmacies, fast food restaurants, Coffee shops, Supermarkets, and Retail Outlets. They are printed with the names of stores and brands..

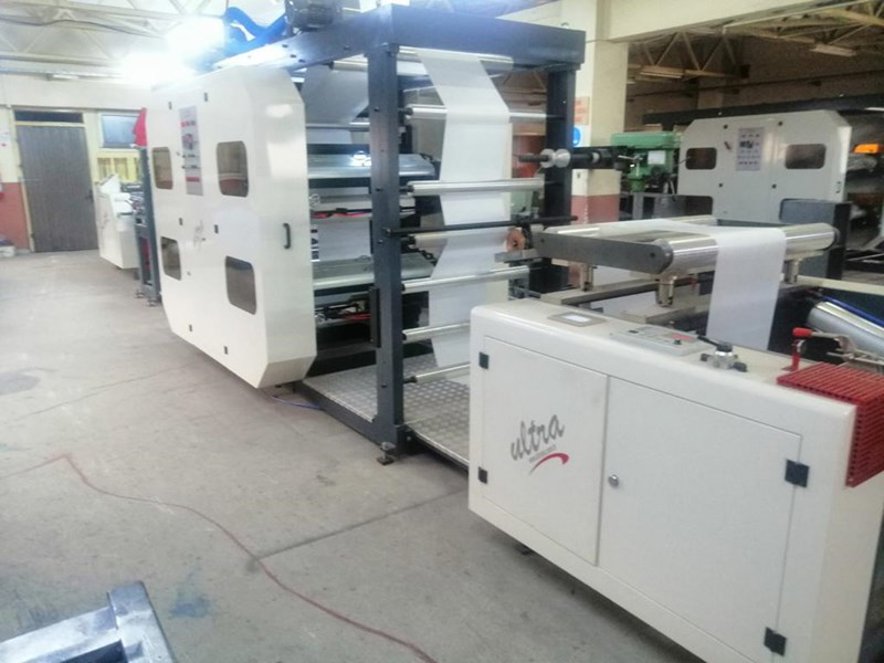

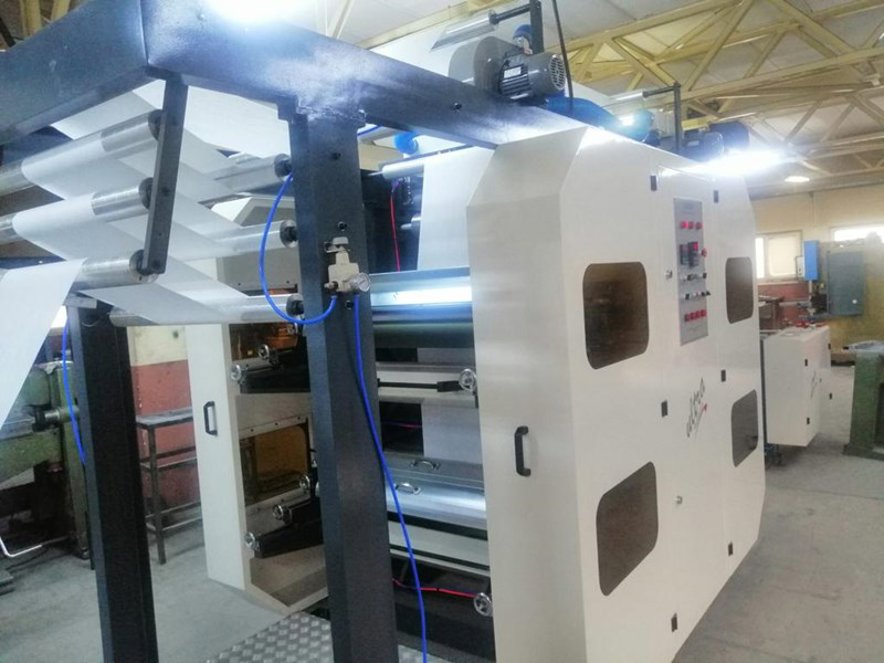

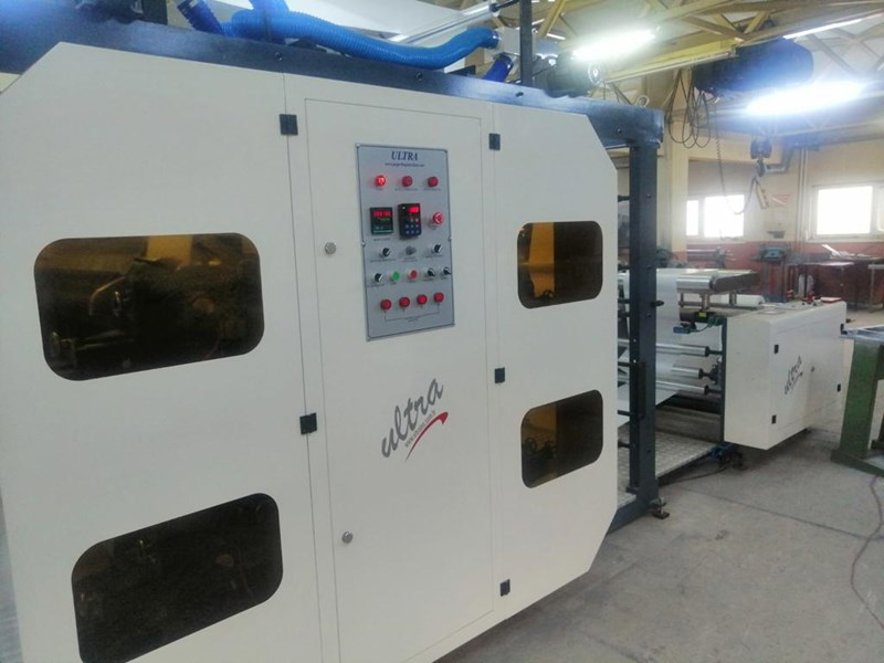

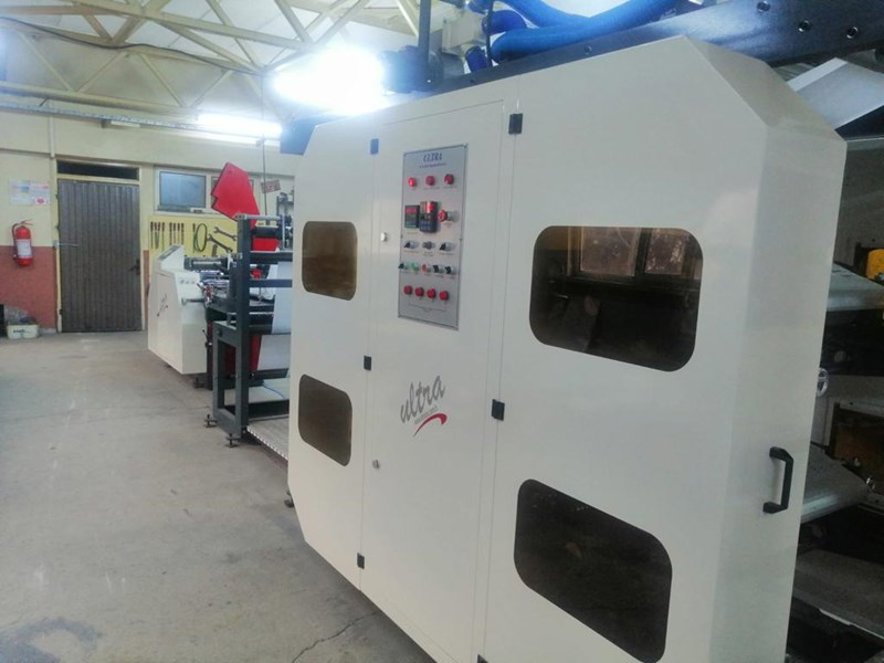

Master bag 400 has a FLEXO printing unit designed for doing basic, one-colour printing capabilities to four colours..
.
Features.
• The Control System: The machine uses Mitsubishi Japan electrical control system, to ensure the machine running more stable..

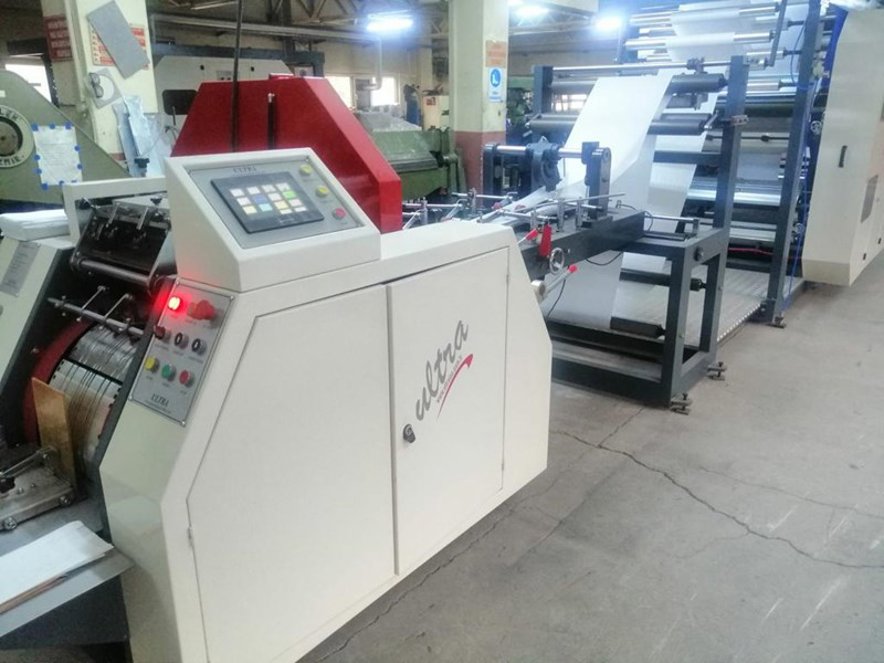

• The Screen: With high speed and high precision, adopt humanized design touch screen..
• The Speed: Perfect high-speed perforating double knife system. The collection unit uses a special system, sufficiently solving the collection and counting problem..

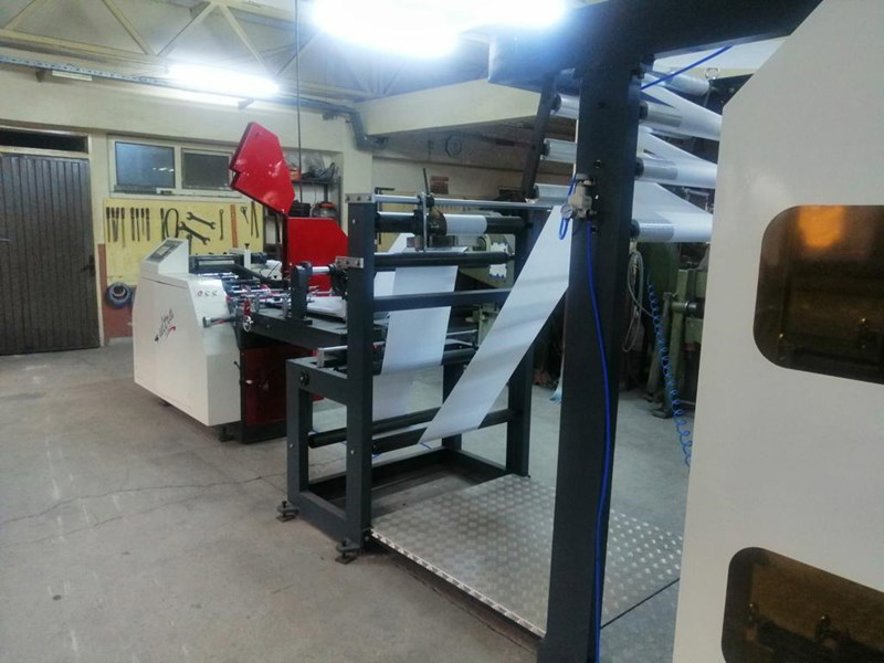

• The Stand: Roll stand equipped with a Hydraulic lifting tension control system..
• The Color: Printing capabilities till four colours can be upgraded any time the main body is prepared easily to be installed..
• The Senor: Senor to achieve the automatic colour mark position adjustment..
• The Air Shaft: The feeding roller is an air shaft: easy to lock the paper roller by air..
• The Tension: The paper tension adopts a magnetic powder brake, which is more stable and evenly..

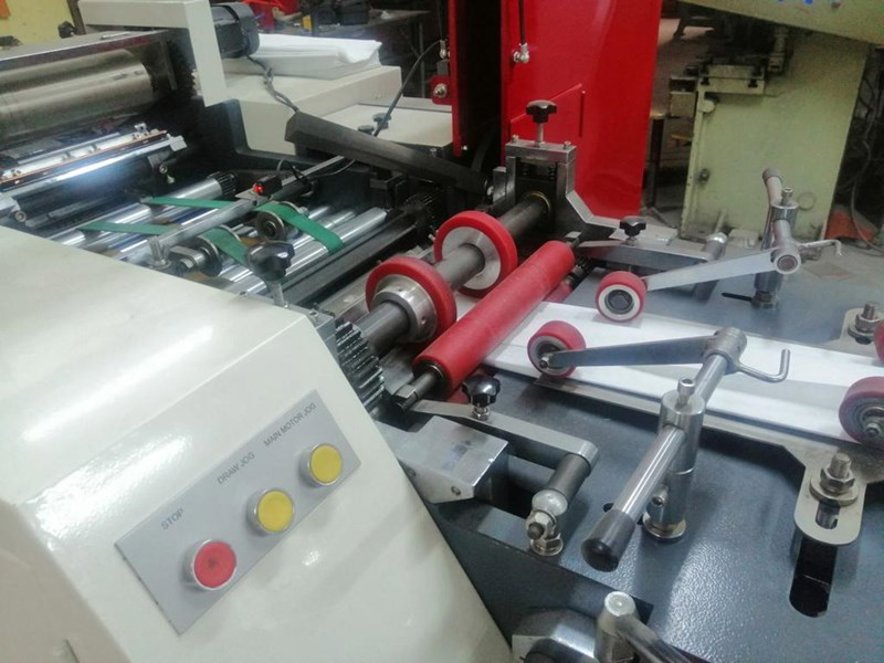

• The Gluing System: Automatically bottom glueing system with glue position detection Photoelectric sensor..
• The Ultrasonic: Adopts the ultrasonic system sensor, will not cause errors because of paper dust, more accurate than ordinary photoelectric sensors..
• The Paper Sheet: Paper sheet the automatic source correction system: fast response and make sure saving the correction time..
• The Servo System: Bag tube body transaction and the main motor all by servo motor system..
• The Paper Tube: The paper tube forming adopts an integrated tube forming adjustment..
• The Cut: Mechanical cutting system can make the cut in good quality..
.
Technical Data.
• Bag Length (L) : 160-450 mm.
• Bag Width (W) : 80-250 mm.
• Side Insert Width (G) : 20-120 mm.
• Bag Mouth Height: 15/20 mm.
• Max. Bag Speed : 100-400 pcs/min.
• Paper Thickness: 40-80 g/m2.
• Paper Roll Width: Max 800 mm.
• Paper Roll Diameter: Día 1000 mm.
• Inner Diameter of the Paper Roll: Día 76 mm.
• Max. Printing Roller Width: 800 mm.
• Max. Printing Speed: 50 meters/mins.
• Printing Plate Thickness: 2.38 mm.
• Machine Supply: 380V, 50Hz, 3 phase, 4 wires.
• Power: 22 KW.
• Weight: 6000 KGS.
• Dimension: L 8500 x W 2200 x H 2500 mm

ModelGutenberg-Master Bag 400
ManufacturerGutenberg
Year2022
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Gutenberg - Master Bag 400

The Gutenberg Master Bag 400 is a high-performance flexographic printing machine designed for the production of flexible packaging materials, such as plastic bags, pouches, and wraps. This machine is ideal for medium to large-scale packaging converters, offering exceptional print quality, high-speed production, and efficient operation. Key features of the Master Bag 400 include its advanced flexographic printing technology, precise registration control, and robust construction, making it suitable for demanding production environments. Typical applications of this machine include printing on a wide range of flexible substrates, including polyethylene, polypropylene, and laminated materials.

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg Master Bag 400 measures 14,500 mm in length, 2,500 mm in width, and 2,200 mm in height, with a total weight of approximately 12,000 kg. The machine has a maximum web width of 1,400 mm and a maximum repeat length of 800 mm.

Paper Handling : The Master Bag 400 features a high-capacity unwind system with a maximum roll diameter of 1,200 mm and a maximum roll weight of 2,000 kg. The machine is equipped with a precision registration control system, ensuring accurate and consistent print registration. The output system includes a rewind unit with a maximum roll diameter of 1,000 mm and a maximum roll weight of 1,500 kg.

Printing Unit : The Gutenberg Master Bag 400 is equipped with eight flexographic printing units, each featuring a 1,400 mm impression cylinder and a 1,400 mm anilox roll. The machine operates at a maximum print speed of 400 meters per minute, with a print resolution of up to 2,540 dpi. The printing units utilize a UV-curing system for rapid drying and high-quality print results.

Ink System : The Master Bag 400 features a closed-loop ink system, utilizing low-migration UV inks specifically designed for flexible packaging applications. The ink system has a total capacity of 200 liters, with each printing unit equipped with a 25-liter ink tank.

Plate Cylinder : The plate cylinder on the Gutenberg Master Bag 400 has a diameter of 1,400 mm and a repeat length of 800 mm. The plate cylinder is designed for easy plate mounting and demounting, allowing for quick job changes and minimizing downtime.
