Machine Description

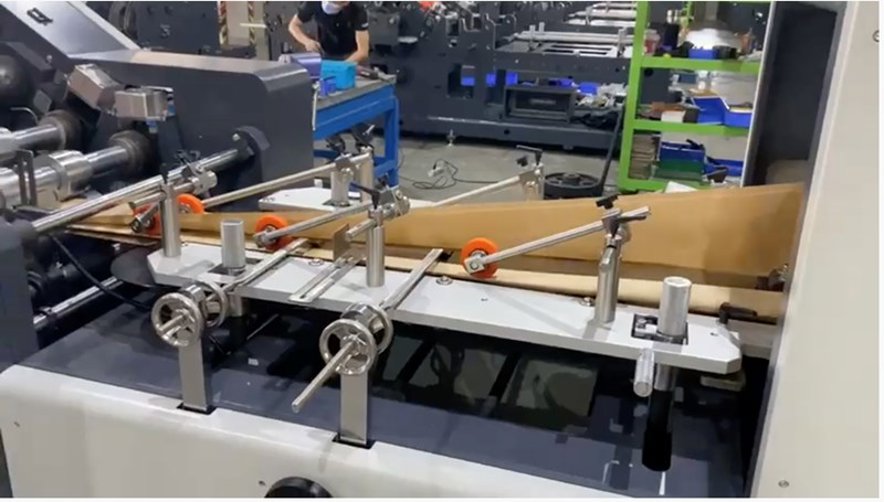

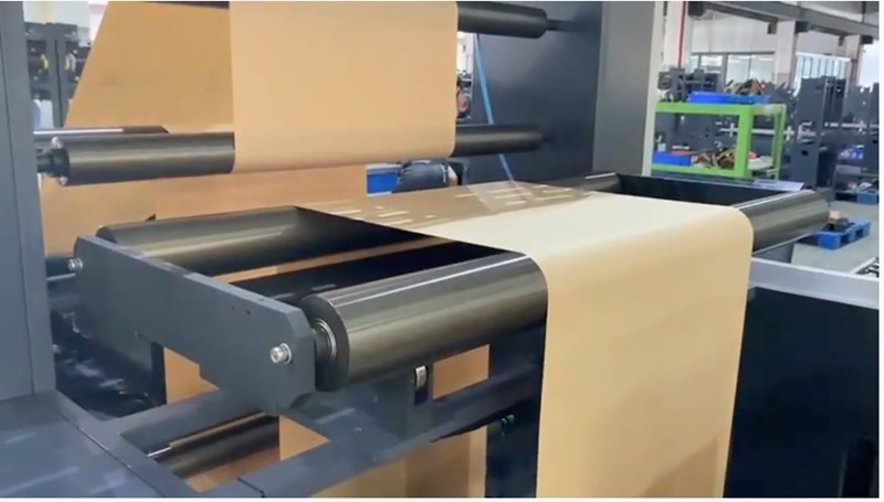

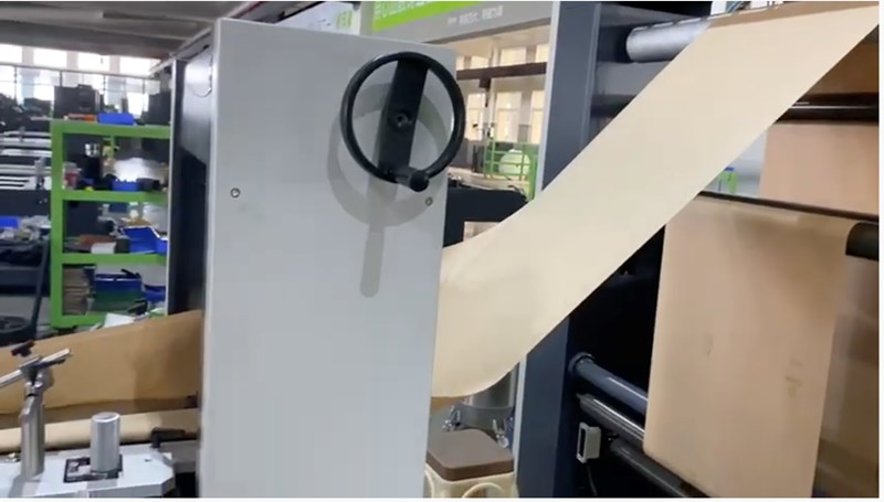

1- Automatic edge control system adopts ITALY SLECTRA. Make sure paper feeding regularly..
2- The machine has an automatic counting system. The user can set a number to count..

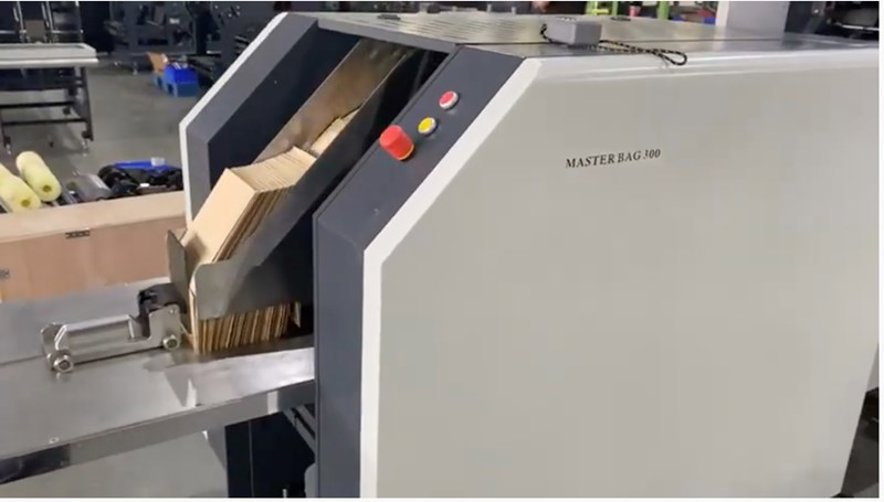

3- Newly designed table for collect big-size Paper bags..

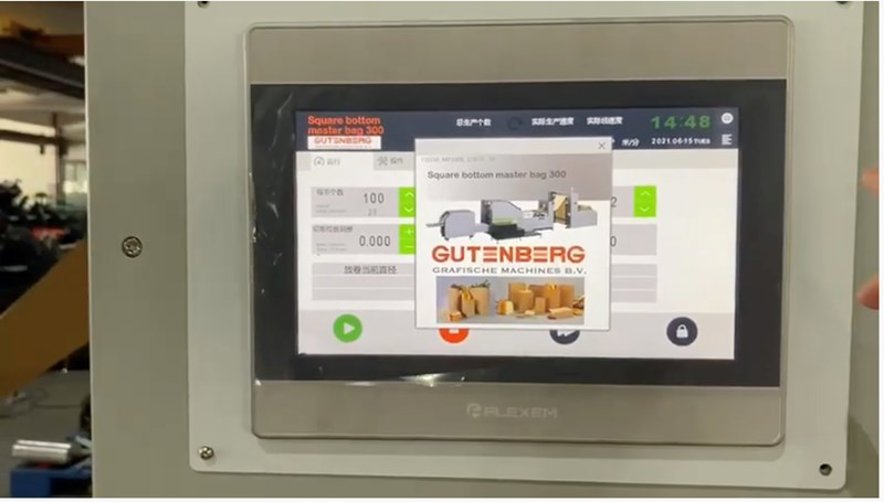

4- PC adopt Germany REXROTH control.

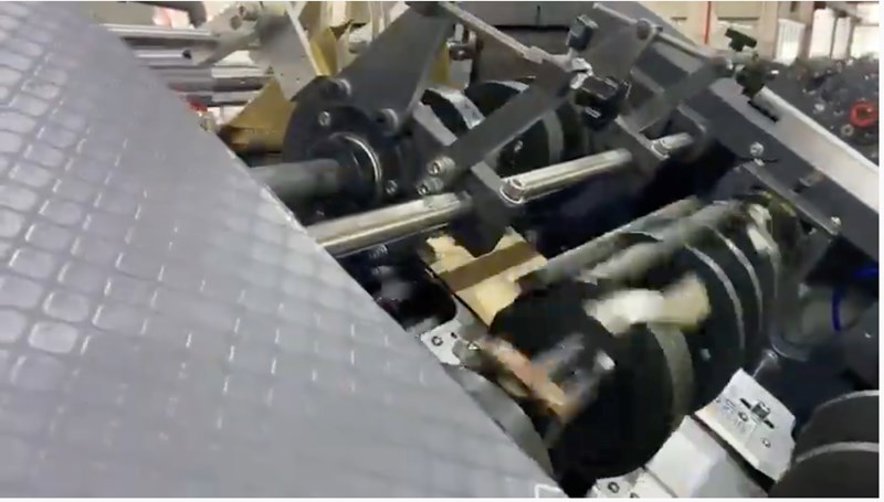

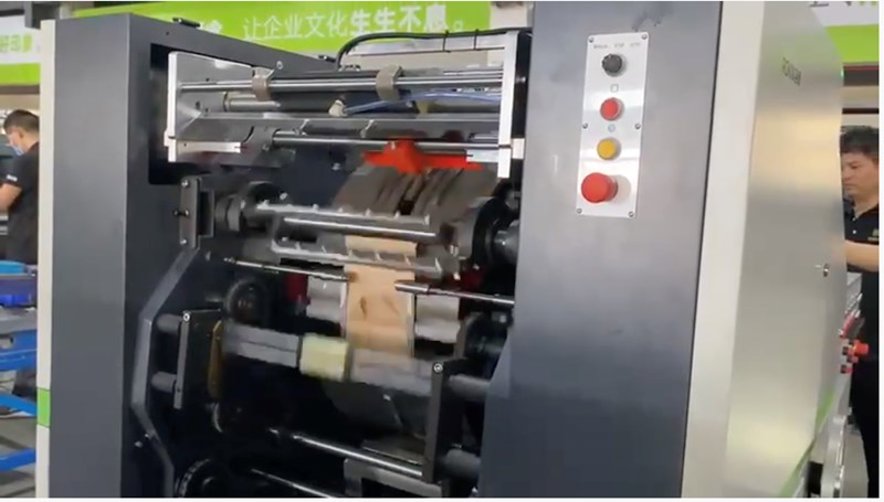

5- Automatic gluing system. Change old Design. Such a new gluing system can Reduce labor wash glue after running Glue come out more regular..

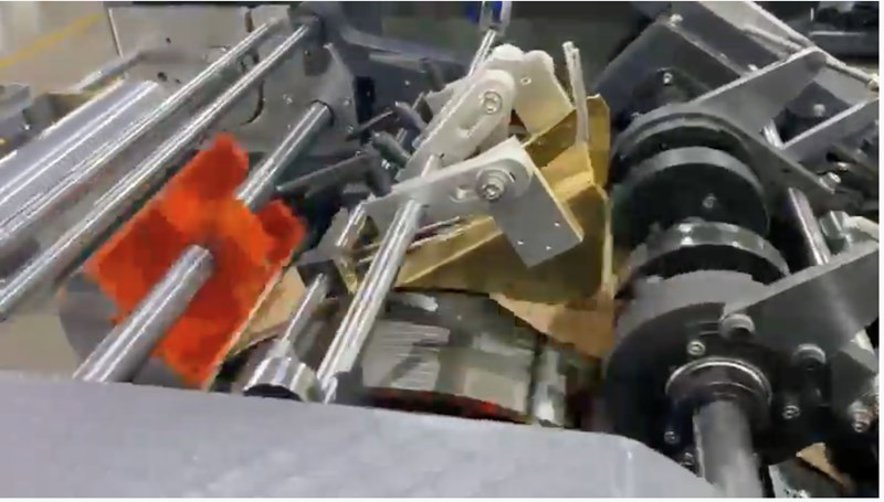

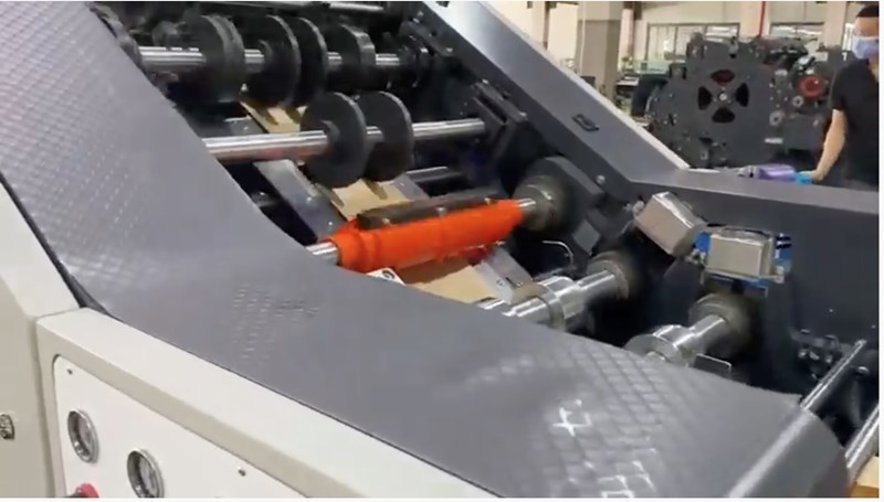

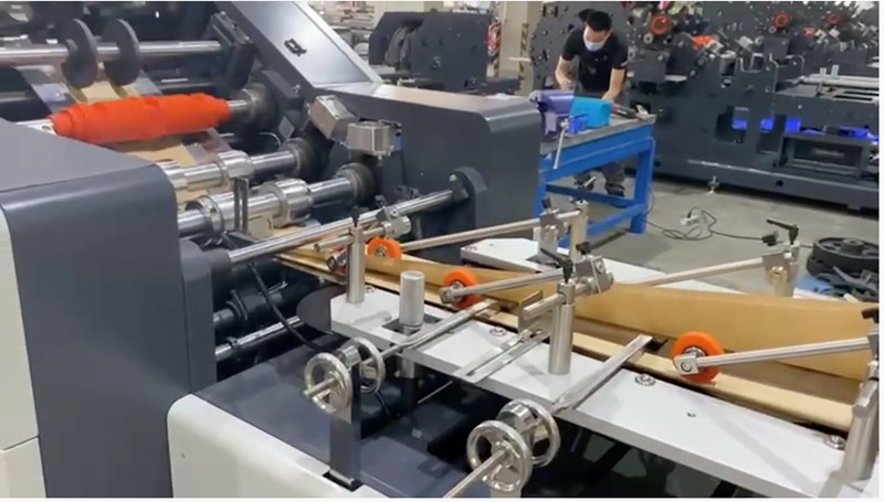

6- The paper tube forming system can be adjusted as a whole, it can increase The work efficiency and stability;.

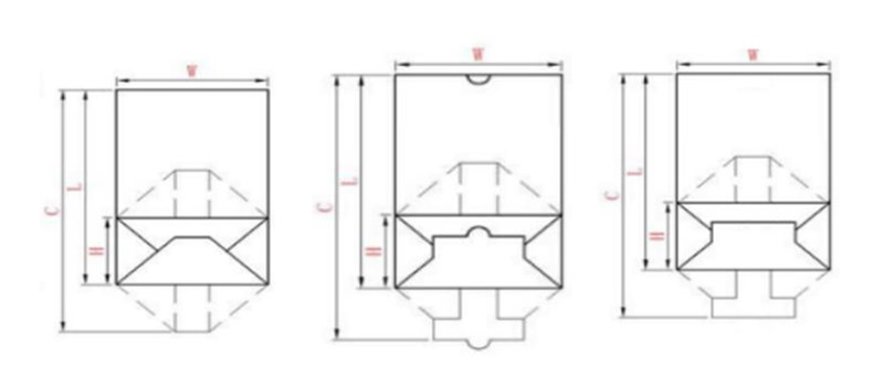

Width of Paper Bag 120-330mm.
Cutting Length 270-530mm.
Width of Bottom 80-180mm.
Max Paper Roll Width 450-1050mm.

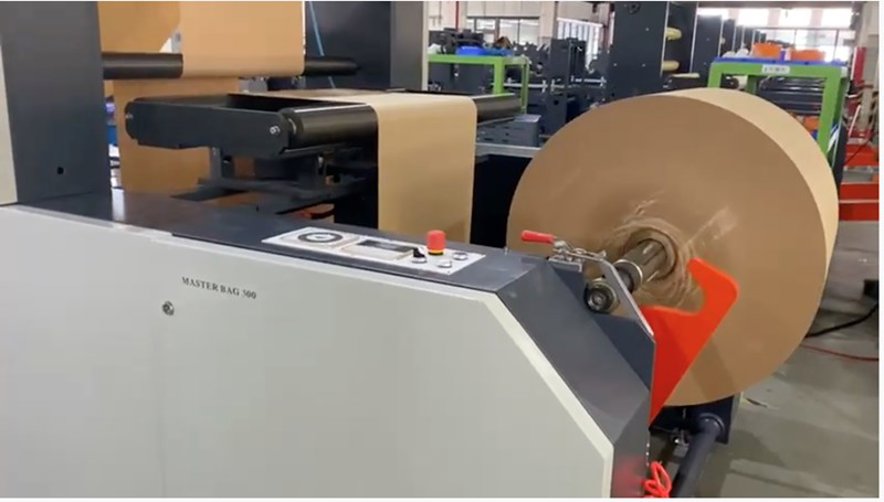

Dia Of Material 1200mm.
Bag Speed 30--200pcs/min.
Paper Thickness 60-150gsm.
Main Motor 19.5KW.
Paper Roll Core 76F.
Voltage 380V 3 PHASE.
Machine Weight 8500KGS.
Overall Dimension 10000*3700*1900MM

ModelGutenberg-Master Bag 330
ManufacturerGutenberg
Year2021
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Gutenberg - Master Bag 330

The Gutenberg Master Bag 330 is a high-performance sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is ideal for printing large quantities of high-quality materials such as brochures, catalogs, and packaging materials. Key features of the Gutenberg Master Bag 330 include its advanced paper handling system, high-speed printing capabilities, and precise ink control. The benefits of this machine include increased productivity, reduced waste, and exceptional print quality. Typical applications of the Gutenberg Master Bag 330 include commercial printing, packaging, and label printing.

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg Master Bag 330 has a length of 7,500 mm, a width of 2,500 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour. The machine has a maximum sheet size of 720 x 1,020 mm and a minimum sheet size of 360 x 510 mm.

Paper Handling : The Gutenberg Master Bag 330 features a advanced paper handling system with a maximum pile height of 1,500 mm and a maximum sheet weight of 500 gsm. The machine has a dual-circuit sheet feeder with a capacity of 5,000 sheets and a delivery system with a capacity of 10,000 sheets.

Printing Unit : The printing unit of the Gutenberg Master Bag 330 features a maximum printing speed of 15,000 sheets per hour and a maximum printing resolution of 2,540 dpi. The machine uses a conventional offset printing technology with a maximum of 10 printing units.

Ink System : The Gutenberg Master Bag 330 uses a high-precision ink system with a maximum ink capacity of 20 kg per unit. The machine features an automatic ink supply system and an ink temperature control system.

Plate Cylinder : The plate cylinder of the Gutenberg Master Bag 330 has a diameter of 1,020 mm and a length of 720 mm. The machine features a automatic plate changing system and a plate temperature control system.
