Gutenberg - Master Bag 300

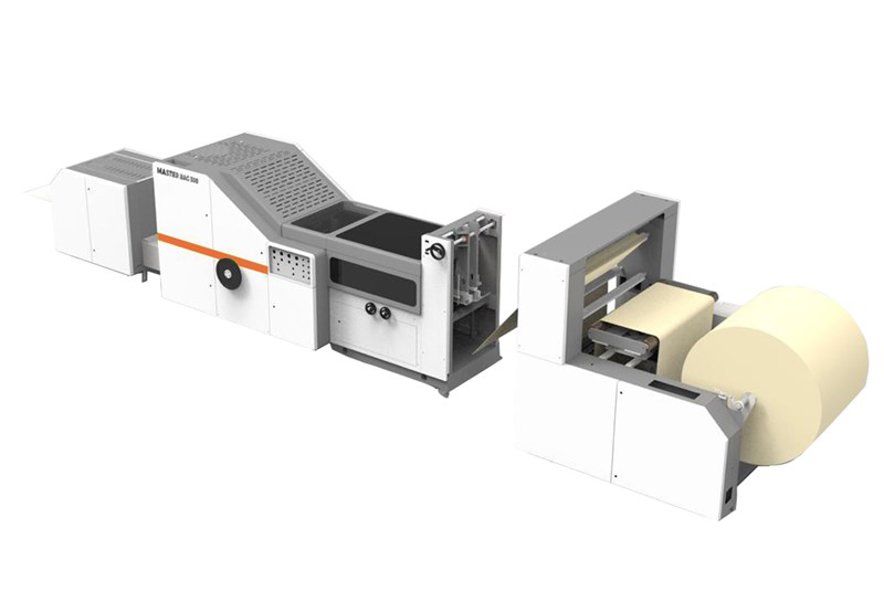

Bag making Gutenberg Master Bag 300

Machine Description

• Roll Shafts Types: The feeding roller is an air shaft: easy to lock the paper roller by air..
• Type of Lifting: Rolling inflatable shaft with Hydraulic automatic feeding system: easy to change the paper roller..
• Tension Control: The magnetic powder controller has fast response speed, high control accuracy, long life, and stability..
• Tube Forming: The paper tube forming adopts an integrated tube forming adjustment structure..
• Color Mark: Senor to achieve the automatic colour mark position adjustment, adopts the German brand SICK..
• Bag Pressing Section: To make sure the big-size bag with good pressing and forming quality..
• Touch screen: Touch screen is easy to control..
• Hydraulic System: Hydraulic system for sheet roller changing, saving time, and more easy work..
• Driving Roller: Two driving rollers, more powerful and stable, adopts a Japan Yaskawa servo motor to control..
• Cutting Station: High-speed uniform rotating cutter through a serrated knife or a flat knife, driven by a Japan Yaskawa servo motor..
• Collecting Station: Automatic collect the finished paper bag on the online line, and you can set the number of one line on the touch screen..
• Automatic Lubrication System: Automatic lubrication system for the whole machine..
• Gluing: Automatic glueing system, adjust the volume of glue and location directly. With Energy-saving pressure rubber barrel, saving the cost..
• The glueing holding bracket for adding the glueing, is easier to operate, don’t need to clean the glueing box when stopping the machine..
.
Technical Data.
• Bag Width: 150-330 mm.
• Bag Width Bottom: 70-180 mm.
• Bag Cutting Length: 275-530 mm.
• Paper Roll Width: 380-1050 mm.
• Max. Bag Speed: 150-260 pcs/min.
• Paper Thickness: 60-150 g/m2.
• Paper Roll Inner Diameter: 76 mm.
• Max. Paper Roll Diameter: 1200 mm.
• Air Supply: 0.6 - 1.2 Mpa.
• Air Consumption: 0.12m3/min.
• Machine Supply: 380V, 50Hz, 3 phase, 4 wires.
• Power: 15 KW.
• Weight: 8500 KGS.
• Dimension: L 8600 x W 3700 x H 1800 mm.
.
Parameters.
• Power: 3 Phases, 380V ±10%, 50 Hz.
• Compressed Air: Pressure: 0.6 MPa | Volume: approx. 0.5 m3/h | Oil and Humidity: 8 mg/m3.
Installation Height: Max. altitude: 1500 mm.
Ambient Requirement: Relative Moisture: Max. 65% when 40 °C | Temperature Range: 10~40 °C

ModelGutenberg-Master Bag 300
ManufacturerGutenberg
Year2023
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Gutenberg - Master Bag 300

The Gutenberg Master Bag 300 is a high-performance flexographic printing machine designed for the production of flexible packaging materials, such as plastic bags, pouches, and wraps. This machine is ideal for medium to large-scale printing operations, offering exceptional print quality, high speeds, and efficient production capabilities. Key features of the Gutenberg Master Bag 300 include its advanced flexographic printing technology, precise registration control, and robust construction, making it an excellent choice for printing companies serving the food, pharmaceutical, and cosmetic industries.

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg Master Bag 300 measures 12,000 mm in length, 2,500 mm in width, and 2,200 mm in height, with a total weight of approximately 8,000 kg. The machine has a maximum printing width of 800 mm and a maximum repeat length of 800 mm.

Paper Handling : The Gutenberg Master Bag 300 features a high-capacity unwinder with a maximum diameter of 1,200 mm and a maximum weight of 2,000 kg. The machine is equipped with a precision registration system, ensuring accurate and consistent print registration. The output system consists of a rewind unit with a maximum diameter of 1,200 mm and a maximum weight of 2,000 kg.

Printing Unit : The Gutenberg Master Bag 300 is equipped with a high-speed flexographic printing unit, capable of producing up to 300 meters per minute. The machine features a maximum of 8 printing stations, each with a resolution of 1,200 dpi. The printing unit utilizes a servo-driven system for precise registration and impression control.

Ink System : The Gutenberg Master Bag 300 uses a high-performance, water-based ink system with a total ink capacity of 200 liters. The machine features a closed-loop ink circulation system, ensuring consistent ink viscosity and minimizing waste.

Plate Cylinder : The plate cylinder on the Gutenberg Master Bag 300 has a diameter of 400 mm and a maximum plate thickness of 6 mm. The plate cylinder is designed for easy plate changing and features a precision registration system, ensuring accurate and consistent print registration.
