Machine Description
A small-scale business option that has huge potential to grow further and make you a successful owner of a Green BusinessPaper bag cutting length 110-460mm.
4 Color Printing .
Paper bag length (L) 100-450mm.
Paper bag width (W) 70-250mm.
Side insert width(G) 20-120mm.
Bag mouth height 15/20mm.
Paper thickness 35-80g/m2.
Max. Paper bag speed 220-600pcs/min.
Paper roll width 260-740mm.
Paper roll diameter Dia 1000mm.
The inner diameter of the paper roll Dia is 76mm.
Machine supply 380V, 50Hz, three phase, four wires.
Max. Printing material width 1000mm.
Max. Printing width 960mm.
Printing length range 230-1000mm.
Max. Printing speed 5-100m/min.
Register precision =±0.15mm.
The thickness of plate 2.28mm+0.38mm(can be customized).
Power 24KW.
Weight 6700 KGS.
Dimension L10100*W2100*H2800mm
| Model | Gutenberg-Flat And Satchel Paper Bags FS 1200 |
|---|---|
| Manufacturer | Gutenberg |
| Year | 2022 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Netherlands |

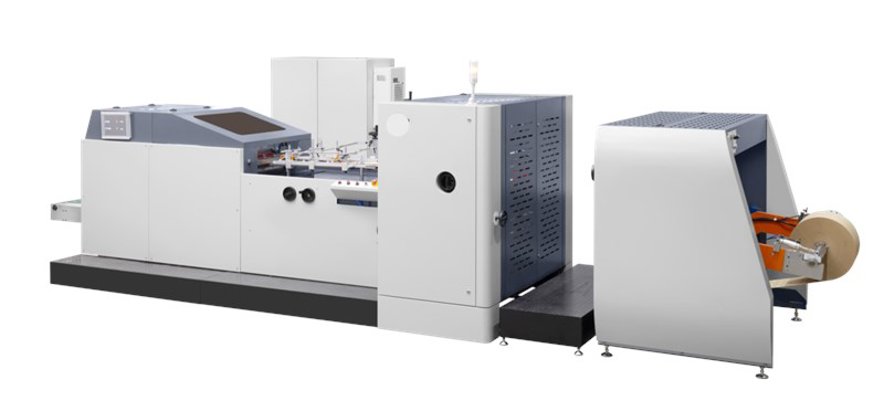

About Gutenberg - Flat And Satchel Paper Bags FS 1200
The Gutenberg Flat and Satchel Paper Bags FS 1200 is a high-performance paper bag converting machine designed for the production of flat and satchel paper bags. This machine is ideal for packaging applications in the food, pharmaceutical, and cosmetic industries. Key features of the FS 1200 include its high-speed production capabilities, precise bag formation, and versatility in handling various paper types and sizes. The machine's benefits include increased productivity, reduced labor costs, and improved packaging quality. Typical applications of the FS 1200 include packaging of food products, cosmetics, and pharmaceuticals.
Key Technical Aspects:
Dimensions and Specifications : The FS 1200 has a machine length of 4,500 mm, a machine width of 1,800 mm, and a machine height of 2,200 mm. The machine weighs approximately 3,500 kg and has a maximum production speed of 120 bags per minute.
Paper Handling : The FS 1200 features a paper reel unwinder with a maximum reel diameter of 1,200 mm and a reel width of 800 mm. The machine is equipped with a paper sheet feeder, a creasing unit, and a bag forming unit. The output conveyor has a length of 2,000 mm and a width of 800 mm, allowing for efficient bag collection and packaging.
Printing Unit : The FS 1200 is equipped with a flexographic printing unit that features 6 colors and a maximum printing width of 800 mm. The printing unit has a resolution of 254 dpi and a printing speed of up to 120 meters per minute.
Ink System : The FS 1200 uses a water-based flexographic ink system with a maximum ink capacity of 20 liters per color. The ink system features a circulation system and an ink pump, ensuring consistent ink flow and quality.
Plate Cylinder : The FS 1200 features a plate cylinder with a diameter of 350 mm and a repeat length of up to 800 mm. The plate cylinder is designed for easy plate changing and features a pneumatic clamping system for secure plate fixation.
