Gutenberg - FH-43

Bag making Gutenberg FH-43
Bag making Gutenberg FH-43
Bag making Gutenberg FH-43

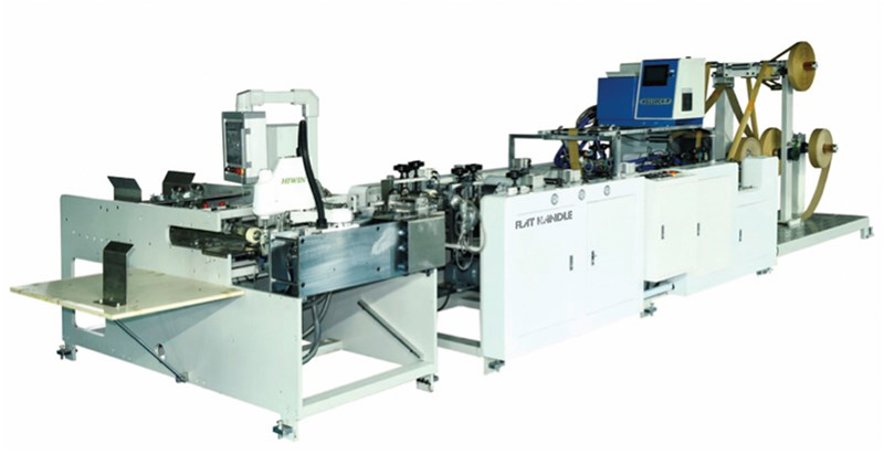

Machine Description

This machine is especially suitable for being applied in shopping bags..

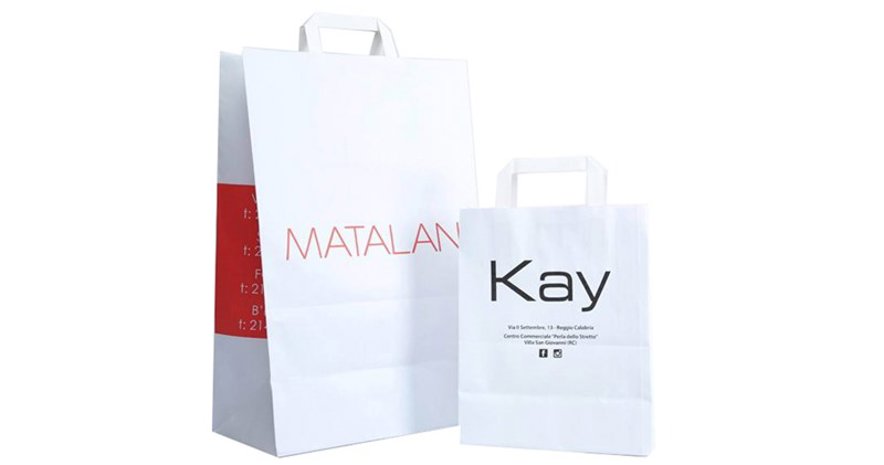

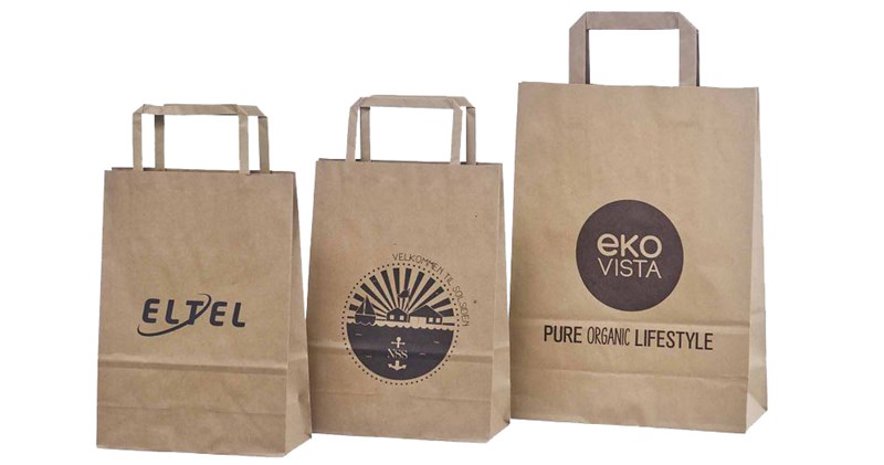

A Paper bag handle making machine is applied to produce many types of paper bags with flat handles, such as food paper bags, shopping bags and so on..
.
Technical Data.
• Handle Width (T) : 12/15 mm.
• Handle Height (H) : 100 mm.
• Handle Distance (D) : 108 mm.
• Paper Sheet Width (W) : 40 mm.
• Paper Sheet Length (L) : 152/190 mm.
• Paper Sheet Weight : 80-140 g/m2.
• Paper Bag Width : 250-450 mm.
• Paper Bag Height : 250-450 mm.
• Bag Blank Mouth Width : =130 mm.
• Machine Speed : 33-43 pcs/min.
• Gluing System : Hot Gluing System.
• Machine Supply : 380V, 50Hz, 3 phase, 4 wires.
• Power : 12.2 KW.
• Dimension : L 7000 x W 2450 x H 1700 mm.
.
Working Condition.
• Power : 3 Phases, 380V ±10%, 50 Hz.
• Compressed Air : Pressure: 0.6 MPa | Oil and Humidity: 8 mg/m3.
• Installation Height: Max. altitude: 1500 mm.
• Ambient Requirement: Relative Moisture: Max. 65% when 40 °C | Temperature Range: 10~40 °C

ModelGutenberg-FH-43
ManufacturerGutenberg
Year2021
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Gutenberg - FH-43

The Gutenberg FH-43 is a high-performance sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is ideal for printing high-quality materials such as brochures, catalogs, and packaging materials. Key features of the Gutenberg FH-43 include its high-speed printing capabilities, advanced paper handling system, and precise registration control. The benefits of using this machine include increased productivity, reduced waste, and improved print quality. Typical applications of the Gutenberg FH-43 include commercial printing, packaging, and label printing.

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg FH-43 has a length of 23.6 feet (7.2 meters), a width of 6.6 feet (2 meters), and a height of 7.5 feet (2.3 meters). It weighs approximately 22,000 pounds (10,000 kilograms) and has a maximum printing speed of 15,000 sheets per hour.

Paper Handling : The Gutenberg FH-43 features a advanced paper handling system with a maximum sheet size of 20.5 x 29.5 inches (520 x 750 mm) and a minimum sheet size of 7.9 x 10.2 inches (200 x 260 mm). The machine is equipped with a 4,000-sheet input tray and a 5,000-sheet output tray, allowing for efficient and continuous printing.

Printing Unit : The Gutenberg FH-43 uses a high-precision printing unit with a maximum printing speed of 15,000 sheets per hour. The machine features a 4-color printing system with a maximum resolution of 254 lpi (lines per inch) and uses a combination of oil-based and UV inks.

Ink System : The Gutenberg FH-43 uses a high-capacity ink system with a maximum ink capacity of 20 liters per color. The machine features an advanced ink circulation system that ensures consistent ink flow and reduces waste.

Plate Cylinder : The Gutenberg FH-43 features a high-precision plate cylinder with a diameter of 1.5 inches (38 mm) and a circumference of 4.7 inches (120 mm). The plate cylinder is designed for precise registration control and features an advanced clamping system for easy plate changes.
