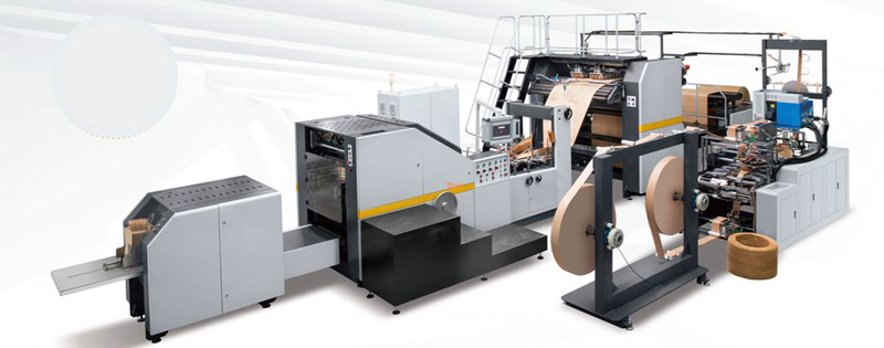

Gutenberg - Agribag

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg Agribag measures 12,000 mm in length, 2,500 mm in width, and 2,200 mm in height, with a total weight of approximately 8,000 kg. It has a maximum printing width of 1,200 mm and a maximum printing length of 1,800 mm, with a capacity to produce up to 250 bags per minute.

Paper Handling : The Agribag features a high-capacity unwinder with a maximum roll diameter of 1,200 mm and a maximum roll weight of 2,000 kg. It is equipped with a precision registration system, ensuring accurate paper alignment and minimal waste. The machine has a output conveyor with a length of 3,000 mm and a width of 1,200 mm, allowing for efficient bag collection and stacking.

Printing Unit : The Gutenberg Agribag is equipped with a high-speed flexographic printing unit, capable of producing prints at a resolution of up to 1,200 dpi. It has a maximum printing speed of 250 meters per minute, with a drying system that ensures rapid ink drying and minimal smudging. The printing unit features 8 colors, with a maximum repeat length of 800 mm.

Ink System : The Agribag uses a water-based flexographic ink system, with a total ink capacity of 200 liters. The machine is equipped with an advanced ink circulation system, ensuring consistent ink flow and minimizing ink waste.

Plate Cylinder : The plate cylinder has a diameter of 450 mm and a length of 1,200 mm, with a maximum plate thickness of 6 mm. It features a precision engraving system, allowing for high-quality plate production and accurate image transfer.
