Machine Description

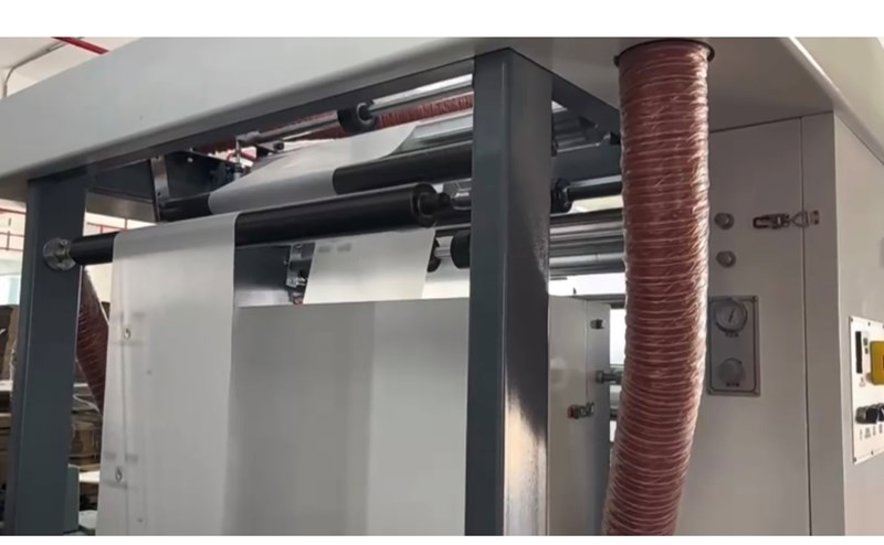

• The Hydraulic: Hydraulic system to unwind the paper roll, easy and fast to change the roller..
• The Paper Tension: The paper tension adopts a magnetic powder brake, making the paper feeding more stable and evenly..
• The Hydraulic System: The side position adjustment adopts the ultrasonic system, more stable, Will not cause errors because of paper dust, more accurate than ordinary photoelectric sensors..
• The Servo Motor: Paper sheet the automatic servo motor source correction system: fast response and make sure saving the correction time..
• The Infrared Sensor: Infrared sensor to make the machine stop when lake of material or broken material..

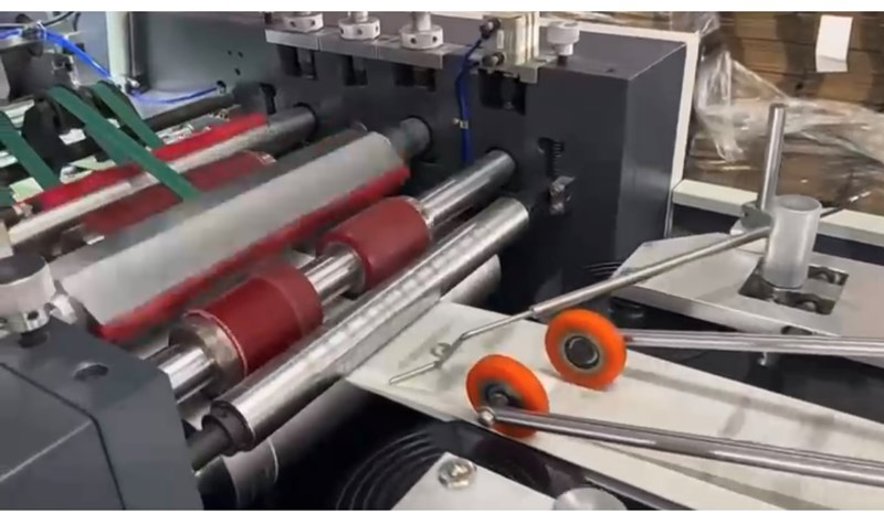

• The Glue: Automatic side glueing system, that can adjust the glue volume..
• The Senor: Senor to achieve the automatic colour mark position adjustment, adopts the German brand SICK..
• The Infrared Sensor: Paper sheet tooth break is controlled by servo motor, and adopts high-speed uniform rotation piercing hole to make the cutting in good quality, adopts Yaskawa from Japan..
• The Integral Tube: Adopting the integral tube template mounting frame adjustment structure, multi-directional adjustment is simple, convenient and fast..
• The Paper Tube: The paper tube forming adopts an integrated tube forming adjustment structure by the wheel, more simple, convenient, fast and stable..
• The Bag Tube: Bag tube body pull apart is controlled by a servo motor system, adopted by Yaskawa from Japan..
• The Gluing System: Automatically bottom glueing system with glue position detection Photoelectric sensor..
• The Saving Energy: Saving energy pressure glue barrel, easy to use, easy to clean, easy to use and pressure saving..
• The Type of Lifting: Installed with the Internet module, it can update the system at any time through the Internet. It can be operated remotely and provide quick and easy after-sales service..
• The Counting System: Automatic counting system with counting sensor system, easy for finished bag packing..
• The Touch Screen: Touch screen adopts the Weinview brand from Taiwan, easy to control..
.
Technical Data.
• Paper Bag Length (L): 160-715 mm.
• Paper Bag Width (W): 70-350 mm.
• Side Insert Width (G): 20-120 mm.
• Bag Mouth Height: 15/20 mm.
• Paper Thickness: 35-80 g/m2.
• Max. Paper Bag Speed: 50-720 pcs/min | 5-120 m/min.
• Paper Roll Width: 100-980 mm.
• Paper Roll Diameter: Dia 200-1000 mm.
• Paper Roll Inner Diameter: Dia 76 mm.
• Film Width: 50-240 mm.
• Film Thickness: 0.012-0.037 mm.
• Max. Film Diameter: 500 mm.
• Machine Supply: 380V, 50Hz, 3 phases, 4 wires.
• Power: 26 KW.
• Weight: 6500 KGS.
• Dimension: L 7300 x W 2260 x H 2000 mm.
.
Parameters.
• Power: 3 Phases, 380V ±10%, 50 Hz.
• Compressed Air: Pressure: 0.6 MPa | Oil and Humidity: ? 8 mg/m3.
• Installation Height: Max. altitude: 1500 m.
• Ambient Requirement: Relative Moisture: Max. 65% when 40 °C | Temperature Range: 10~40 °C.
.
Electronic Component.
• PLC: Yaskawa (Japan).
• Servo Motor: Yaskawa (Japan).
• Servo Driver: Yaskawa (Japan).
• Frequency Converter: Yaskawa (Japan).
• Cylinder: AirTac (Taiwan).
• Low Voltage Electrical Apparatus: EATON (USA).
• Normal Button: EATON (USA).
• Emergency Button: EATON (USA).
• Rotation Switch: EATON (USA).
• Bearing: NSK (Japan).
• Solenoid valve: AirTac (Taiwan)
| Model | Gutenberg-350 GL |
|---|---|
| Manufacturer | Gutenberg |
| Year | 2022 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Netherlands |
About Gutenberg - 350 GL
The Gutenberg 350 GL is a high-performance sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is categorized as a medium-format press, ideal for printing a wide range of materials, including paper, cardboard, and plastics. The Gutenberg 350 GL is known for its exceptional print quality, high productivity, and versatility, making it an excellent choice for printing businesses that require fast turnaround times and high-volume production. Its key features include advanced automation, precise registration, and a robust design, ensuring consistent and reliable performance. Typical applications of the Gutenberg 350 GL include commercial printing, packaging, and label printing.
Key Technical Aspects:
Dimensions and Specifications : The Gutenberg 350 GL has a length of 7,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size capacity of 720 x 1,020 mm.
Paper Handling : The Gutenberg 350 GL features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet thickness range of 0.03 to 1.2 mm. The press is equipped with a dual-circuit sheet guiding system and a precision sheet alignment system, ensuring accurate registration and smooth paper flow. The delivery system features a high-speed pile turner and a jogger for efficient sheet stacking.
Printing Unit : The Gutenberg 350 GL is equipped with six printing units, each featuring a maximum printing speed of 15,000 sheets per hour. The press uses a high-precision, servo-driven inking system and a advanced dampening system, ensuring consistent and vibrant color reproduction. The printing units are equipped with automatic plate changers and impression cylinders with a diameter of 1,020 mm.
Ink System : The Gutenberg 350 GL uses a high-performance, alcohol-free dampening system and a low-VOC (volatile organic compound) ink system. The ink system features a maximum ink capacity of 20 kg per unit and is equipped with an automatic ink supply and monitoring system.
Plate Cylinder : The plate cylinder has a diameter of 1,020 mm and a circumference of 3,200 mm. It features a precision-ground, chrome-plated surface and is equipped with an automatic plate changer, allowing for fast and efficient plate changes.
