Gutenberg - 350 FB

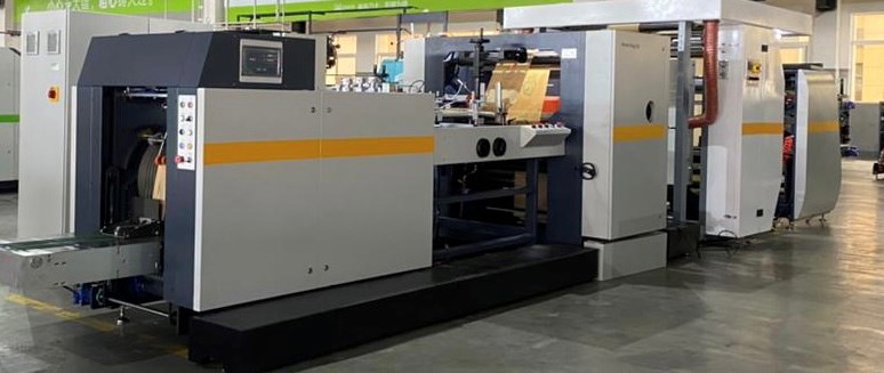

Bag making Gutenberg 350 FB

Machine Description

Features.
• Hydraulic system to unwind the paper roll, easy and fast to change the roller..
• paper tension adopts a magnetic powder brake, making the paper feeding more stable and evenly..
• Hydraulic System: The side position adjustment adopts the ultrasonic system, more stable, Will not cause errors because of paper dust, more accurate than ordinary photoelectric sensors..
• Paper sheet the automatic servo motor source correction system: fast response and make sure to save the correction time..
• Infrared sensor to make the machine stop when lake of material or broken material..
• Automatic side glueing system, that can adjust the glue volume..
• Senor to achieve the automatic colour mark position adjustment, adopts the German brand SICK..
• Paper sheet tooth break is controlled by servo motor, and adopts high-speed uniform rotation piercing hole to make the cutting of good quality, adopts Yaskawa from Japan..
• Adopting the integral tube template mounting frame adjustment structure, multi-directional adjustment is simple, convenient and fast..
• The paper tube forming adopts an integrated tube forming adjustment structure by the wheel, more simple, convenient, fast and stable..
• Bag tube body pull-apart is controlled by a servo motor system, adopted by Yaskawa from Japan..
• Automatically bottom glueing system with glue position detection Photoelectric sensor..
• Saving energy pressure glue barrel, easy to use, easy to clean, easy to use and pressure saving..
• Installed with the Internet module, it can update the system at any time through the Internet. It can be operated remotely and provide quick and easy after-sales service..
• Automatic counting system with counting sensor system, easy for finished bag packing..
• Touch screen adopts the Weinview brand from Taiwan, easy to control..
• Max. Paper Bag Speed: 50-720 pcs/min | 5-120 m/min.
• Machine Supply: 380V, 50Hz, 3 phases, 4 wires.
• Power: 26 KW.
• Weight: 6500 KGS.
• Dimension: L 7300 x W 2260 x H 2000 mm.
• Power: 3 Phases, 380V ±10%, 50 Hz.
• Compressed Air: Pressure: 0.6 MPa | Oil and Humidity: ? 8 mg/m3.
• Installation Height: Max. altitude: 1500 m.
• Ambient Requirement: Relative Moisture: Max. 65% when 40 °C | Temperature Range: 10~40 °C.
• PLC: Yaskawa (Japan).
• Servo Motor: Yaskawa (Japan).
• Servo Driver: Yaskawa (Japan).
• Frequency Converter: Yaskawa (Japan).
• Cylinder: AirTac (Taiwan).
• Low Voltage Electrical Apparatus: EATON (USA).
• Normal Button: EATON (USA).
• Emergency Button: EATON (USA).
• Rotation Switch: EATON (USA).
• Bearing: NSK (Japan).
• Solenoid valve: AirTac (Taiwan)

ModelGutenberg-350 FB
ManufacturerGutenberg
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Gutenberg - 350 FB

The Gutenberg 350 FB is a high-performance sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is ideal for printing high-quality materials such as brochures, catalogs, and packaging materials. Key features of the Gutenberg 350 FB include its high-speed printing capabilities, advanced paper handling system, and precise registration control. The benefits of this machine include increased productivity, reduced waste, and improved print quality. Typical applications of the Gutenberg 350 FB include commercial printing, packaging, and label printing.

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg 350 FB has a length of 23.6 feet (7.2 meters), a width of 6.6 feet (2 meters), and a height of 7.5 feet (2.3 meters). It weighs approximately 22,000 pounds (10,000 kilograms) and has a maximum printing speed of 15,000 sheets per hour.

Paper Handling : The Gutenberg 350 FB features a advanced paper handling system with a maximum sheet size of 23.6 x 35.4 inches (600 x 900 mm) and a minimum sheet size of 7.9 x 10.2 inches (200 x 260 mm). It has a 5,000-sheet feeder capacity and a 3,000-sheet delivery capacity. The machine is also equipped with an automatic sheet detection system and a precision registration system.

Printing Unit : The Gutenberg 350 FB features a 5-color printing unit with a maximum printing speed of 15,000 sheets per hour. It has a printing resolution of 254 lpi (lines per inch) and uses a conventional offset printing technology. The machine is equipped with a precision registration system and an automatic ink control system.

Ink System : The Gutenberg 350 FB uses a conventional offset ink system with a maximum ink capacity of 20 kg (44 lbs) per color. The machine is equipped with an automatic ink control system and an ink temperature control system.

Plate Cylinder : The Gutenberg 350 FB features a plate cylinder with a diameter of 1.3 inches (33 mm) and a circumference of 40.6 inches (1030 mm). The plate cylinder is equipped with a precision registration system and an automatic plate changing system.
