Gutenberg - 330 TH

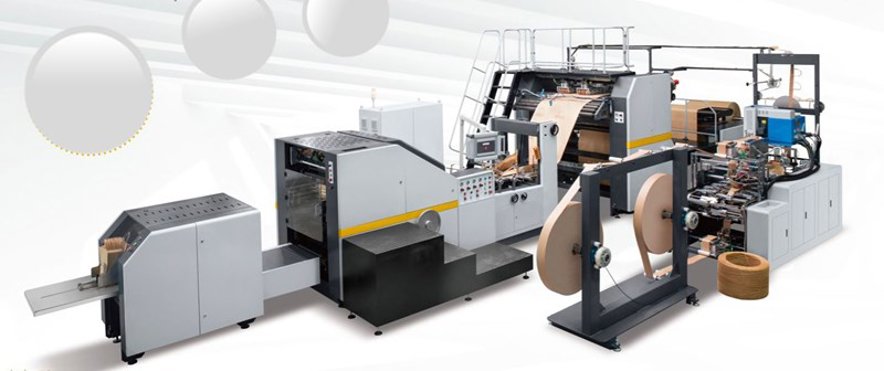

Bag making Gutenberg 330 TH

Machine Description

• The Roll Shafts Types: The feeding roller is an air shaft: easy to lock the paper roller by air..
• The Tension Control: The magnetic powder controller has fast response speed, high control accuracy, long life, and stability..
• The Hydraulic System: Hydraulic system for sheet roller changing, saving time, and more easy work..
• The Gluing: Automatic glueing system, adjust the volume of glue and location directly. With Energy-saving pressure rubber barrel, saving the cost..
• The Touch Screen: The touch screen is easy to control..
• The Type of Lifting: Rolling inflatable shaft with Hydraulicautomatic feeding system: easy to change the paper roller..
• The Alignment: Correction system drive by servo motor: more precisely and stable. The side correction adopts an ultrasonic sensor: stable for those affected by light or dust..
• The Tube Forming: The paper tube forming adopts an integrated tube forming adjustment structure..
• The Driving Roller: Two driving rollers, more power and stability, adopt Japan Yaskawa servo motor to control..
• The Cutting Station: High-speed uniform rotating cutter through a serrated knife or a flat knife, driven by a Japan Yaskawa servo motor..
• The Color Mark: Senor to achieve the automatic colour mark position adjustment, adopts the German brand SICK..
• The Collecting Station: automatically collect the finished paper bag online line, and you can set the number of one line on the touch screen..
• The Automatic Lubrication System: Automatic lubrication system for the whole machine..
• The Bag Pressing Section: To make sure the big-size bag with good pressing and forming quality..
• The Gluing Box: The glueing holding bracket for adding the glueing, is easier to operate, don’t need to clean the glueing box when stopping the machine..
.
Technical Data.
• Bag Width (W): 130-330 mm (without handle).
180-330 mm (with handle).
• Bag Width Bottom (H): 65-180 mm.
• Bag Cutting Length (C): 260-530 mm.
• Paper Roll Width: 420-1090 mm.
• Max. Bag Speed: 130 pcs/min.
• Paper Thickness: 60-150 g/m2 (without handle).
80-150 g/m2 (with handle).
• Paper Roll Inner Diameter: Dia 76 mm.
• Paper Roll Diameter: Dia 1500 mm.
• Handle Rope Height: 90-120 mm.
• Handle Rope Diameter: Dia 3-5.5 mm.
• Handle Sheet Length: 152 mm.
• Handle Sheet Width: 42.5-50 mm.
• Machine Supply: 380V, 50Hz, 3 phase, 4 wires.
• Power: 30 KW.
• Weight: 18500 KGS.
• Dimension: L 13500 x W 5700 x H 2500 mm.
.
Parameters.
• Power: 3 Phases, 380V ±10%, 50 Hz.
• Compressed Air: Pressure: 0.6 MPa.
Oil and Humidity: ? 8 mg/m3.
• Installation Height: Max. altitude: 1500 m.
• Ambient Requirement: Relative Moisture: Max. 65% when 40 °C.
Temperature Range: 10~40 °C

ModelGutenberg-330 TH
ManufacturerGutenberg
Year2023
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Gutenberg - 330 TH

The Gutenberg 330 TH is a high-performance sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is ideal for printing high-quality materials such as brochures, catalogs, and packaging materials. Key features of the Gutenberg 330 TH include its high-speed printing capabilities, advanced paper handling system, and precise registration control. The benefits of this machine include increased productivity, reduced waste, and improved print quality. Typical applications of the Gutenberg 330 TH include commercial printing, packaging, and label printing.

Key Technical Aspects:

Dimensions and Specifications : The Gutenberg 330 TH has a length of 7,300 mm, a width of 2,300 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour.

Paper Handling : The machine features a advanced paper handling system with a maximum sheet size of 720 x 1,020 mm and a minimum sheet size of 350 x 500 mm. It has a 3,000-sheet feeder and a 2,000-sheet delivery stacker. The machine is also equipped with an automatic sheet detection system and a precision registration control system.

Printing Unit : The Gutenberg 330 TH features a high-precision printing unit with a maximum printing speed of 15,000 sheets per hour. It has a printing resolution of 300 lpi and uses a advanced offset printing technology. The machine is equipped with 8 printing units, allowing for a wide range of printing applications.

Ink System : The machine uses a high-performance ink system with a maximum ink capacity of 20 kg per unit. It features an advanced ink circulation system and an automatic ink temperature control system.

Plate Cylinder : The Gutenberg 330 TH features a high-precision plate cylinder with a diameter of 1,200 mm and a circumference of 3,770 mm. The plate cylinder is designed for high-speed printing and features an advanced plate changing system, allowing for quick and easy plate changes.
