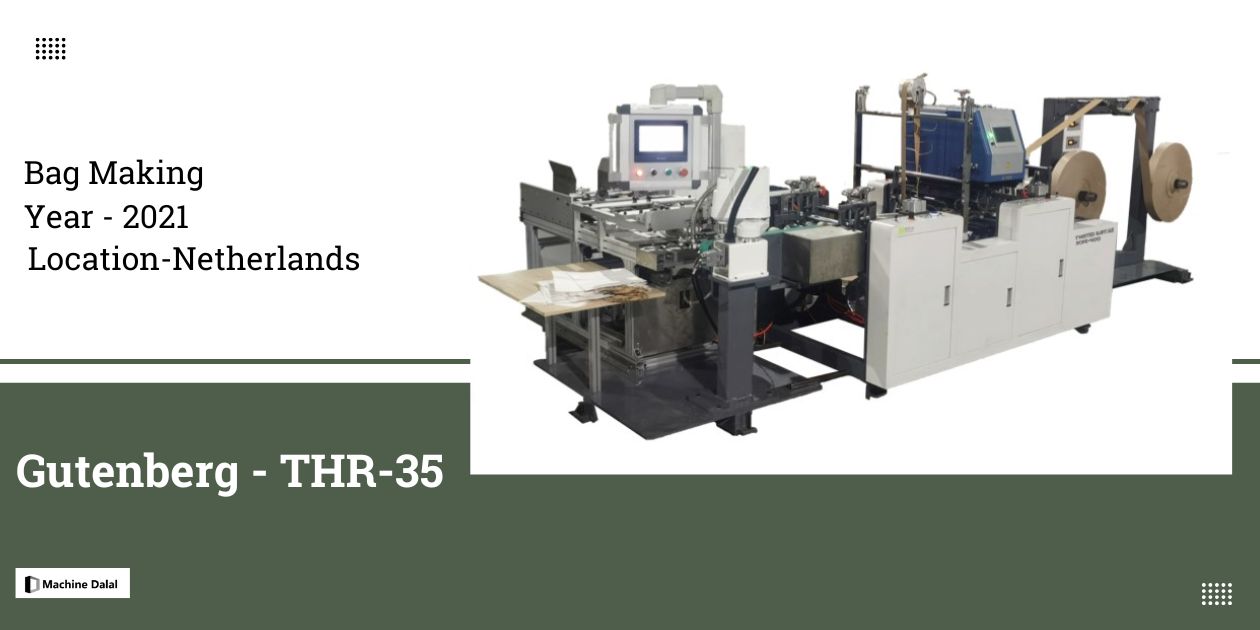

Used Gutenberg-THR-35 Bag Making Machine for Sale

The Gutenberg-THR bag maker offers a range of advanced features designed to enhance bag manufacturing. Equipped with an air shaft and touch screen interface, it ensures precision and user-friendly operation. Its two-handle forming part, along with a robot system, streamlines the bag-making process. The inclusion of a correction system further refines the output. Additionally, the bag maker incorporates paper bag feeding and a magnetic power brake for seamless performance. The hot gluing system adds a finishing touch to the bags, making the Gutenberg-THR a comprehensive solution for efficient and high-quality bag production.

Manufacturer – Gutenberg

Model – Gutenberg-THR 35

Location – Netherlands

Year of Manufacturing – 2021

Availability – Immediate

Specifications of Gutenberg-THR

• Handle Distance (D): 75/95 mm
• Handle Height (H): 100 mm
• Paper Sheet Length (L): 152/190 mm
• Paper Sheet Width (W): 30/40 mm
• Handle Diameter: Dia 2.5-5 mm
• Paper Bag Width: 250-400 mm
• Bag Height: 250-450 mm
• Machine Speed: 30-35 pcs/mins
• Top Opening Size: Mini. 130 mm
• Machine Supply: 380V, 50Hz, 3 phase, 4 wires
• Power: 10 KW
• Weight: 2000 KGS
• Dimension : L 6000 x W 1600 x H 1500 mm

Working Condition
• Power : 3 Phases, 380V ±10%, 50 Hz
• Compressed Air : Pressure: 0.6 MPa | Oil and Humidity: 8 mg/m3
• Installation Height: Max. altitude: 1500 mm
• Ambient Requirement: Relative Moisture: Max. 65% when 40 °C | Temperature Range: 10~40 °C

Features
1- Air Shaft & Touch Screen
2- Handle Forming Part
3- Robot System
4- Correction System
5- Paper Bag Feeding
6- Magnetic Power Brake
7- Hot Gluing System
