XB 700 - Oyang

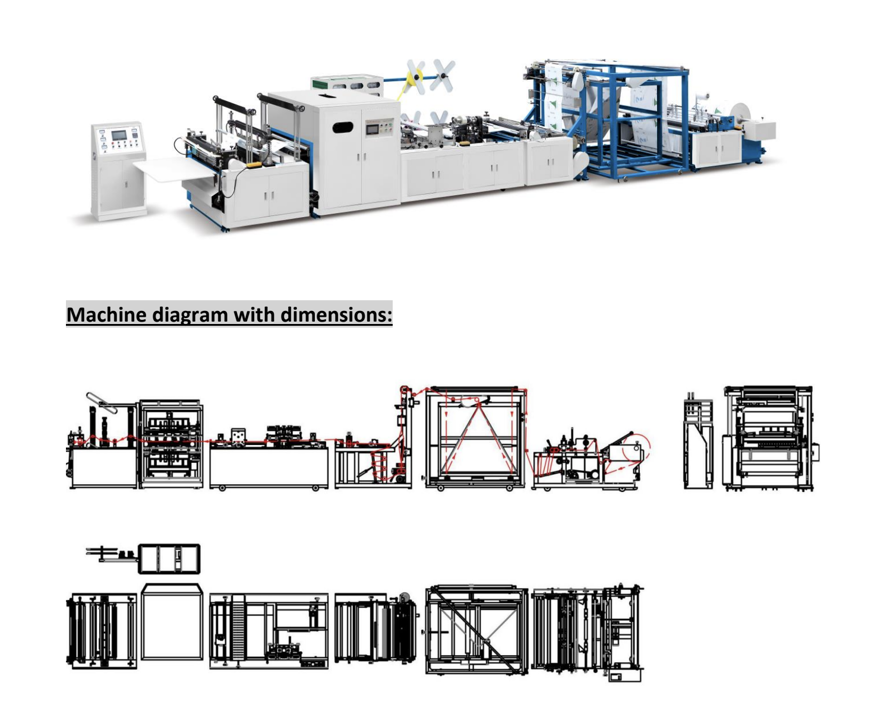

About Machine

Bag making machine with online handle attachment

Features

Fabric unwinding
Bag mouth folding
Top sealing
Side folding
Bottom sealing
Bottom edge cutting
Online impression
Loop handle attachment
Main sealing
Bag cutting
Collection

Technical Specifications

Roller width1.25m
Raw materialNon-woven fabric rolls
Suitable forBox bags, D-Cut, U-Cut, Flat bag, String bag, Bottom gusset
ControlTouch Screen
Speed40 – 100 Pcs/min
Bag length4 to 31 inches
Bag height8 to 23 inches
Max gusset12 inches
Power supply220V 50Hz
Required power18 KW
Machine dimensionsLength: 12000 * Width: 2600 * Height: 2000 mm
Machine weight4100 KG
Air supply required0.75 MPa

Application

Box / D-Cut / W-Cut* / Loop handle / String bag / Bottom Gusset
