Automatic Paper Corrugated Board Making Machine - Classic

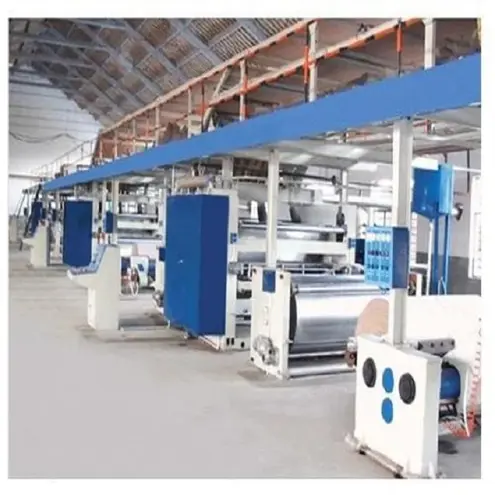

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of thr mill roll stand, liner (medium paper) pre heater, single face machine, conveyor bridge, gluing machine, double face machine, slitter scorer, cut-off, conveyor and stacker, heating system, air corporation system and glue making system.We produced different grade 3,5,7 ply corrugated production line with different fitting on the base of understanding the requirements of the customers and the advanced skills at home and abroad. Our company has developed and designed these production lines with the design speed 50-150m/min, the paper width 1400-2200mm and A,B,C,E UV flute production line can satisfy different customers.

Technical Specifications

Automatic GradeAutomatic
Capacity60*70 meter/m.
Frequency50 Hz
Voltage340V
Financing

Easy Financing with Machine Dalal

Business and Machinery Loans available for this model.

Apply in minutes. Get approved fast. Flexible loan options to power your machinery purchase.

Apply Nowtrending_flat

Grow Your Machinery Sales

More Exposure. More Leads. More Machinery and Equipment Sales. Reach more Printers, Publishers and Packaging Manufacturers with Machine Dalal.Follow the link to explore Enterprise Services.

Learn Moretrending_flat
pencil

Keep Exploring

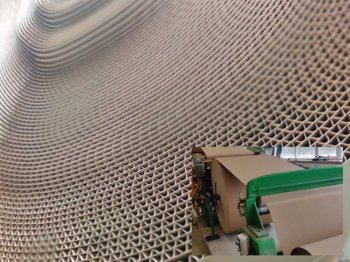

Corrugated Cardboard Production Line Others Corrugated Board Machine

Corrugated Board Machine

Corrugated Cardboard Production Line

corrugated board machine 1000 mm /39" single face board- F / E / B / C, wave height - manually adjustable electric heating spare parts good working condition video by request #corrugated, #flute, #cartonmachine, #corrugatedline, #corrugationline, #paperboard, #corruagtedpapermachine, #flutepapermachine, #papermakingmachine, #packing, #carton, #boxes, #boards, #package, #cajasdecarton, #karton, #emballage

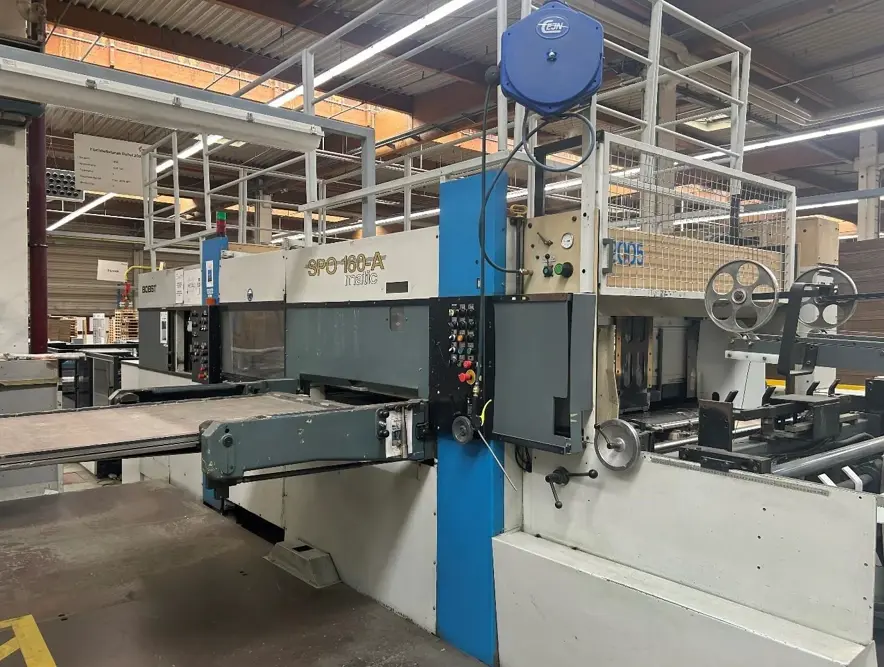

Corrugated Cardboard Production Line Bobst 160 A-Matic
