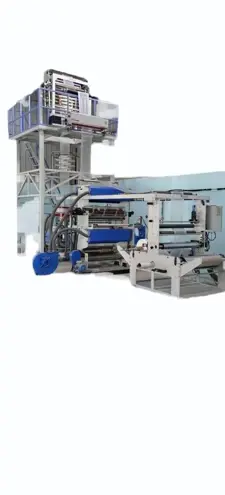

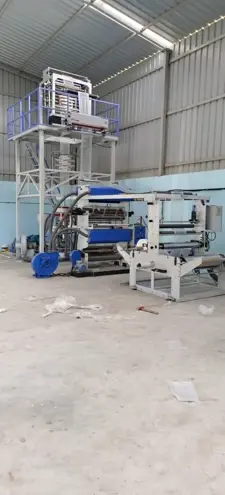

ConsoleBiodegradable Raw Material Plant - DU
Biodegradable Raw Material Plant - DU
Biodegradable Raw Material Plant - DU
Technical Specifications
| Automation Grade | Automatic |
| Bag Bottom Shape | Square |
| Material | ms |
Easy Financing with Machine Dalal
Business and Machinery Loans available for this model.
Apply in minutes. Get approved fast. Flexible loan options to power your machinery purchase.
Apply Nowtrending_flatGrow Your Machinery Sales
More Exposure. More Leads. More Machinery and Equipment Sales. Reach more Printers, Publishers and Packaging Manufacturers with Machine Dalal.Follow the link to explore Enterprise Services.
Learn Moretrending_flat
Keep Exploring
Agripack
Bag making
PAPER BAG CUTTING LENGTH (C) 190-370MM PAPER BAG WIDTH (W) 80-190MM PAPER BAG BOTTOM WIDTH (H) 50-100MM PAPER THICKNESS 50-120G/M2 MAX. SPEED 150-200PCS/MIN PAPER ROLL WIDTH 320-600MM MAX. PAPER ROLLER DIAMETER 1200MM PAPER ROLLER INNER DIAMETER 76MM AIR SUPPLY >0.12M3/MIN 0.6MPA MACHINE SUPPLY 380V, 50HZ, THREE PHASE FOUR WIRES POWER 15KW WEIGHT 5000 KGS DIMENSION L9200*W1600*H1800MM

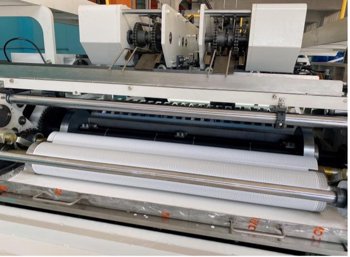

Master Bag 300
Bag making
• Roll Shafts Types: The feeding roller is an air shaft: easy to lock the paper roller by air. • Type of Lifting: Rolling inflatable shaft with Hydraulic automatic feeding system: easy to change the paper roller. • Tension Control: The magnetic powder controller has fast response speed, high control accuracy, long life, and stability. • Tube Forming: The paper tube forming adopts an integrated tube forming adjustment structure. • Color Mark: Senor to achieve the automatic colour mark position adjustment, adopts the German brand SICK. • Bag Pressing Section: To make sure the big-size bag with good pressing and forming quality. • Touch screen: Touch screen is easy to control. • Hydraulic System: Hydraulic system for sheet roller changing, saving time, and more easy work. • Driving Roller: Two driving rollers, more powerful and stable, adopts a Japan Yaskawa servo motor to control. • Cutting Station: High-speed uniform rotating cutter through a serrated knife or a flat knife, driven by a Japan Yaskawa servo motor. • Collecting Station: Automatic collect the finished paper bag on the online line, and you can set the number of one line on the touch screen. • Automatic Lubrication System: Automatic lubrication system for the whole machine. • Gluing: Automatic glueing system, adjust the volume of glue and location directly. With Energy-saving pressure rubber barrel, saving the cost. • The glueing holding bracket for adding the glueing, is easier to operate, don’t need to clean the glueing box when stopping the machine. Technical Data • Bag Width: 150-330 mm • Bag Width Bottom: 70-180 mm • Bag Cutting Length: 275-530 mm • Paper Roll Width: 380-1050 mm • Max. Bag Speed: 150-260 pcs/min • Paper Thickness: 60-150 g/m2 • Paper Roll Inner Diameter: 76 mm • Max. Paper Roll Diameter: 1200 mm • Air Supply: 0.6 - 1.2 Mpa • Air Consumption: 0.12m3/min • Machine Supply: 380V, 50Hz, 3 phase, 4 wires • Power: 15 KW • Weight: 8500 KGS • Dimension: L 8600 x W 3700 x H 1800 mm Parameters • Power: 3 Phases, 380V ±10%, 50 Hz • Compressed Air: Pressure: 0.6 MPa | Volume: approx. 0.5 m3/h | Oil and Humidity: 8 mg/m3 Installation Height: Max. altitude: 1500 mm Ambient Requirement: Relative Moisture: Max. 65% when 40 °C | Temperature Range: 10~40 °C
