NovaGraph - Alliance

close

NovaGraph - Alliance

Technical Specifications

Working width (mm) (inch)450 (17.7”)
Max unwind diameters (mm)Up-to 1000
Max rewind diameters (mm)650 | 1000
Fan Fold sizes(mm)100 to 400
Gearing5mm C.P.
Financing

Easy Financing with Machine Dalal

Business and Machinery Loans available for this model.

Apply in minutes. Get approved fast. Flexible loan options to power your machinery purchase.

Apply Nowtrending_flat

Grow Your Machinery Sales

More Exposure. More Leads. More Machinery and Equipment Sales. Reach more Printers, Publishers and Packaging Manufacturers with Machine Dalal.Follow the link to explore Enterprise Services.

Learn Moretrending_flat
pencil

Keep Exploring

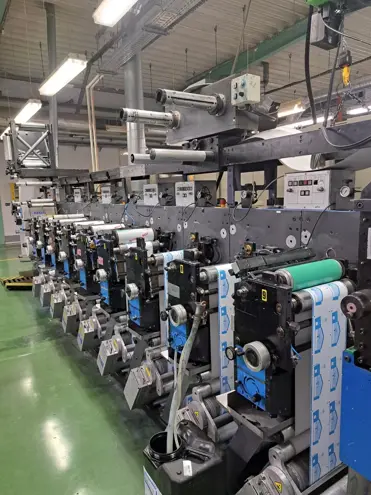

Flexographic equipment Gallus EM 280-9

EM 280-9

Flexographic equipment

9 colors front-loading unwinder 3-inch expansion shaft automatic lift for the unwinder web guide with tension adjustment automatic web guide by Erhardt+Leimer Arcotec corona system Teknek web cleaner - double-sided 9 printing unit (max print size 18") 5 ink pump, stepless speed regulation Panel for UV lamps 9 UV IST lamps 7 chilld drums Chiller Hyfra 1 pair of circular knives for longitudinal cutting, mechanically adjustable, Rewinder, winding in two directions lamination unit, cold foil on rail rail system along the entire machine web turn bar video inspection 1 die-cutting unit (max. cylinder size 18") with Gap Master Waste rewinder with pneumatic pressure mb/label counter 10 anilox rollers 18 printing rollers 2 magnetic cylinders 11 ink trays

Flexographic equipment FOCUS eFlex 330-2 S

eFlex 330-2 S

Flexographic equipment

Full Servo Drive Technology EFLEX 330 – 2 S & helical gearing 8 Colour + Extended Die Module 2 x Die + Sheeter 8 X Lamp IR & Hot Air Drying Systems 8 x Lamp UV System + Chill Rolls & Chiller 2nd Pass Upgrade – Unwind Roll Lift Corona - Single Sided (2 Kw) Web Cleaner (2 Sided) with anti static Rail System Turn Bar with Delam-Relam (Rail mounted) Cold Foil (Rail Mounted) Sheet Stacker (Shingle Conveyor) Peel & Reveal Tint roll with air mandrel Antistatic unit 4 bars Rotary die adaptors (1 Set) Edge trim extraction (Venturi) - requires air supply Reverse rewind Video Inspection System (double side viewing E + L) FOCUS Video Plate mounter Platemate Upgrade Full Length Rail Rail Mounted Snow Ball Waste Rewind Web width: 330 mm Minimum printing length: 180 mm Maximum printing length: 510 mm Material thickness: 18 microns to 280 g/m² Pre-Register Autoregister Servo drive 2 per print head UNWIND MODULE: 1000 mm diameter capacity high performance air core 76mm (Lug type leaves) Servo braking system (closed loop) automatic tension adjustment Automatic web guide splice guide with automatic paper clamps, Operator control panel End of Roll detection (Options to add corona treater, web cleaning systems) INFEED ROLL: Servo drive with nip roll (closed loop tension control) FLEXO PRINTING MODULES: HMI (touch screen operator interface) 28 D.P / 1/8” helical gearing Servo driven impression roll Independent servo driven anilox roll & print cylinder Pre-register set up functions. Auto-register Cartridge based inking units Ink fountain tray with integral metering roll, doctor blades & side wipers. On run lateral & linear register adjustment Automatic plate throw off & constant anilox rotation INFRA-RED: Individual Eco-control dryers with variable 0 - 2Kw infrared lamps and forced air over substrate, plus progressive temperature increase with press speed & waste air vacuum / extraction SLITTING UNIT 2 x slitting unit - supplied with 5 x pneumatic crush slitters. (additional slitters optional) ROTARY DIE / SHEETER MODULE: 2 x Independent servo driven die station 1 x Independent servo driven die / sheeter station Each die unit is independently driven & equipped with heavy duty anvil roll Removable anvil for reverse cutting applications Lateral & linear manual register adjustment. WASTE REWIND TURRET: Servo driven rail mounted REWIND MODULE Direct torque motor drive Suitable for film to board products High performance air core Core 76mm (Lug type leaves) Roll Break detection Inside or outside rolls option Maximum reel diameter: 800 mm HMI OPERATOR CONTROLS: MAIN PLC touch-screen Operator Control Interface, with predetermined count, press speed, Emergency Stop, Rewind tension adjustment. Dryer controls, Pre-register, Data storage for job, materials, speeds, drying settings. Diagnostics error display system for easy problem solving. Focus remote service & support diagnosis
