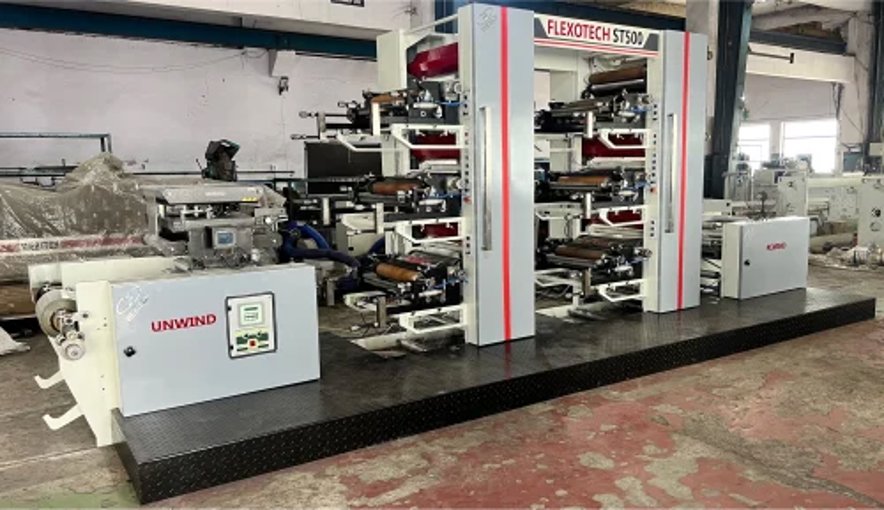

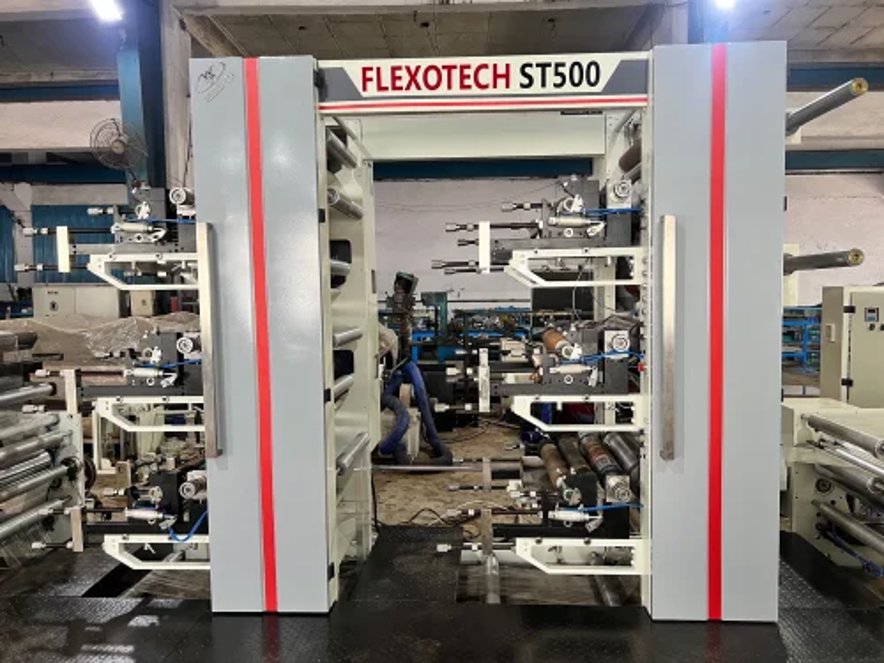

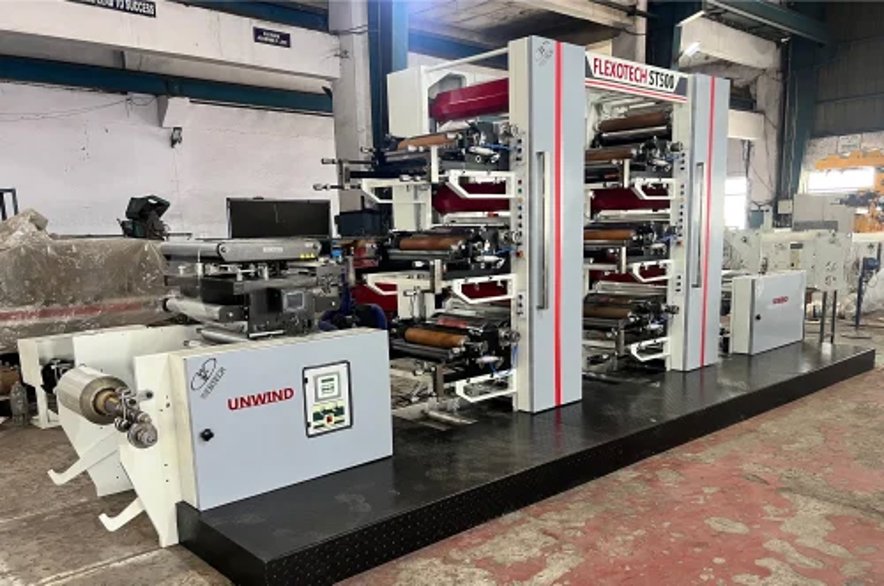

Stack Type High Quality Flexographic Printing Machine - Webtech
Stack Type High Quality Flexographic Printing Machine - Webtech
Stack Type High Quality Flexographic Printing Machine - Webtech
Features
| The machine designed is capable of printing from 12 microns onwards with great accuracy. It's a heavily built machine with a robust design on a complete gearbox system. No timing belts were used to ensure the accuracy and durability of the machine. |
Technical Specifications
| Maximum Cutting Speed | 100 m/min |
| Number Of Colors | 8 |
| Max Printing Length | 500-1000 (mm) |
| Machine Type | Automatic |
