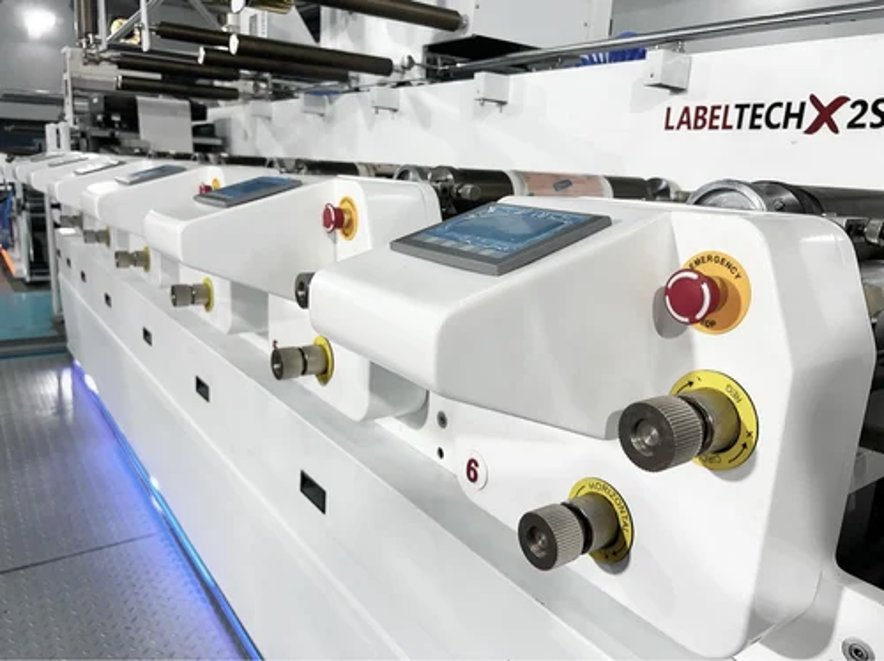

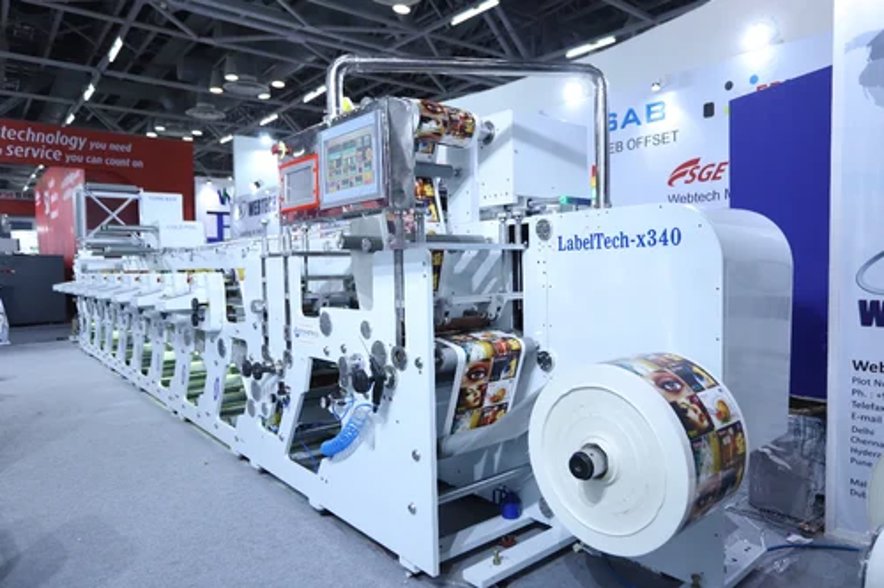

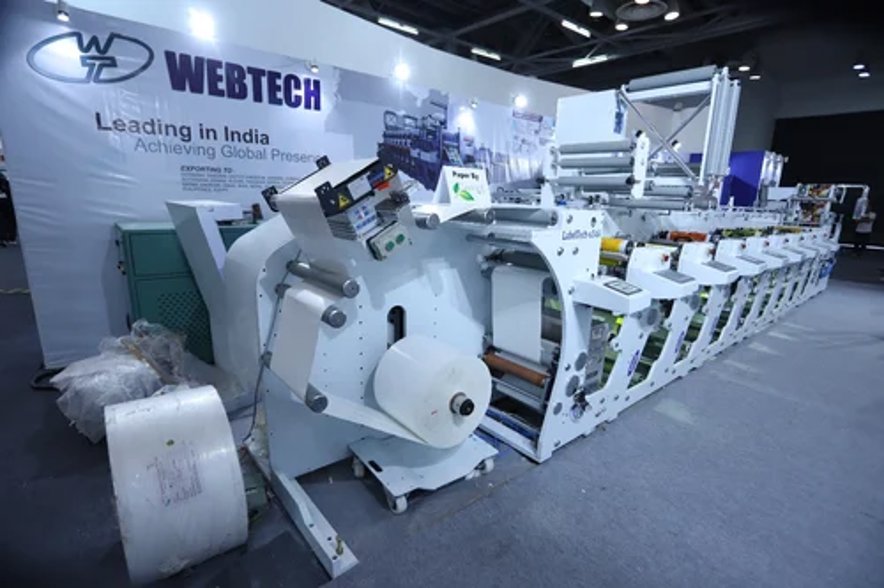

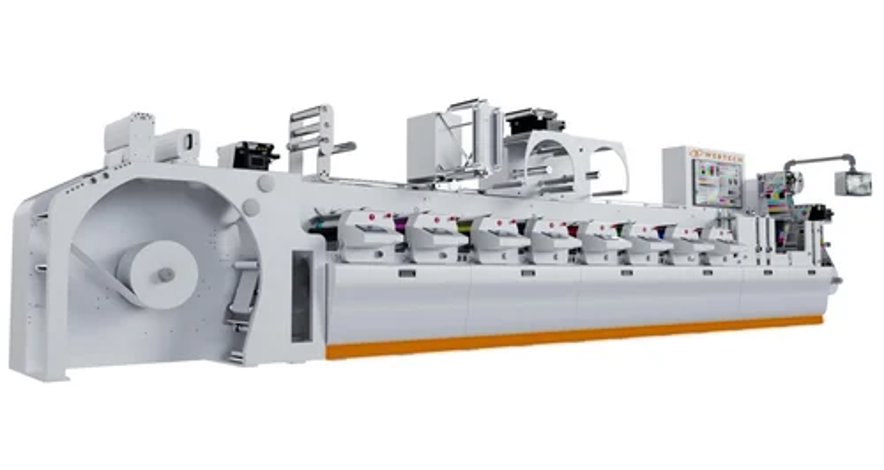

Multi Color Flexo Label Printing Press - Webtech
Multi Color Flexo Label Printing Press - Webtech
Multi Color Flexo Label Printing Press - Webtech
Features
| High Speed Multi Colors Flexographic Printing Press with perfect registration (upto 12 Colors). |
| Available in different sizes from 8"-18" working width in all 3 models : |
| ~Semi-Servo Model |
| ~Fully Servo Model (with Line Shaft) |
| ~Fully Servo Model with Auto Registration |
Technical Specifications
| Printing Speed | 150 m/min |
| Number Of Colors | more than 8 |
| Material | Mild Steel |
| Max Printing Length | 0-500 (mm) |
| Machine Type | Automatic |
