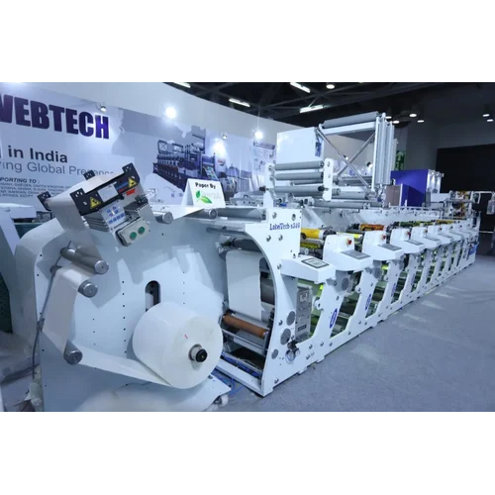

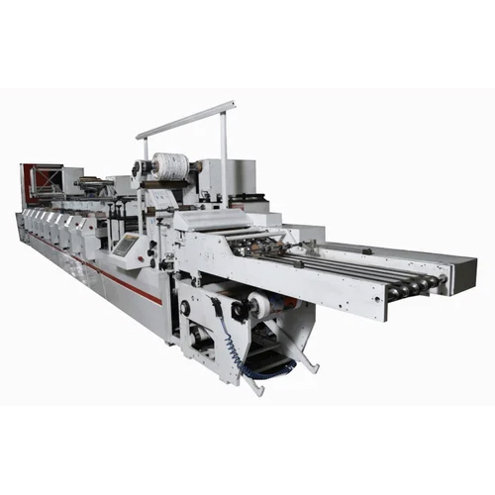

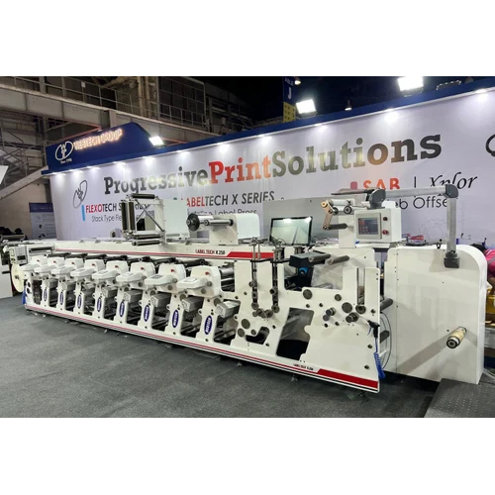

Fully Servo Controlled Narrow Web Flexographic Label - Webtech
Fully Servo Controlled Narrow Web Flexographic Label - Webtech
Fully Servo Controlled Narrow Web Flexographic Label - Webtech
Features
| High Efficiency |
| Control System - PLC Control |
| Machine Type- Automatic |
Technical Specifications
| Maximum Cutting Speed | 150 m/min |
| Color | 8 |
| Max Printing Length | 0-500 (mm) |
| Working Width | upto 60 inches |
| Printing Units | Upto 12 |
