Fingerless Corrugation Machine - Friends

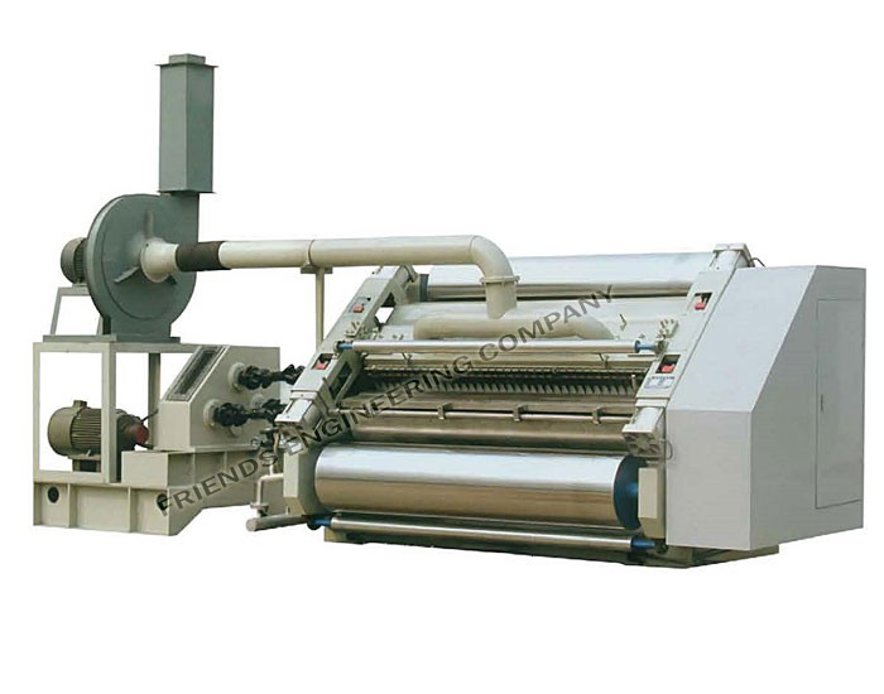

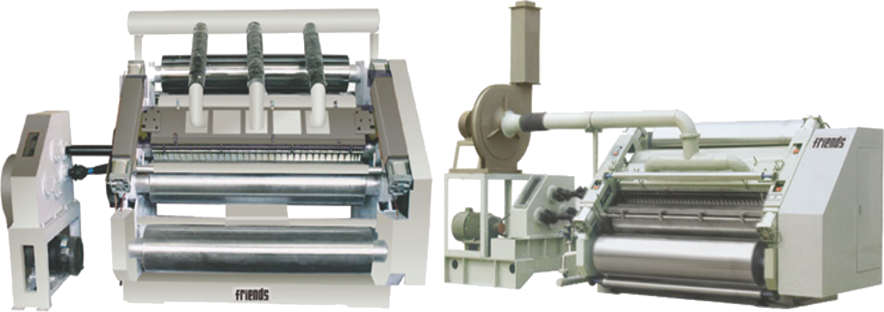

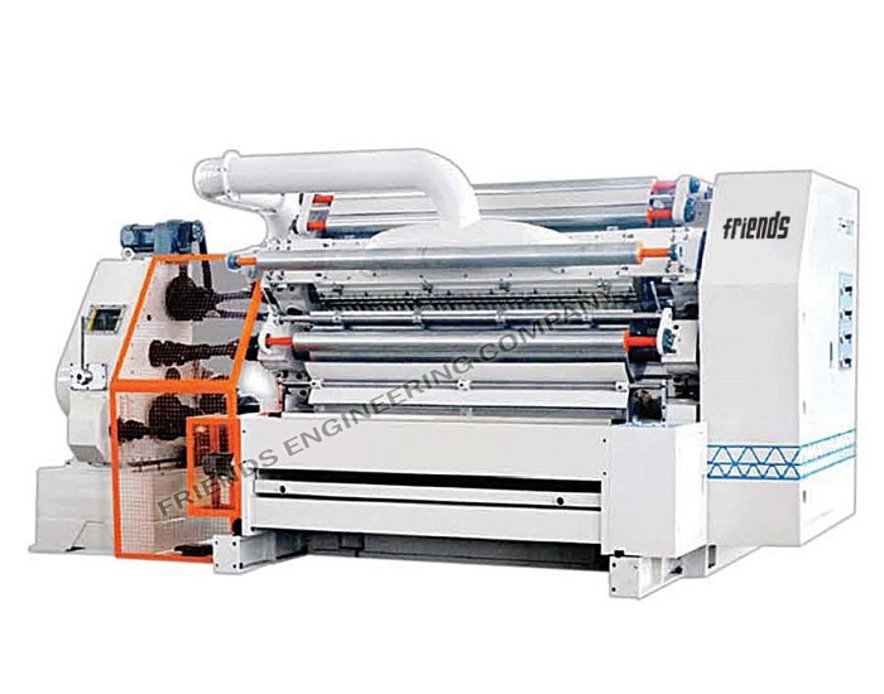

We are counted amongst the emerging manufacturers and exporters of Fingerless corrugation machine. The machine is designed with huge motorized reel stand that has a capacity of lifting 2-ton reel at a time. Suction guides the fluted paper in the fingerless corrugation machine. Because there are no slots in the gum applicator roll, it is continuous and uniform from one end to the other. The Fingerless Corrugation Machine is very Advanced and built with number of features and Automatic factors.

Features

There are no Adapter Marks on the Board
Because the fingerless machine lacks a brass adapter, there is no possibility of brass adapter marks on the board.
Compression for Increased Board Strength
Because there is a fixed flute height and diameter, the constricting strength of the board increases in a fingerless corrugation machine.
Increased BF (Bursting Factor) of the Board
As the board's contraction strength increases, so does its BF.

Technical Specifications

Machine Size (mm)FRIENDS 1400 - 2300
Roller Dia. (mm)280
Heating typeSteam / electric / oil
Corrugated roller material48CrMo alloy steel / 52CrMo alloy steel
Wallboard typeOblique / square
Transmission typeGear box / chain
