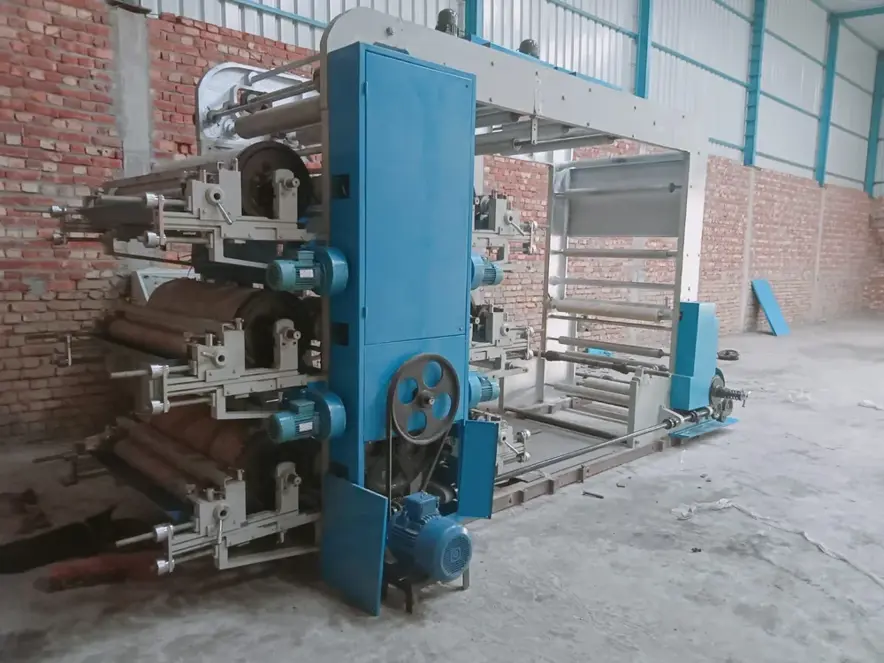

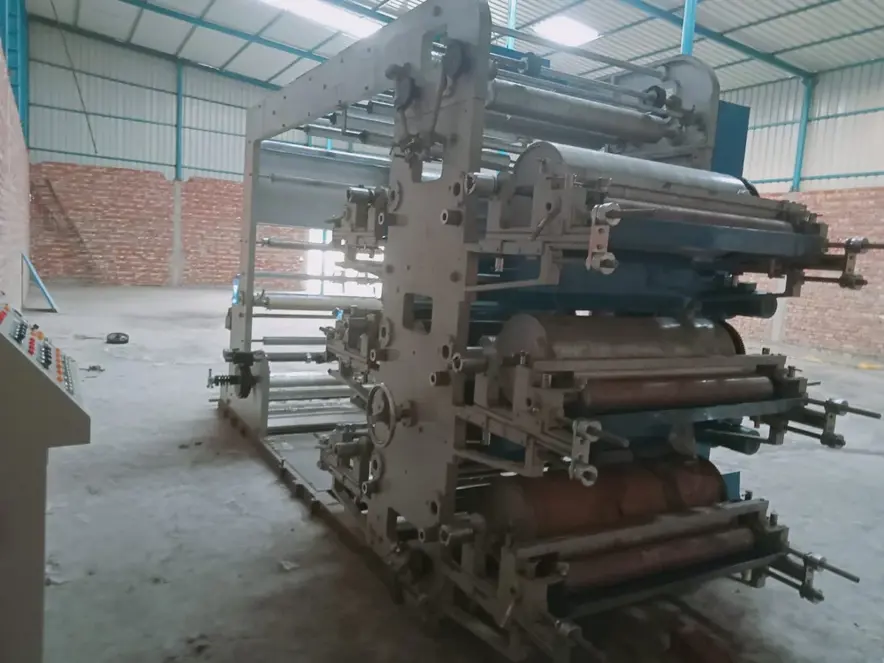

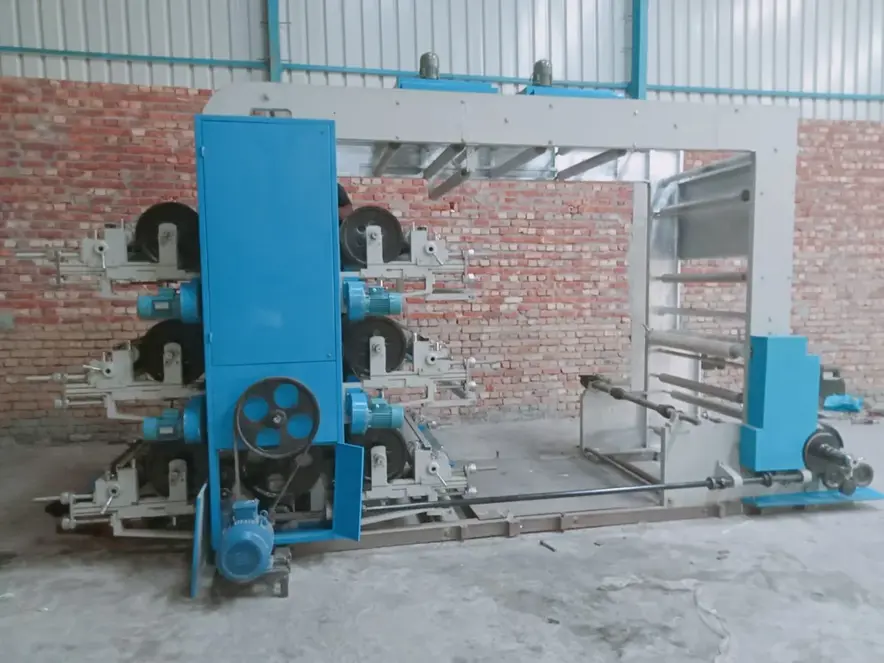

Non - Woven Flexo Printing Machine - Happy

Features

Unwinder
Unwind type-Single fixed shaft type or 2 shaft turret type unwinder Rewinder - 1000mm Unwind shaft-Manuall & Air shaft, tapper cone with solid shaft or shaft ness Tension controller-Manual & Fully automatic control system (A.C. & D.C. Motor)

Technical Specifications

Cylinder10" to 50" repeat
Rewinder1000mm
Number of colors1-8 colors

Application

Film,paper,hdpe,poly,non woven,non- woven fabric,woven sack etc

Financing

Easy Financing with Machine Dalal

Business and Machinery Loans available for this model.

Apply in minutes. Get approved fast. Flexible loan options to power your machinery purchase.

Apply Nowtrending_flat

Grow Your Machinery Sales

More Exposure. More Leads. More Machinery and Equipment Sales. Reach more Printers, Publishers and Packaging Manufacturers with Machine Dalal.Follow the link to explore Enterprise Services.

Learn Moretrending_flat
pencil

Keep Exploring

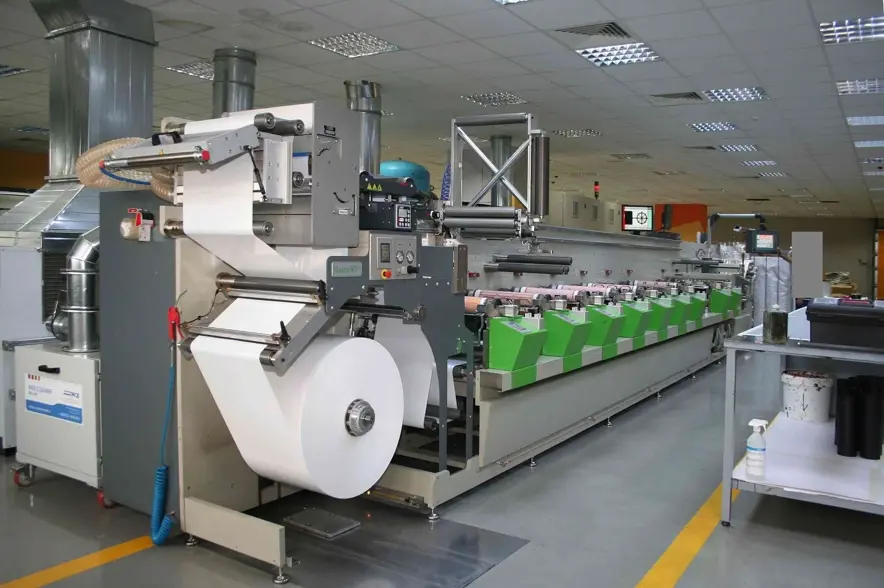

Flexographic equipment GiDue Master M5 430 10k

Master M5 430 10k

Flexographic equipment

ARC-Simotion Maximum width: 430 mm Minimum width: 280 mm Printing Width: 420 mm 10 Printing Stations Gear Pitch: Z = 3.175 mm Print Cylinder:  9" - 24" Machine Speed: 15 - 180 m/minute Unwinder Reel Diameter: 1000 mm Rewinder Reel Diameter: 1000 mm Unwind / Rewind Shaft Diameter: 76 mm Plate Thickness: 1,14 mm Back Thickness: 0,38 mm UV dryers on every section No die cut unit Fully servo driven machine and temperature control for unlimited substrates Includes: Front load unwinder with motorized roll lifting Unwinder unit for max. reel diameter 1.000 mm Automatic Web Guide Video inspection with manual camera movement Infeed group Vertical shear slitting unit including 3 circular blades and counter blades Back slitting unit for silicon paper (half cut) includes 2 crush knives Outfeed group 3 x Web break detectors 3 x antistatic bars Motorized rewinder (max. reel diameter 1.000 mm.) Pressure Roller on rewinder Servo-driven unwind shaft Servo-driven infeed and outfeed for automatic tension control ARC GiDue mark-to-cylinder register control hardware and software unit Automatic pre-register Manual lateral register adjustment Second pass register control Local touch screen panel on each printing and die-cutting station Main touch screen panel (PC MHI) Direct Internet Connection for remote SW and HW service and upgrades Flexo Printing Unit Description (1 servo motor for print cilinder, 1 servo motor for impression roller and ink train) Includes: 1340 mm base platforms (for up to 2 Flower flexographic heads) 27" Impression Chilled roller Chilling unit Servo Flower flexographic heads, with 2 servo motors Short Web Path Plexiglass cover for each printing unit Photocells for Gidue mark-to-cylinder register control manual cross register Sensor for automatic pre-register EC, New generation e-bricks stepless 140 W/cm GEW UV dryers lamps (includes main touch Accessories Kit (which includes): Printing accessories -              1 set of rubber rollers per color + 3 additional pcs. -              1 set of inktrays per color + 3 additional pcs. -              1 set of doctorblade holders per color + 3 additional pcs. Extended LTF Module on colors n. 9 and. 10 (Note: rail accessories not possible on LTF Unit) -              27" chilled, driven impression roller to suit UV drying lamp -              41 " driven chilled drum to suit IR + Hot Air drying system. -              IR Round with 18 IR Lamps 10  x   Print Tutor An "intelligent" camera automatically detects print register and pressure marks and performs completely automatic register adjustment, during the set-up and during production. It includes additional servo motor for lateral register adjustment (lenght register adjustment is built in servo driving motor of the print cylinder. Price per colour Deduction for die-cutting unit (No dies, No Organizer- only slitting) Dryers Additional Chilled Drums Additional Lower 41" driven chilled drum for extra UV lamp or hot air drying cassette. Air Dryers Hot air drying cassette with ultrasonic air solution, for water based inks high speed drying. Unwinder - Rewinder Additional upper rewinder Rail system for accessories Double front rail on the printing units web turn bar Web turn bar on rail (upper position) Useful Equipment Extended web path for varnish Additional ink tray with double rubber roller Miniorganizer 6" pneumatic shaft adapters Web Treaters Corona treaters: Vetaphone 5 kW; DG 33 fan; 6 bars double side head (application frame and installation included) Web Cleaners ACE double side suction cleaner Print tooling Unlimited substrates: labels, shrink sleeves, wrap around labels, flexible packaging, laminated tubes, pharma alufoil, yoghourt lids, lottery tickets, prepaid cards, sausage skins etc. Unlimited converting solutions: multi-web, in-line and off-line laminations, booklet labels, coupon labels etc. Unlimited print repeat sizes and number of printed colours (with second-pass optional equipment). Wide range of combination printing (gravure, silk screen, cold foil, hot-stamping, digital ink-jet). Self Shrinkable Sleeves, Wrap around labels, Pharma Aluminium foil, Yogourt Lids, Unsupported film packaging BOPP, PVC, PE, PET, LamiTube, Carboard, Sausage skins Lottery Tickets, pre-paid cards, tea bags

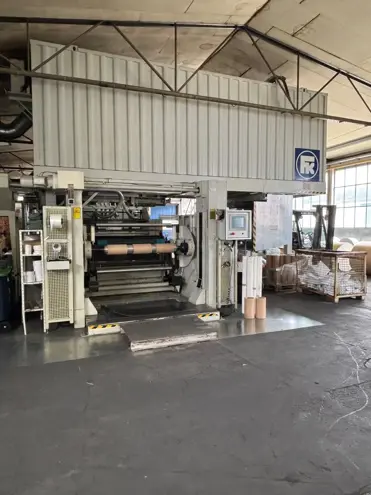

Flexographic equipment Fischer & Krecke Flexpress 16S-8
