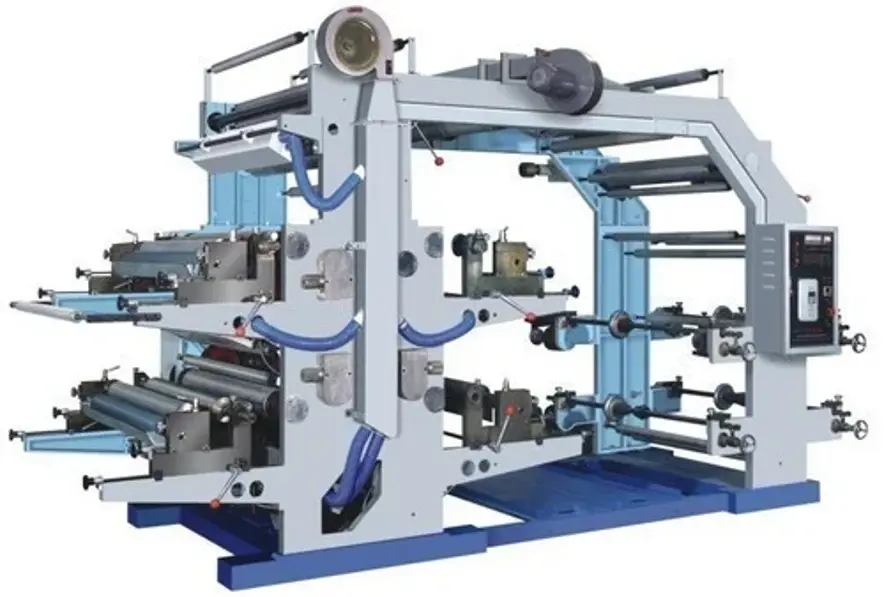

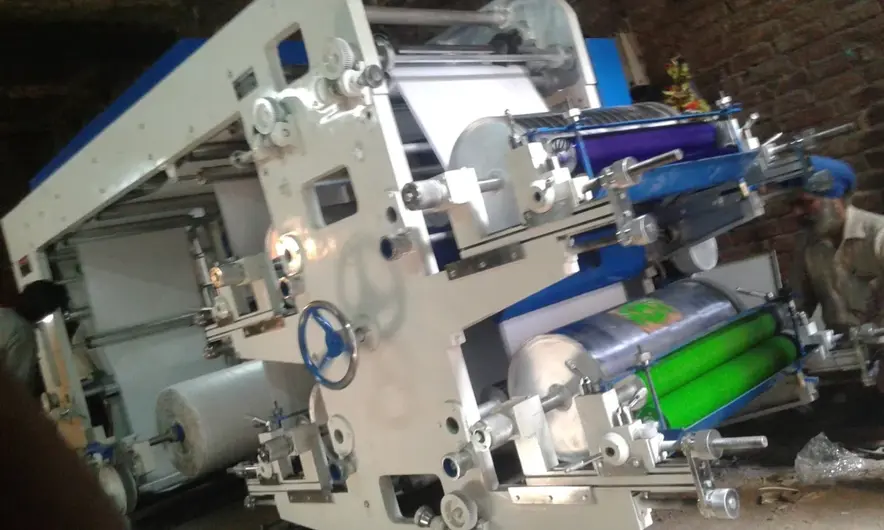

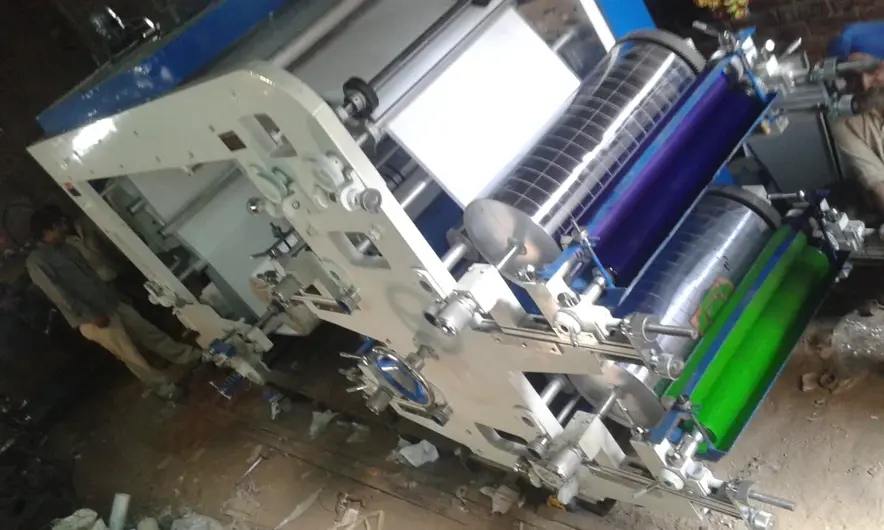

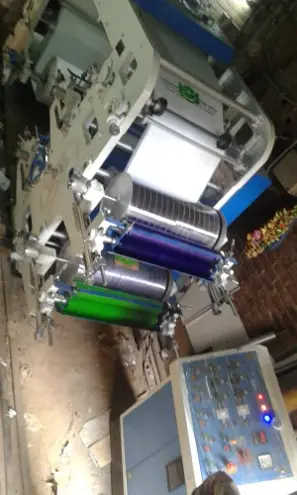

Multi Colour Flexo Printing - Happy
Multi Colour Flexo Printing - Happy
Multi Colour Flexo Printing - Happy
Features
| Unwinder |
| Unwind type- Single fixed shaft type or 2 shaft turret type unwinder |
| Rewinder- 1000 mm |
| Unwind shaft- Manual & air shaft, tapper cone with solid shaft or shaftness |
| Tension controller - Manual & fully automatic control system (A.C. & D.C. motor) |
| Printing Unit |
| Frame- Iron cast |
| Cylinder- 10" to 50" repeat |
| Chucking- Shaft with taper cone, one roll arm with pneumatic pressure system |
| Drying system- Each station half H.P.blower & two exhaust fan for perfect drawing |
| Ink system- Long & deep tray for fabric ait by steel |
| Rewind type- Single fixed shaft type or 2 shaft turret type |
| Re winder- 1000 mm |
| Rewind shaft- Manual & Air Shaft Tapper cone with solid shaft or shaftness |
Technical Specifications
| Web substrate | Film, paper, HDPE, poly, non woven, non- woven fabric and woven sack |
| Min Web width | 20 inch |
| Max Web width | 62 inch |
| Machine speed | Up to 150 m/min |
| Web roller | Aluminum rollers or steel rollers |
Easy Financing with Machine Dalal
Business and Machinery Loans available for this model.
Apply in minutes. Get approved fast. Flexible loan options to power your machinery purchase.
Apply Nowtrending_flatGrow Your Machinery Sales
More Exposure. More Leads. More Machinery and Equipment Sales. Reach more Printers, Publishers and Packaging Manufacturers with Machine Dalal.Follow the link to explore Enterprise Services.
Learn Moretrending_flat
Keep Exploring

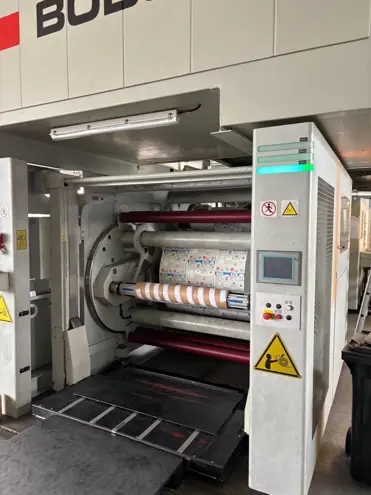

eFlex 330-2 S
Flexographic equipment
Full Servo Drive Technology EFLEX 330 – 2 S & helical gearing 8 Colour + Extended Die Module 2 x Die + Sheeter 8 X Lamp IR & Hot Air Drying Systems 8 x Lamp UV System + Chill Rolls & Chiller 2nd Pass Upgrade – Unwind Roll Lift Corona - Single Sided (2 Kw) Web Cleaner (2 Sided) with anti static Rail System Turn Bar with Delam-Relam (Rail mounted) Cold Foil (Rail Mounted) Sheet Stacker (Shingle Conveyor) Peel & Reveal Tint roll with air mandrel Antistatic unit 4 bars Rotary die adaptors (1 Set) Edge trim extraction (Venturi) - requires air supply Reverse rewind Video Inspection System (double side viewing E + L) FOCUS Video Plate mounter Platemate Upgrade Full Length Rail Rail Mounted Snow Ball Waste Rewind Web width: 330 mm Minimum printing length: 180 mm Maximum printing length: 510 mm Material thickness: 18 microns to 280 g/m² Pre-Register Autoregister Servo drive 2 per print head UNWIND MODULE: 1000 mm diameter capacity high performance air core 76mm (Lug type leaves) Servo braking system (closed loop) automatic tension adjustment Automatic web guide splice guide with automatic paper clamps, Operator control panel End of Roll detection (Options to add corona treater, web cleaning systems) INFEED ROLL: Servo drive with nip roll (closed loop tension control) FLEXO PRINTING MODULES: HMI (touch screen operator interface) 28 D.P / 1/8” helical gearing Servo driven impression roll Independent servo driven anilox roll & print cylinder Pre-register set up functions. Auto-register Cartridge based inking units Ink fountain tray with integral metering roll, doctor blades & side wipers. On run lateral & linear register adjustment Automatic plate throw off & constant anilox rotation INFRA-RED: Individual Eco-control dryers with variable 0 - 2Kw infrared lamps and forced air over substrate, plus progressive temperature increase with press speed & waste air vacuum / extraction SLITTING UNIT 2 x slitting unit - supplied with 5 x pneumatic crush slitters. (additional slitters optional) ROTARY DIE / SHEETER MODULE: 2 x Independent servo driven die station 1 x Independent servo driven die / sheeter station Each die unit is independently driven & equipped with heavy duty anvil roll Removable anvil for reverse cutting applications Lateral & linear manual register adjustment. WASTE REWIND TURRET: Servo driven rail mounted REWIND MODULE Direct torque motor drive Suitable for film to board products High performance air core Core 76mm (Lug type leaves) Roll Break detection Inside or outside rolls option Maximum reel diameter: 800 mm HMI OPERATOR CONTROLS: MAIN PLC touch-screen Operator Control Interface, with predetermined count, press speed, Emergency Stop, Rewind tension adjustment. Dryer controls, Pre-register, Data storage for job, materials, speeds, drying settings. Diagnostics error display system for easy problem solving. Focus remote service & support diagnosis

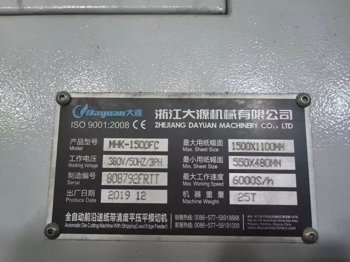

MHC-1500FC
