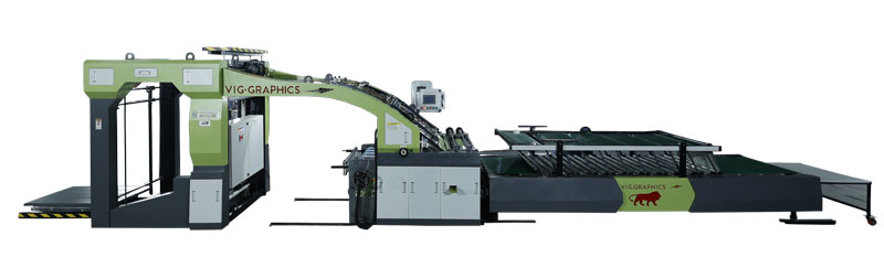

3 Ply Flute Laminator Machine VIG-1300 - Vig Graphics
3 Ply Flute Laminator Machine VIG-1300 - Vig Graphics
3 Ply Flute Laminator Machine VIG-1300 - Vig Graphics
Model Variant
VIG-1450
VIG-1600
About Machine
This 3 Ply Flute Laminator Machine is a high-speed laminating machine with an advanced motion controller that adjusts to paper sizes. Its 150m/minute maximum speed boosts job efficiency over traditional models. Unique positioning and correcting devices and a revolutionary side-lay device provide seamless operation at high rates. Continuous sheet supply is possible with an optional delivery unit turner.
Features
| High-Speed Operation The 3 Ply Flute Laminator Machine is engineered for maximum efficiency and is capable of handling large volumes of lamination at impressive speeds. This ensures that production lines keep moving smoothly and quickly, reducing downtime and increasing overall productivity. |
| Fully Automatic This 3 Ply Flute Laminator Machine is fully automated, requiring minimal manual intervention. Automation speeds up the process and reduces the likelihood of human error, ensuring consistent quality and performance. |
| Precision Lamination Equipped with advanced technology, the 3 Ply Flute Laminator Machine provides precise and accurate lamination. This results in a superior finished product with clean edges and a professional appearance that meets high-quality standards. |
| Robust Construction Built with high-quality materials and cutting-edge engineering, the 3 Ply Flute Laminator Machine is durable and reliable. It is designed to withstand the demands of continuous operation in a busy production environment, ensuring long-term performance with minimal maintenance. |
| Versatile Applications Suitable for a wide range of materials and packaging types, the 3 Ply Flute Laminator Machine offers versatility and flexibility. Whether you are laminating corrugated boxes, cartons, or other packaging products, this machine adapts to various needs with ease. |
Technical Specifications
| 3 Ply Flute Laminator Machine VIG-1300 | VIG-1450 | VIG-1600 | |
|---|---|---|---|
| Max Paper Size | 1300 mm x 1100 mm | 1450 mm x 1300 mm | 1600 mm x 1300 mm |
| Min Paper Size | 400 mm x 400 mm | 400 mm x 400 mm | 400 mm x 400 mm |
| Applicable Top Sheet | 180-500 gsm | - | - |
| Laminating Layers | Face Paper + Corrugated (2ply) = 3 ply | Face Paper + Corrugated (2ply) = 3 ply | Face Paper + Corrugated (2ply) = 3 ply |
| Applicable Bottom Paper | A,B,C,E,F Flute | A,B,C,E,F Flute | A,B,C,E,F Flute |
| Face & Bottom Paper Size | Width & Length of Face Paper 4mm larger than Bottom Paper | Width & Length of Face Paper 4mm larger than Bottom Paper | Width & Length of Face Paper 4mm larger than Bottom Paper |
| Overall Dimensions | 12 m x 2 m x 2.4 m | 15 m x 2.25 m x 2.4 m | 15 m x 2.50 m x 2.4 m |
