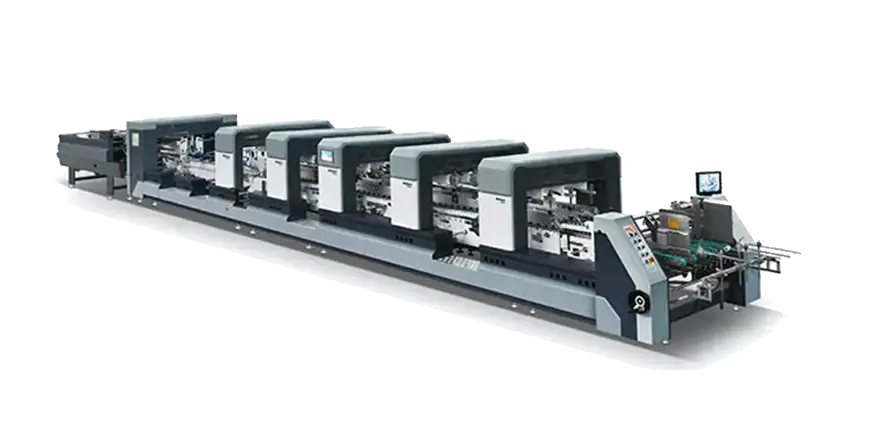

Machine Overview
Features
| Xl Series Speed Wave High Speed Machine combined with new advanced technology,controlled by memory system is another masterwork of Zhejiang New Luolan Machinery. It can store memories of different data of different shapes of boxes, which realizes automatic memory control rocking plate position and increases efficiency and accuracy. |
| The whole machine adopts servo motor controllers, hook-less structure for the crash lock bottom instead of traditional folder gluer. |
| Xl Series Speed Wave High Speed Machine is your best option for packaging. |
Technical Specifications
| Paper Material | Cardboard 210-800 gsm | A/B/E Corrugated |
| Max Speed | 400 m/min |
| Inching Speed | 10 m/min |
| Max Thickness of Folded Box | 12mm |
| Max Blank Width | 650 mm |
