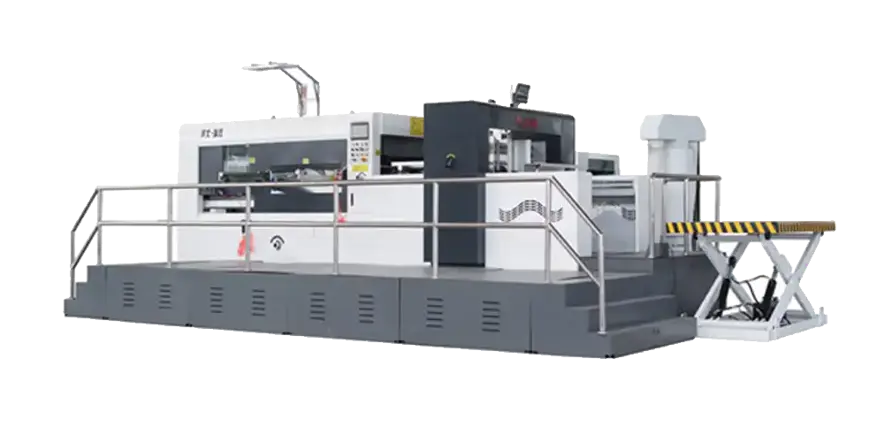

Lead Edge Feeder – MY 1300 - Vig Graphics
Lead Edge Feeder – MY 1300 - Vig Graphics
Lead Edge Feeder – MY 1300 - Vig Graphics
Unlock peak performance with VIG Graphics’ Lead Edge Feeder Machine MY 1300-1500-1650. Elevate your production efficiency and accuracy with our cutting-edge industrial solution.
Model Variant
MY-1500
MY-1650
Features
| Newly designed Lead Edge Feeder Machine with precise feeding system provides more accurate and positive feeding than ever |
| Die Cutting Part: Safety window & Pneumatic die-chase locking system. Air Floating device makes the Die-Cutting Plate go in & out easily for minimum wear out. |
| Electrical Part: All electrical parts are sourced from internationally recognized brands like Fuji Siemens, Schneider, Omron, Delta. |
| Pneumatic Clutch: Long life, low noise, brake quickly with strong driving force. Installed according to European Export Standards |
| Main Chain Drive: The main Reynold chain is imported from Britain that has minimum error of length, high tensile & anti-wear. |
| The Lead Edge Feeder Machine is equipped with different sensors to ensure machine and man safety. |
| High-strength gripper and advanced gripper opening system which can adopt to a variety of corrugated board. |
| Advance push and pull lay for registration can assure the die-cutting precision. |
| Combination of PLC and HMI makes the Lead Edge Feeder Machine consumer friendly. |
| Electrical panels are cooled by an air convection device to protect the electrical components and run steadily at a controlled temperature. |
Technical Specifications
| Lead Edge Feeder – MY 1300 | MY-1500 | MY-1650 | |
|---|---|---|---|
| Max Paper Size | 1320 x 940 mm | 1510 x 1120 mm | 1670 x 1200 mm |
| Min Paper Size | 450 x 450 mm | 450 x 450 mm | 500 x 550 mm |
| Max Die Cutting Size | 1300 x 920 mm | 1490 x 1100 mm | 1650 x 1180 mm |
| Max Die-Cutting Pressure | 350 N/cm2 | 380 N/cm2 | 400 N/cm2 |
| Applicable Corrugated Paper | 3-10 mm | 3-10 mm | 3-10 mm |
