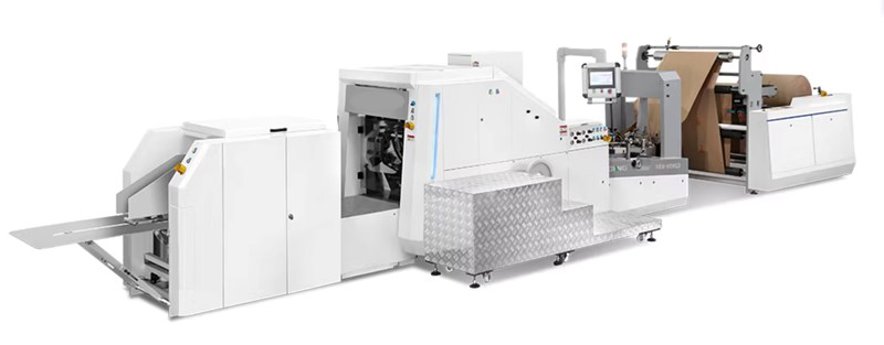

MASTER BAG 330 Roll-fed Paper Bag Machine (Without Handle)
Overview The MASTER BAG 330 is a state-of-the-art roll-fed machine designed for the efficient production of square bottom paper bags without handles. Utilizing a continuous roll of paper, this machine is optimal for high-volume manufacturing, catering especially to the demands of food industries and retail. With advanced automation features including paper feeding, tube forming, cutting, and bottom forming executed in a seamless online process, the MASTER BAG 330 not only maximizes productivity but also ensures significant labor cost reductions.
Precision and Efficiency Equipped with a photoelectric detector, the machine maintains precise control over the cutting length, guaranteeing high accuracy in each bag it produces. The system's capability to handle very thin paper at high speeds makes it particularly suitable for environments that require quick turnarounds without compromising on quality.
Control System The entire operation is governed by a sophisticated Japanese YASKAWA electronic control system. Managed through a servo motor, this system assures that each paper bag meets stringent quality standards with high stability and minimal maintenance needs. The result is a production line that is not only efficient but also reliable, making the MASTER B
About Machine
MASTER BAG 330 Roll-fed Paper Bag Machine (Without Handle)
Overview The MASTER BAG 330 is a state-of-the-art roll-fed machine designed for the efficient production of square bottom paper bags without handles. Utilizing a continuous roll of paper, this machine is optimal for high-volume manufacturing, catering especially to the demands of food industries and retail. With advanced automation features including paper feeding, tube forming, cutting, and bottom forming executed in a seamless online process, the MASTER BAG 330 not only maximizes productivity but also ensures significant labor cost reductions.
Precision and Efficiency Equipped with a photoelectric detector, the machine maintains precise control over the cutting length, guaranteeing high accuracy in each bag it produces. The system's capability to handle very thin paper at high speeds makes it particularly suitable for environments that require quick turnarounds without compromising on quality.
Control System The entire operation is governed by a sophisticated Japanese YASKAWA electronic control system. Managed through a servo motor, this system assures that each paper bag meets stringent quality standards with high stability and minimal maintenance needs. The result is a production line that is not only efficient but also reliable, making the MASTER B
Features
Roll feeding with an automatic lifting function simplifies the paper change process during production. |
Equipped with an unwind air shaft and a hydraulic cylinder lifting control system for seamless operation. |
Features an automatic tension control system to ensure consistent paper feeding. |
Technical Specifications
Paper Bag Dimensions | Length 280-530 mm, Width 150-330 mm, Bottom Width 70-180 mm |
aper Thickness Range | 60-150 gsm |
Maximum Production Speed | 220 bags/min |
Paper Roll Specifications | Width 470-1050 mm, Diameter up to 1500 mm |
Machine Power | 38V 8 kW |
Weight | 8000 kg |
Dimensions | 9.5 x 2.6 x 1.9 meters |
