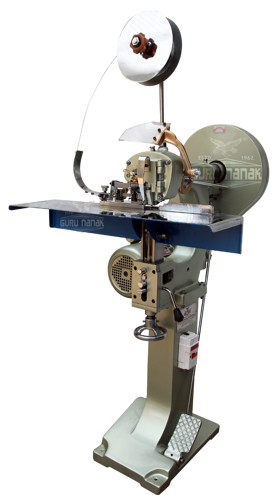

Power Operated Book Stitcher - Guru Nanak

Features

Thickness of Job Adjustable by wheel
Reversible Table for Side & Center Stitching
Suitable for Stitching of Note Books, Books, Magazines, Currency Notes, Pamphlets, etc
Stitching Capacity 2 mm to 16 mm
Spare parts are standardized & interchangeable
Power operated
Safety Guard
Wire: 21, 22, 24 & 26 SWG.

Technical Specifications

Stitching Capacity2 mm to 16 mm
Financing

Easy Financing with Machine Dalal

Business and Machinery Loans available for this model.

Apply in minutes. Get approved fast. Flexible loan options to power your machinery purchase.

Apply Nowtrending_flat

Grow Your Machinery Sales

More Exposure. More Leads. More Machinery and Equipment Sales. Reach more Printers, Publishers and Packaging Manufacturers with Machine Dalal.Follow the link to explore Enterprise Services.

Learn Moretrending_flat
pencil

Keep Exploring

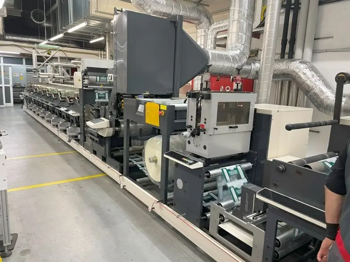

Flexo Nilpeter FA-6
