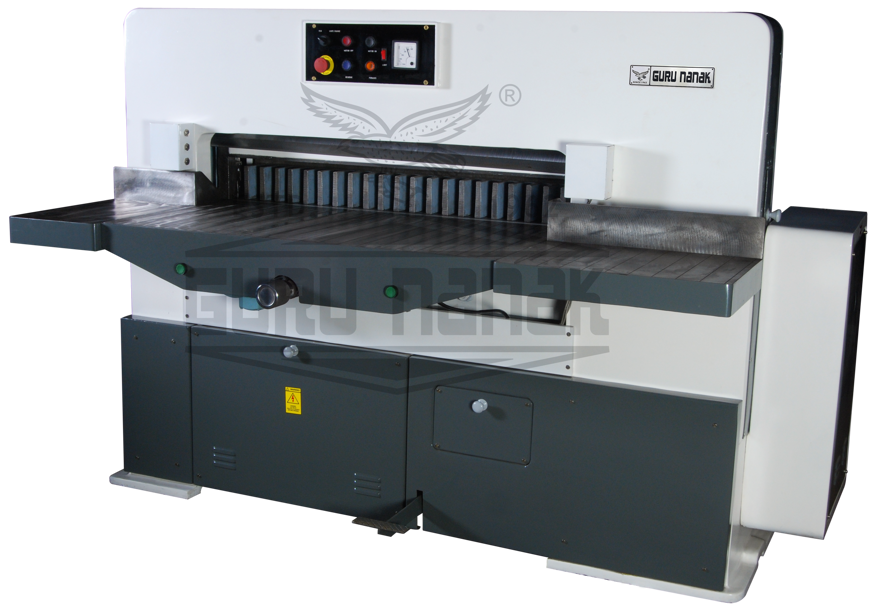

High Speed Automatic Paper Cutting Machine - Guru Nanak
High Speed Automatic Paper Cutting Machine - Guru Nanak
High Speed Automatic Paper Cutting Machine - Guru Nanak
Features
| Latest Automatic Hydraulic Paper Cutting Machine is provied which can be adjusted for various pressures to suit different kinds of stocks. |
| Electro-magnetic clutch requires little maintenance, oil leakage as in Hydraulic Clutches do not occur. |
| Safety of the operator : cut release by two hand safety engagement. The downward movement of knife is immediately stopped when |
| one of the cut-button is released. |
| High standard of operational safety devices are provided. |
| Extended side tables are provided for stocks in progress. |
| Power operated back gauge for forward and backward movement. |
| A hand wheel mechanism is provided for fine adjustment. |
| Cladded Steel Knives. |
| False Clamp Plate. |
| S.S Sheet on front of table. |
| Air table |
Technical Specifications
| Size | 26"(660mm) 33"(838mm) 36"(920mm) 43"(1092mm) |
| Maximum Cutting Width | 26"(660mm) 33"(838mm) 36"(920mm) 43"(1092mm) |
| Maximum Cutting Height | (100mm) 4½”(114mm) 4½”(114mm) 5"(127mm) |
| Power Required | 3KW 4.4KW 4.4KW 4.4KW |
| Knife Thickness | 3/8" 3/8" 3/8" 1/2" |
Easy Financing with Machine Dalal
Business and Machinery Loans available for this model.
Apply in minutes. Get approved fast. Flexible loan options to power your machinery purchase.
Apply Nowtrending_flatGrow Your Machinery Sales
More Exposure. More Leads. More Machinery and Equipment Sales. Reach more Printers, Publishers and Packaging Manufacturers with Machine Dalal.Follow the link to explore Enterprise Services.
Learn Moretrending_flat
Keep Exploring
XL75-4F
Sheet Fed / Offset
ZSRK
MC-80a

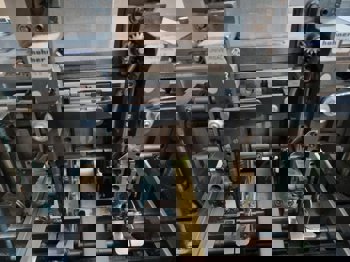

Collator and booklet production
