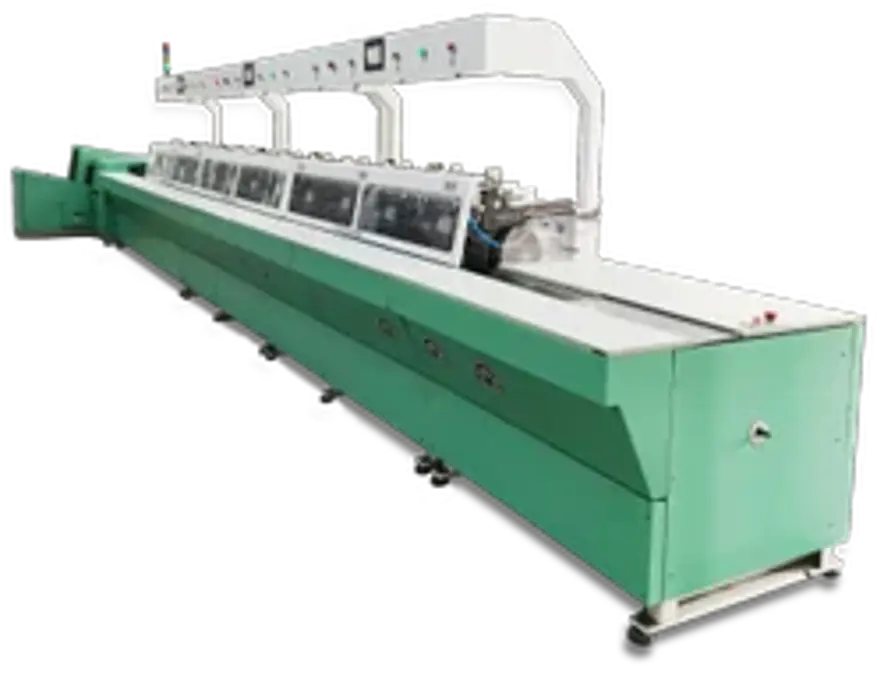

SIGNA 5K - Modular Signature Gathering Machine - Bindwel Technology
SIGNA 5K - Modular Signature Gathering Machine - Bindwel Technology
SIGNA 5K - Modular Signature Gathering Machine - Bindwel Technology
Features
| Sturdy design incorporating latest safety features PLC controlled system; Operations through touch screen HMI panel Offline gathering - Base model of 4 stations with delivery unit, expandable up to 20 stationsManual feed station – In case the number of signatures on a particular job is more than the number of gathering stations; the remaining gathered signatures can be fed into the manual feed stationSuction and gripper type of separation and pulling of signatures from the feed stationsError detection protocols provided:Missing signature detection through optical sensorsMultiple signature detection - Operator adjustable through electro-mechanical caliperLow pile level detection through proximity sensorSignatures misaligned either due to improper gathering or while transmission will also be detectedVertical zig zag stacking at delivery unitOptional side stitching (stitching heads from hohner® Germany) |
Technical Specifications
| Production Capacity | 5000 Books Per Hour |
| Power Consumption | 6 kW |
| Voltage | 415 V |
| Spine Length (Max) | 380 mm |
| Book Width (Min) | 110 mm |
| Maximum Pile Height | 150 mm |
| Distance Between Stitches | 70 mm (minimum) |
| Book Thickness | 50 mm |
| Book Width (Max) | 300 mm |
| Number Of Stations | 12 Stations |
| Spine Length (Min) | 140 mm |
