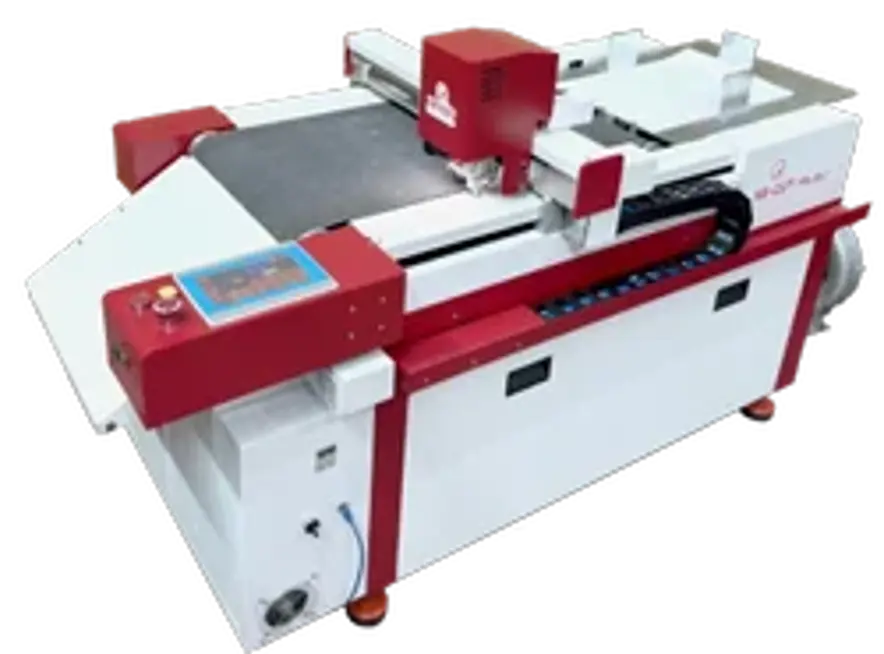

SigLoch XE-CUT - Digital Flatbed Cutting Table - Sample Maker - Bindwel Technology
SigLoch XE-CUT - Digital Flatbed Cutting Table - Sample Maker - Bindwel Technology
Machine Overview
Features
| XE-CÜT helps you shape your creative ideas into products, transforming your business to be more profitable. |
| Execute any shape with precision, opening up a world of creative possibilities. |
| Both for Short-Run Digital Print and Sample making in Offset Print. |
| Create unique, customized products that stand out from the crowd. |
| Cut, kiss-cut, perforate crease a wide range of materials with ease. |
| Go for rapid prototyping, mock ups and urgent jobs, thanks to very short turnarounds. |
| Demand much better value for your services, with the precision matching the creative vision. |
| Made in India: Proudly manufactured in India, offering local support, affordable spares, and timely service. |
| Advanced XY Robotics: Utilizes precise XY robotics technology for intricate cuts and complex shapes, exceeding the limitations of traditional methods. |
| Pneumatic Tool Control: Ensures consistent quality and precise cutting, kiss-cutting, and creasing with pneumatic tool control. |
Technical Specifications
| Automation Grade | Automatic |
| Power Consumption | 4 KW |
| Max. Cutting Speed | More than 1000 mm/s |
| Cutting Precision | +- 0.1 mm |
| Machine Dimension | 2600mm (L) x 950mm (W) x 1100mm (H) |
| Cut Precision | +- 0.1 mm |
| Thickness Millimetre | 100 gsm to 600 gsm |
